Professional
LINEAR COMPACT HIGH OUTPUT

LINEAR COMPACT HIGH OUTPUT

Choose your product version

600 10 W 3000 K

600 10 W 4000 K

900 15 W 3000 K

900 15 W 4000 K

1200 20 W 3000 K

1200 20 W 4000 K

1500 25 W 3000 K

1500 25 W 4000 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN COMP HO 600 10 W 3000 K 10.00 W 100000 140 ° 1000 lm No
LN COMP HO 600 10 W 4000 K 10.00 W 100000 140 ° 1000 lm No
LN COMP HO 900 15 W 3000 K 15.00 W 100000 140 ° 1500 lm No
LN COMP HO 900 15 W 4000 K 15.00 W 100000 140 ° 1500 lm No
LN COMP HO 1200 20 W 3000 K 20.00 W 100000 140 ° 2000 lm No
LN COMP HO 1200 20 W 4000 K 20.00 W 100000 140 ° 2000 lm No
LN COMP HO 1500 25 W 3000 K 25.00 W 100000 140 ° 2500 lm No
LN COMP HO 1500 25 W 4000 K 25.00 W 100000 140 ° 2500 lm No


LN COMP HO 600 10 W 3000 K

Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection of up to 10 luminaires in a line
  • High lumen output up to 2500 lm
  • Seamless connection without visible cables when connected to Linear Compact Batten
  • Low flicker light thanks to special electronic control gear
  • Angled connection possible with included cable
  • Flexible installation in 2 different angles with 2 different mounting options
  • Flexible application due to a wide range of available lengths of 600 to 1500 mm
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 0.13 A
Inrush current 10 A
Inrush current time Th50 150 µs
Max. number of luminaires per miniature circuit breaker B16 60
Max. number of luminaires per miniature circuit breaker C10 48
Max. number of luminaires per miniature circuit breaker C16 76
Power factor λ > 0.5
Total harmonic distortion 89 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1000 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 140 °

Dimensions & Weight

Length 573.00 mm
Height 36.00 mm
Width 24.00 mm
Product weight 300.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 110 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00005-V01.01-EN

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection of up to 10 luminaires in a line
  • High lumen output up to 2500 lm
  • Seamless connection without visible cables when connected to Linear Compact Batten
  • Low flicker light thanks to special electronic control gear
  • Angled connection possible with included cable
  • Flexible installation in 2 different angles with 2 different mounting options
  • Flexible application due to a wide range of available lengths of 600 to 1500 mm
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Accent lighting
  • Public areas
  • Cove lighting
  • Shelves, furniture integration or under cabinet mounting
  • Seamless linear lighting
Product features
  • Replacement for traditional T8 or T5 luminaires
  • Up to 10 luminaires connectable
  • Translucent end caps
  • Linear Compact Batten connectable at the beginning of the row with wiring on back side
  • Versions with luminous flux 1000…2500 lm available
  • 4 different lengths available
  • High luminous efficacy: up to 100 lm/W
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Equipped with power plug, cable connector and line adapter for connecting further luminaires
  • Mounting material for wall and ceiling installations included
Safety advice
  • All electrical connections must be made by a qualified person.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075106277 Folding box
1		 780 mm x 40 mm x 30 mm 364.00 g 0.94 dm³
4058075106284 Shipping box
25		 818 mm x 233 mm x 180 mm 8070.00 g 34.31 dm³
User Instruction / Safety Instructions

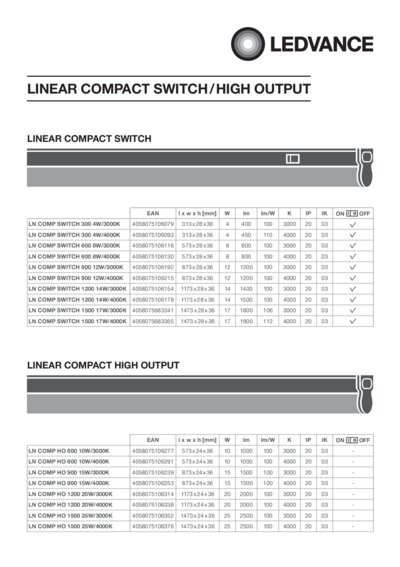

Linear_Compact_Switch_ UI PDF (2.33 MB)
On-Pack-Info

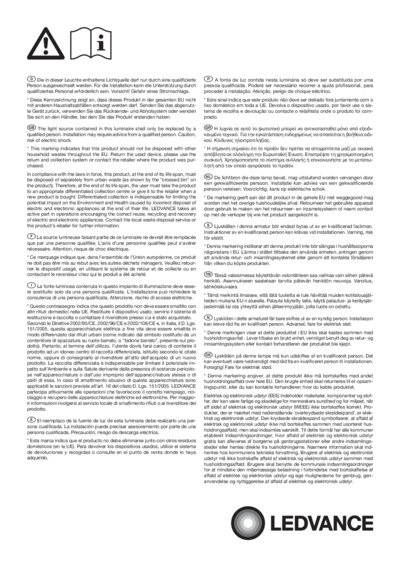

Legal Insert Linear Co mpact PDF (1.57 MB)
Legal information
LS Insert LN COMP HO a nd SWITCH PDF (1.8 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

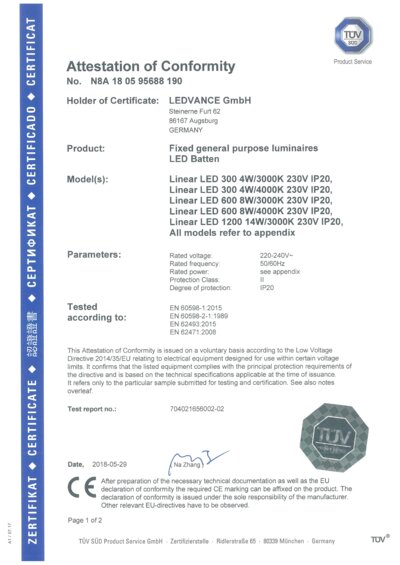

Attestation of Conform ity Linear Comp PDF (1.18 MB)
Declarations of conformity

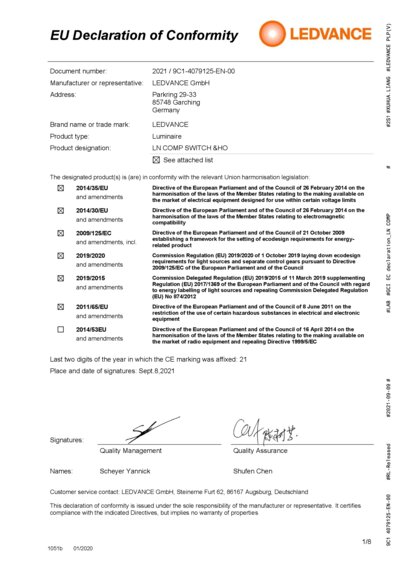

EU Declaration of Conf ormity Linear Comp Sw itch and HO LEDV PDF (300.16 KB)

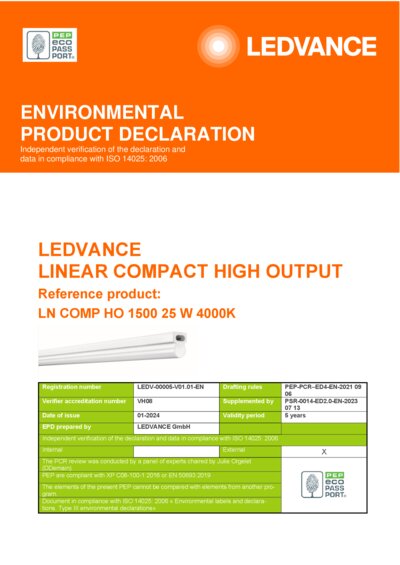

EPD
PEP Ecopassport LN COM P HO PDF (638.36 KB)

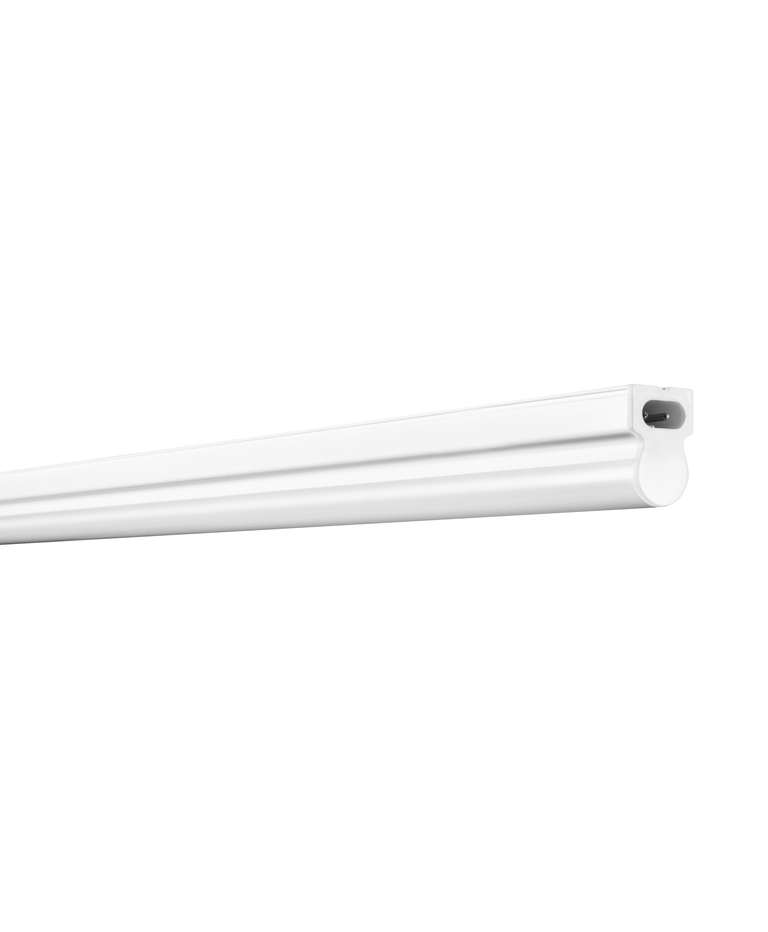

Product Image, Spacial, White BG
707955_LEDVANCE Linear LED 600 Power TIF (37.99 MB)
Product line drawing with letters
LN COMP HO 600 SVG (7.41 KB)
Product line drawing with numbers
LN COMP HO 600 SVG (7.34 KB)
Product line drawing - technical
LN COMP HO 600 SVG (4.63 KB)

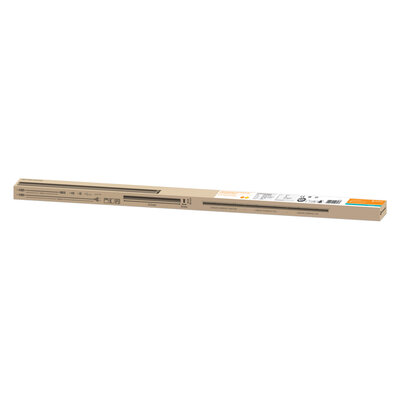

Packaging image, spacial
LINEAR COMPACT HIGH OU TPUT 600 10 W 3000 K M ich Side JPG (870.42 KB)
Catalog info 6
Linear Compact Switch HO SVG (22.99 KB)
IES file (IES)
LN COMP HO 600 10W 300 0K IP20 IES (5.95 KB)
LDT file (Eulumdat)
LN COMP HO 600 10W 300 0K IP20 LDT (6.28 KB)
ULD file (DIALux)
LINEARCOMPACTHIGHOUTPU T60010W3000K ULD (313.34 KB)
ROLF file (RELUX)
LN COMP HO 600 ROLF (259.64 KB)
UGR file (UGR table)
LN COMP HO 600 10W 300 0K IP20 PNG (63.09 KB)
LDC typ polar
LN COMP HO 600 10W 300 0K IP20 SVG (440.22 KB)
BIM_Revit_3D
Linear Compact ZIP (8.68 MB)
CAD_STEP_3D
LN COMP HO 600 STEP (151.12 KB)
Tender documents
LINEAR COMPACT HIGH OU TPUT 600 10 W 3000 K-E N TXT (1.6 KB)
Video

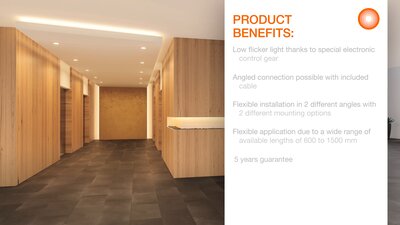

LEDVANCE Linear LED CO MP HO EN MP4 (81.23 MB)
Video

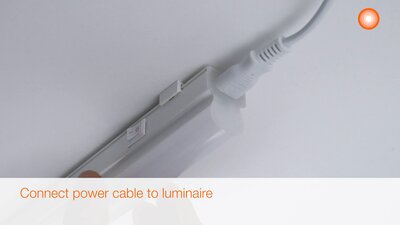

LEDVANCE LUM Installat ion Video EN Linear Co mpact MP4 (152.67 MB)
EAN SEG number STK number EFO number ELDAS number
4058075106277 7016195 4125335 3241027 941000240
