LINEAR COMPACT SWITCH

LINEAR COMPACT SWITCH

Choose your product version

300 4 W 3000 K

300 4 W 4000 K

600 8 W 3000 K

600 8 W 4000 K

900 12 W 3000 K

900 12 W 4000 K

1200 14 W 3000 K

1200 14 W 4000 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN COMP SWITCH 300 4 W 3000 K 4.00 W 100000 140 ° 400 lm No
LN COMP SWITCH 300 4 W 4000 K 4.00 W 100000 140 ° 450 lm No
LN COMP SWITCH 600 8 W 3000 K 8.00 W 100000 140 ° 800 lm No
LN COMP SWITCH 600 8 W 4000 K 8.00 W 100000 140 ° 800 lm No
LN COMP SWITCH 900 12 W 3000 K 12.00 W 100000 140 ° 1200 lm No
LN COMP SWITCH 900 12 W 4000 K 12.00 W 100000 140 ° 1200 lm No
LN COMP SWITCH 1200 14 W 3000 K 14.00 W 100000 140 ° 1400 lm No
LN COMP SWITCH 1200 14 W 4000 K 14.00 W 100000 140 ° 1400 lm No


LN COMP SWITCH 300 4 W 3000 K

Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection of up to 10 luminaires in a line
  • Handy switch directly installed on the luminaire
  • Low flicker light thanks to special electronic control gear
  • Flexible installation in 2 different angles with 2 different mounting options
  • Flexible application due to a wide range of available lengths of 300 to 1500 mm.
  • Angled connection possible with included cable
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 0.03 A
Inrush current 15.0 A
Inrush current time Th50 150 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 32
Max. number of luminaires per miniature circuit breaker C16 51
Power factor λ > 0.5
Total harmonic distortion 88 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 400 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 140 °

Dimensions & Weight

Length 313.00 mm
Height 36.00 mm
Width 28.00 mm
Product weight 119.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 50 mA

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00018-V01.01-EN

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection of up to 10 luminaires in a line
  • Handy switch directly installed on the luminaire
  • Low flicker light thanks to special electronic control gear
  • Flexible installation in 2 different angles with 2 different mounting options
  • Flexible application due to a wide range of available lengths of 300 to 1500 mm.
  • Angled connection possible with included cable
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Accent lighting
  • Public areas
  • Cove lighting
  • Shelves, furniture integration or under cabinet mounting
  • Seamless linear lighting
Product features
  • Built-in switch
  • Up to 10 luminaires connectable
  • Translucent end caps
  • Versions with luminous flux 400…1900 lm available
  • 5 different lengths available
  • High luminous efficacy: up to 112 lm/W
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Equipped with power plug, cable connector and line adapter for connecting further luminaires
  • Mounting material for wall and ceiling installations included
Safety advice
  • All electrical connections must be made by a qualified person.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075106079 Folding box
1		 42 mm x 29 mm x 580 mm 167.00 g 0.71 dm³
4058075106086 Shipping box
25		 558 mm x 223 mm x 180 mm 6550.00 g 22.40 dm³
User Instruction / Safety Instructions
Linear_Compact_Switch_ UI PDF (2.33 MB)
On-Pack-Info
Legal Insert Linear Co mpact PDF (1.57 MB)
Legal information
LS Insert LN COMP HO a nd SWITCH PDF (1.8 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
EU Declaration of Conf ormity Linear Comp Sw itch and HO LEDV PDF (300.16 KB)
Declarations of conformity
Attestation of Conform ity Linear Comp PDF (1.18 MB)

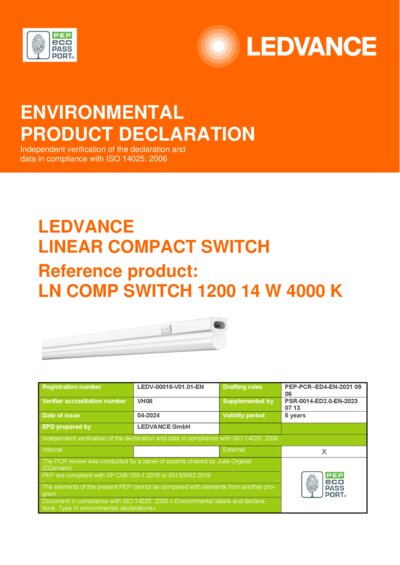

EPD
ENVIRONMENTAL PRODUCT DECLARATION LINEAR COM PACT SWITCH PDF (620.78 KB)

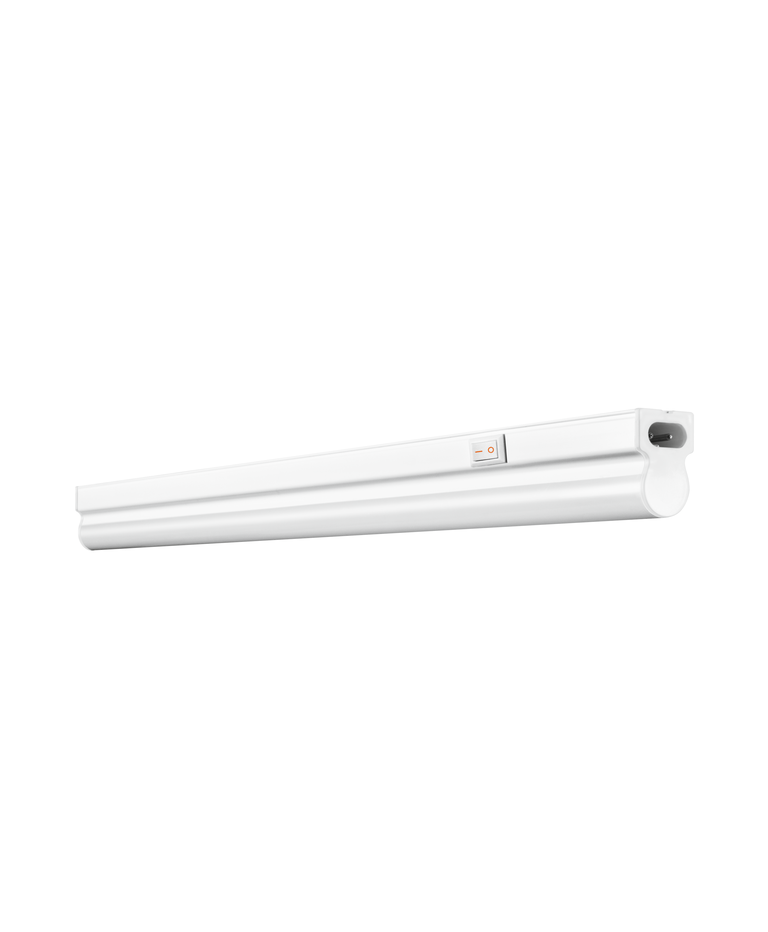

Product Image, Spacial, White BG
707958_LEDVANCE Linear LED 300 TIF (37.99 MB)
Product line drawing with letters
LN COMP SWITCH 300 SVG (8.54 KB)
Product line drawing with numbers
LN COMP SWITCH 300 SVG (14.88 KB)
Product line drawing - technical
LN COMP SWITCH 300 SVG (5.75 KB)

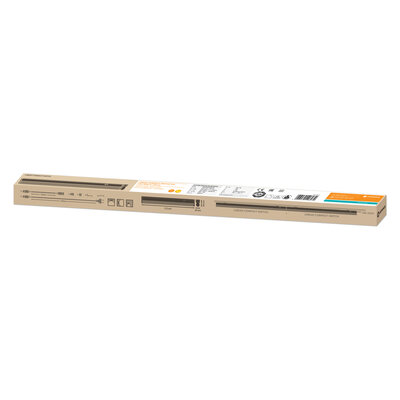

Packaging image, spacial
LINEAR COMPACT SWITCH 300 4 W 3000 K Mich Si de JPG (952.72 KB)
Catalog info 1
Linear Compact Switch HO SVG (13.23 KB)
Catalog info 2
Linear Compact Switch HO SVG (109.29 KB)
Catalog info 3
Linear Compact Switch HO SVG (171.18 KB)
Catalog info 6
Linear Compact Switch HO SVG (23.01 KB)
IES file (IES)
LN COMP SWITCH 300 4W 3000K 230V IP20 IES (5.6 KB)
LDT file (Eulumdat)
LN COMP SWITCH 300 4W 3000K 230V IP20 LDT (6.29 KB)
ULD file (DIALux)
LINEARCOMPACTSWITCH300 4W3000K ULD (266.24 KB)
ROLF file (RELUX)
LN COMP SWITCH 300 ROLF (125.83 KB)
UGR file (UGR table)
LN COMP SWITCH 300 4W 3000K 230V IP20 PNG (62.6 KB)
LDC typ polar
LN COMP SWITCH 300 4W 3000K 230V IP20 SVG (442.48 KB)
BIM_Revit_3D
Linear Compact ZIP (8.68 MB)
CAD_STEP_3D
LN COMP SWITCH 300 STEP (188.05 KB)
Tender documents
LINEAR COMPACT SWITCH 300 4 W 3000 K-EN TXT (1.61 KB)

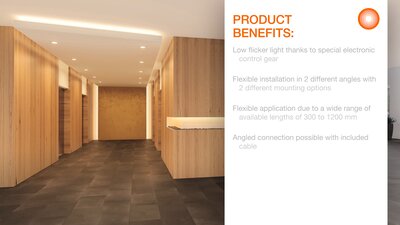

Video
