Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LN UO 1200 25 W 4000 K | 25.00 W | 50000 | 110 ° | 2950 lm | No |
| LN UO 1500 30 W 3000 K | 30.00 W | 100000 | 110 ° | 3500 lm | No |
| LN UO 1500 30 W 4000 K | 30.00 W | 100000 | 110 ° | 3800 lm | No |
| LN UO 1200 33 W 3000 K | 33.00 W | 50000 | 110 ° | 3700 lm | No |
| LN UO 1200 33 W 4000 K | 33.00 W | 50000 | 110 ° | 4000 lm | No |
| LN UO 1500 46 W 3000 K | 46.00 W | 100000 | 110 ° | 5000 lm | No |
| LN UO 1500 46 W 4000 K | 46.00 W | 100000 | 110 ° | 5500 lm | No |
| LN UO 1500 60 W 3000 K | 60.00 W | 100000 | 110 ° | 6600 lm | No |
| LN UO 1500 60 W 4000 K | 60.00 W | 100000 | 110 ° | 7100 lm | No |
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 115 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 41 |
| Max. number of luminaires per miniature circuit breaker C10 | 33 |
| Max. number of luminaires per miniature circuit breaker C16 | 53 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 2950 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
| Length | 1168.00 mm |
| Height | 74.00 mm |
| Width | 62.00 mm |
| Product weight | 1260.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

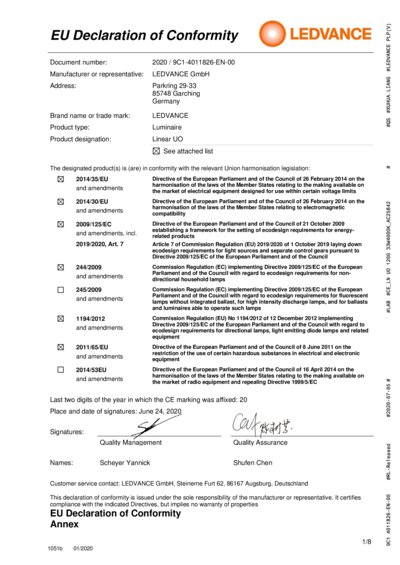

| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075479951 | Folding box 1 |
69 mm x 1,174 mm x 77 mm | 1345.00 g | 6.24 dm³ |
| 4058075479968 | Shipping box 6 |
1,184 mm x 225 mm x 170 mm | 9320.00 g | 45.29 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075479951 | 7019250 | 4315613 | 3202846 | 941304430 |
