Choose your product version

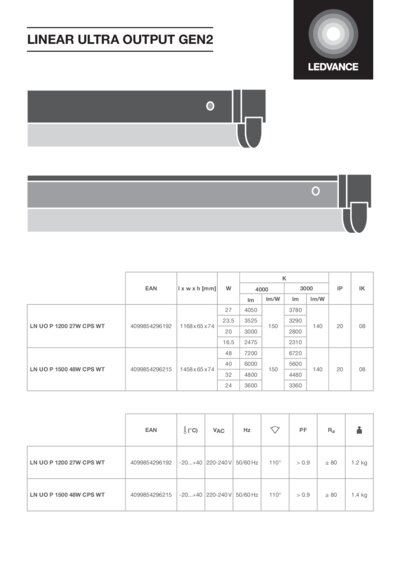

| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

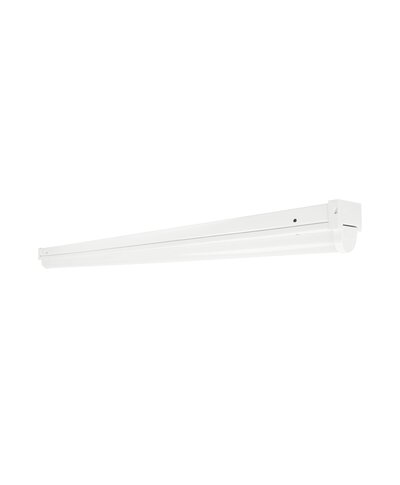

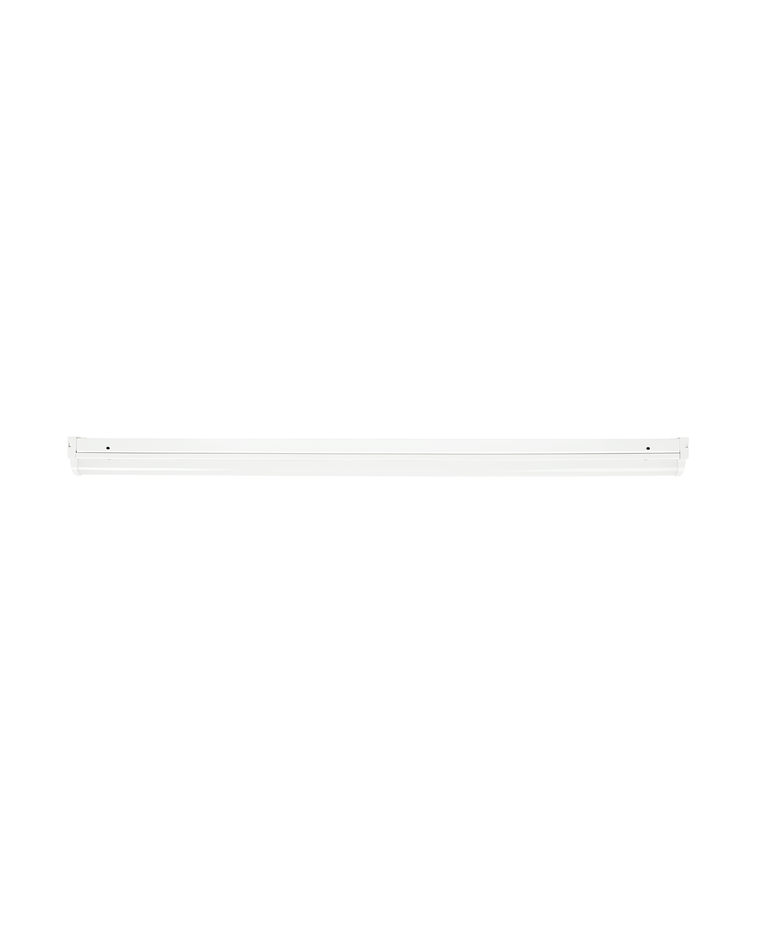

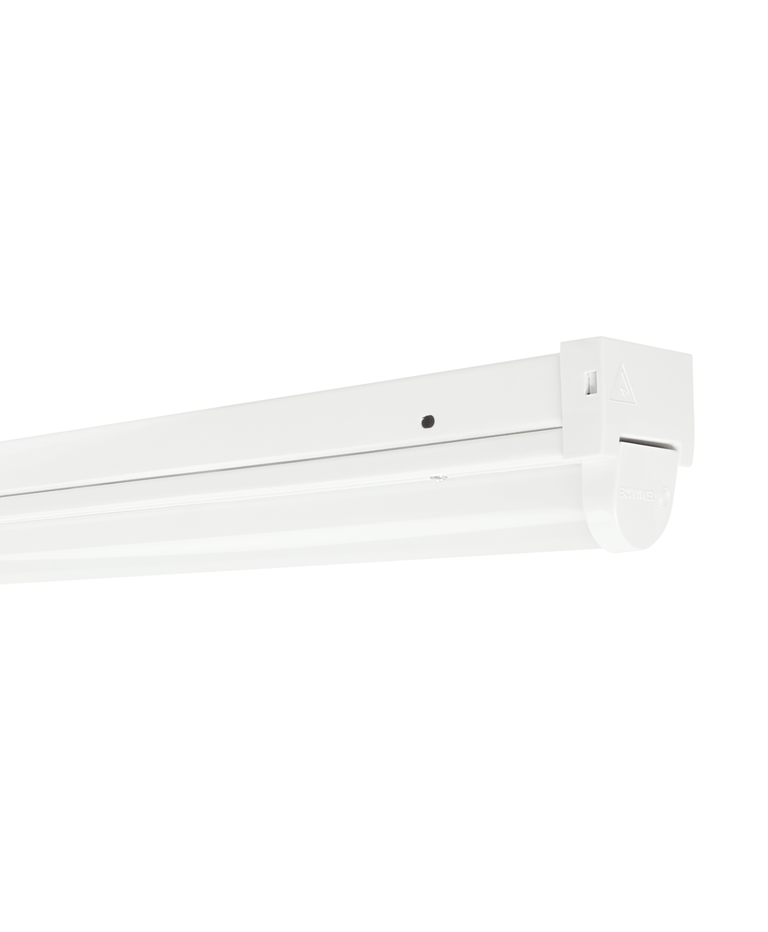

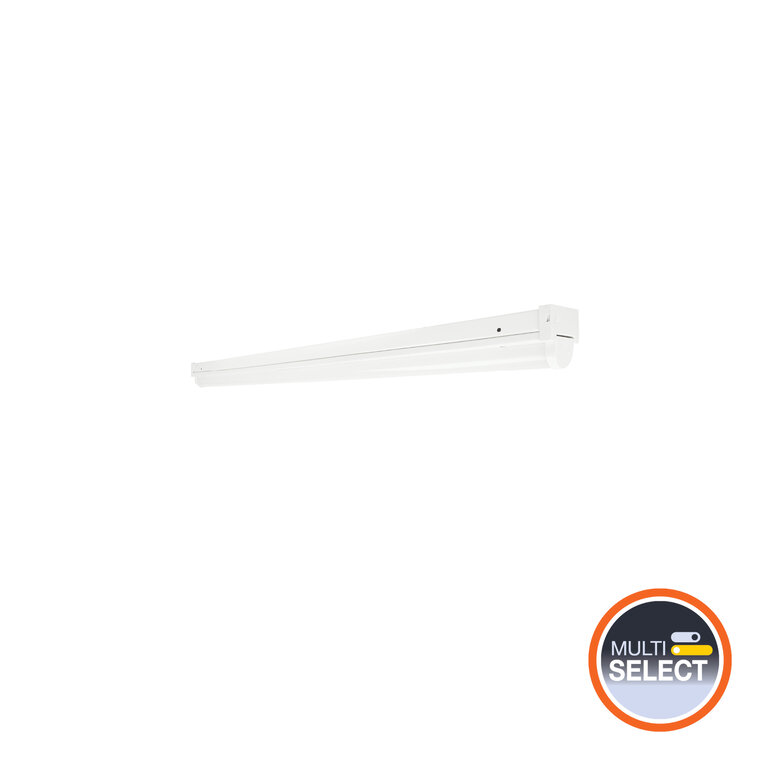

| LN UO P 1200 27W CPS WT | 27 W / 23.5 W / 20.0 W / 16.5 W | 50000 | 110 ° | 4050 lm / 3525 lm / 3000 lm / 2475 lm | No |

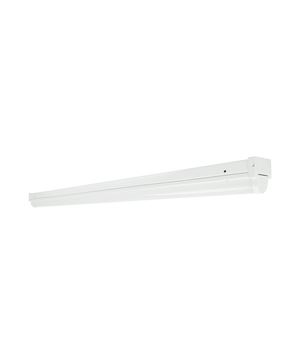

| LN UO P 1500 48W CPS WT | 48 W / 40 W / 32 W / 24 W | 50000 | 110 ° | 7200 lm / 6000 lm / 4800 lm / 3600 lm | No |
| Nominal wattage | 27 W / 23.5 W / 20.0 W / 16.5 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 123…108…96…83 mA |
| Inrush current | 24 A |
| Inrush current time Th50 | 120 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Max. number of luminaires per miniature circuit breaker C10 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 33 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 4050 lm / 3525 lm / 3000 lm / 2475 lm 1) |
| Luminous efficacy | 150 lm/W 2) |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
1) 3780lm / 3290lm / 2800lm / 2310lm @3000K
2) 140 lm/W @3000K
| Length | 1168.00 mm |
| Height | 74.00 mm |
| Width | 65.00 mm |
| Product weight | 1200.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |

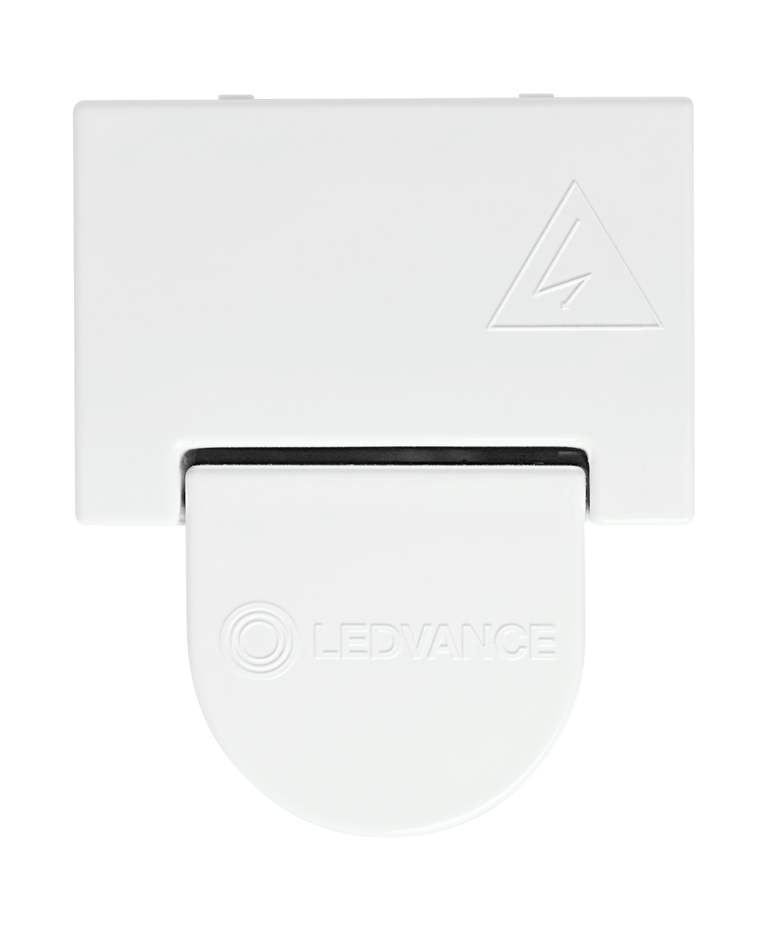

| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 88000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, CB, ENEC, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |

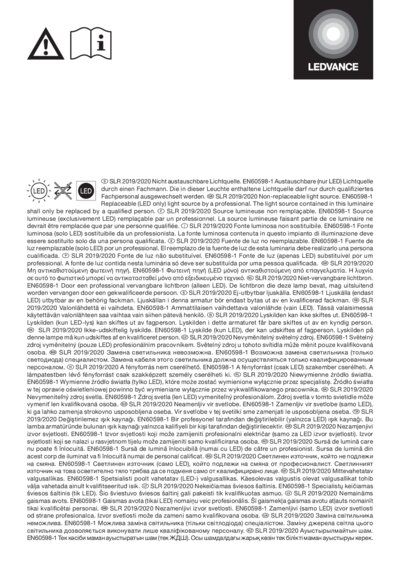

| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

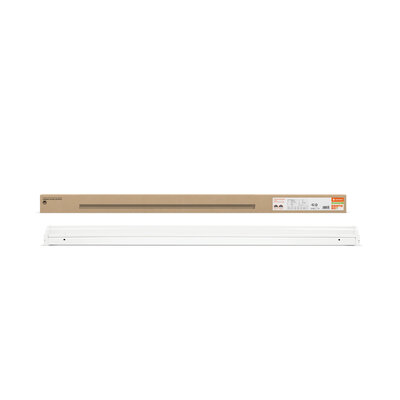

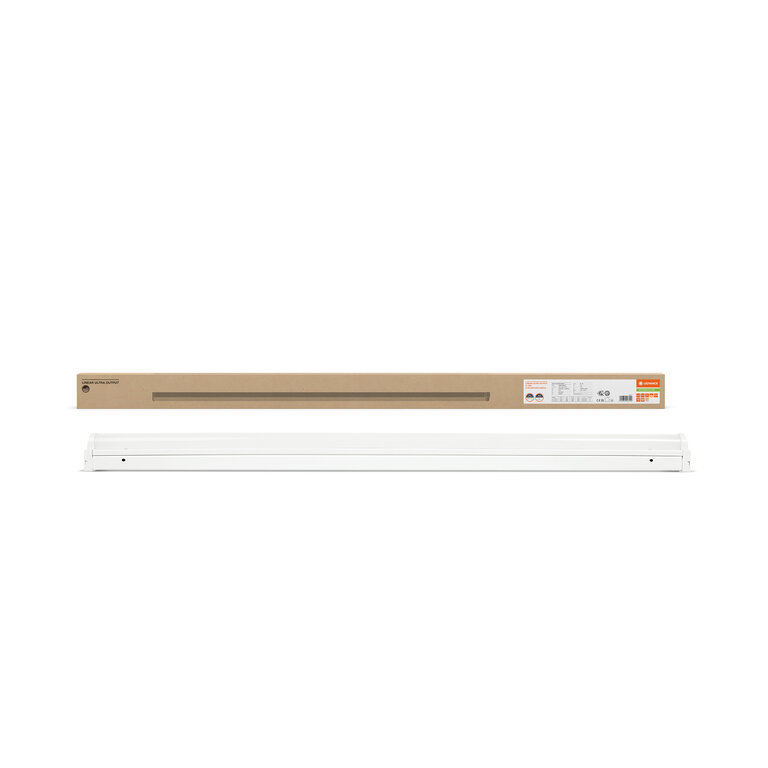

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

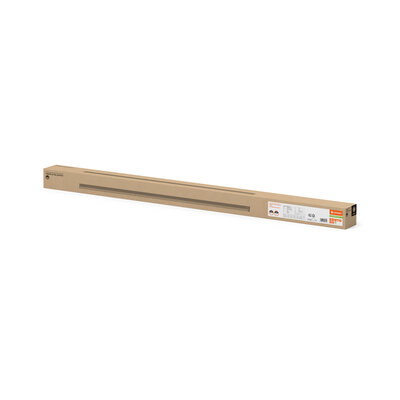

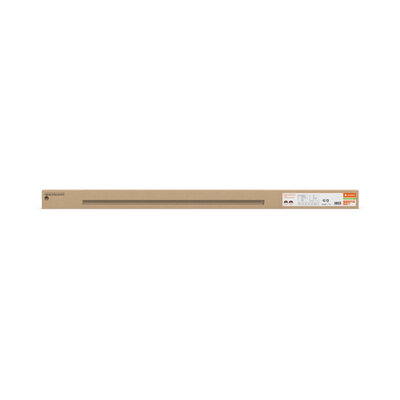

| 4099854296192 | Folding box 1 |
69 mm x 1,174 mm x 77 mm | 1285.00 g | 6.24 dm³ |
| 4099854296208 | Shipping box 6 |
1,184 mm x 225 mm x 170 mm | 8365.00 g | 45.29 dm³ |
| EAN | SEG number | STK number |
|---|---|---|
| 4099854296192 | 7028046 | 4152045 |
