OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN UO EM 1200 25 W 4000 K 25.00 W 50000 120 ° 2950 lm No
LN UO EM 1500 30 W 3000 K 30.00 W 50000 120 ° 3500 lm No
LN UO EM 1500 30 W 4000 K 30.00 W 50000 120 ° 3800 lm No
LN UO EM 1200 33 W 3000 K 33.00 W 50000 120 ° 3700 lm No
LN UO EM 1200 33 W 4000 K 33.00 W 50000 120 ° 4000 lm No
LN UO EM 1500 46 W 4000 K 46.00 W 50000 120 ° 5500 lm No
LN UO EM 1500 60 W 4000 K 60.00 W 50000 120 ° 7100 lm No


LN UO EM 1200 25 W 4000 K

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Replacement of conventional T8 luminaires with up to 7100 lm
  • Energy savings up to 60 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • 3 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 115 mA
Inrush current 20 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 41
Max. number of luminaires per miniature circuit breaker C10 33
Max. number of luminaires per miniature circuit breaker C16 53
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2950 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1168.00 mm
Height 74.00 mm
Width 62.00 mm
Product weight 1410.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range 0…+35 °C
Temperature range at storage 0…+40 °C
Type of connection Screwless terminal
Type of protection IP20
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 25 W
Wattage in emergency operation mode 3,0 W
Luminous flux in emergency operation mode 370 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Replacement of conventional T8 luminaires with up to 7100 lm
  • Energy savings up to 60 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • 3 years guarantee
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Industrial and commercial halls
  • Public areas
  • Corridors, stairwells, basements
Product features
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suited for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Very high luminous efficacy: up to 125 lm/W
  • Robust metal housing and PC diffusor
  • Wiring at back side of luminaire
  • Through wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075515222 Folding box
1		 69 mm x 1,174 mm x 77 mm 1495.00 g 6.24 dm³
4058075515239 Shipping box
6		 1,184 mm x 225 mm x 170 mm 9625.00 g 45.29 dm³
User Instruction / Safety Instructions

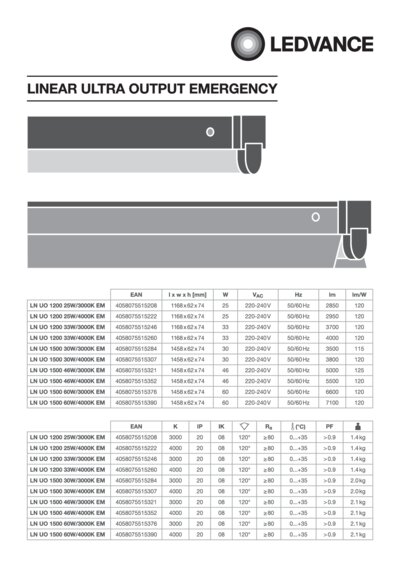

UI_Linear Ultra Output Emergency PDF (5.99 MB)
Legal information

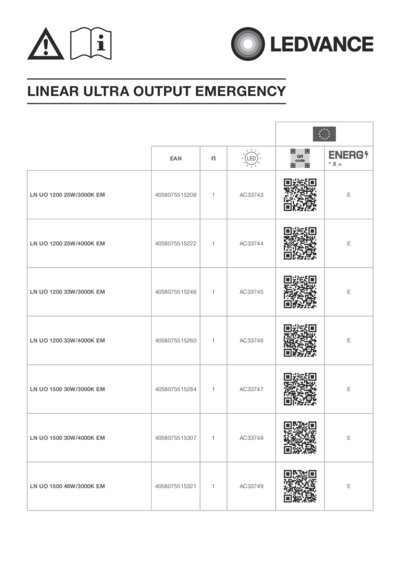

LS Insert Linear Ultra Output EM PDF (1.36 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

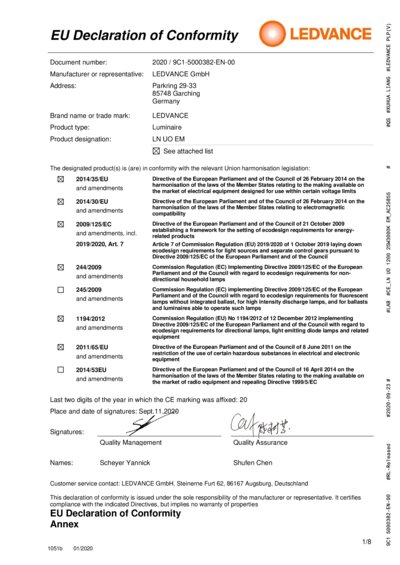

LN UO EM PDF (304.09 KB)
Product Image, Horizontal, White BG
LINEAR ULTRA OUTPUT 12 00 TIF (87.02 MB)
Product Image, Upright, White BG
LINEAR ULTRA OUTPUT 12 00 TIF (83.88 MB)
Product Image, Spacial, White BG
LINEAR ULTRA OUTPUT 12 00 TIF (83.88 MB)
Product line drawing with letters
LINEAR ULTRA OUTPUT 12 00 SVG (7.19 KB)
Product line drawing with numbers
LINEAR ULTRA OUTPUT 12 00 SVG (12.64 KB)
Prod.line drw, front, no dimensions
LINEAR ULTRA OUTPUT 12 00 SVG (4.39 KB)
Combo Shot = Product Beauty Shot + Packaging Image

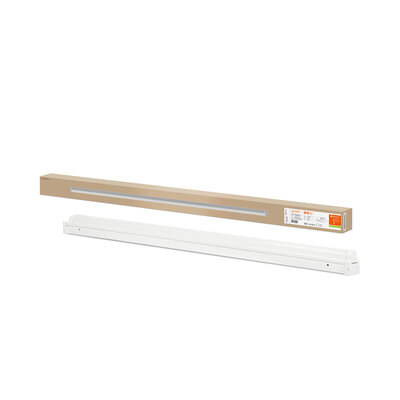

LN UO 1200 25W-4000K E M LEDV JPG (225.66 KB)
Packaging image, spacial

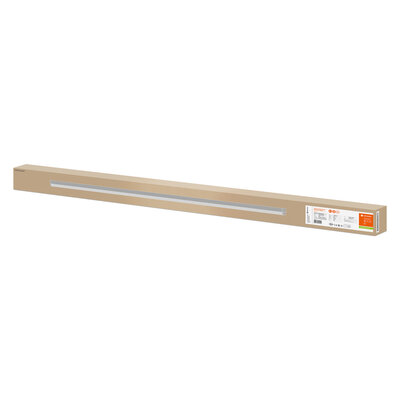

LinearUltraOutput28508 0W830MiCh JPG (879.33 KB)
IES file (IES)
LN UO 1200 25W4000K EM IES (9.26 KB)
LDT file (Eulumdat)
LN UO 1200 25W4000K EM LDT (11.27 KB)
ULD file (DIALux)
LN UO 1200 25W-4000K ULD (259.07 KB)
ROLF file (RELUX)
LN UO 1200 25W-4000K ROLF (88.4 KB)
UGR file (UGR table)

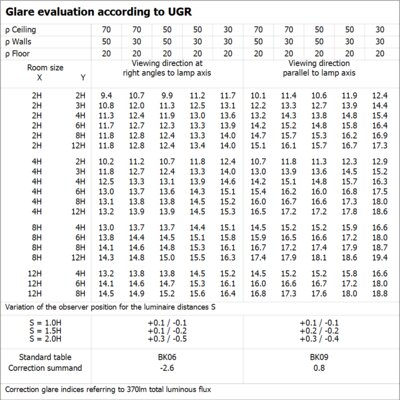

LN UO 1200 25W4000K EM PNG (61.56 KB)
LDC typ cone
LN UO 1200 25W4000K EM SVG (87.86 KB)
LDC typ polar
LN UO 1200 25W4000K EM SVG (482.26 KB)
BIM_Revit_3D
Linear Ultra Output ZIP (2.43 MB)
CAD_STEP_3D
LN UO 1200 STEP (104.63 KB)
Tender documents
LINEAR ULTRA OUTPUT EM ERGENCY 1200 25 W 4000 K-EN TXT (1.74 KB)
Application Pictures
LEDVANCE Aufzugsbereic h TIF (29.63 MB)
EAN SEG number STK number ELDAS number
4058075515222 7019252 4127118 941002440
