Professional
LINEAR SURFACE IP44

LINEAR SURFACE IP44

Choose your product version

1200 36 W 3000 K WT

1200 36 W 4000 K WT

1500 43 W 3000 K WT

1500 43 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN SF IP44 1200 36 W 3000 K WT 36.00 W 25000 120 ° 4000 lm No
LN SF IP44 1200 36 W 4000 K WT 36.00 W 25000 120 ° 4000 lm No
LN SF IP44 1500 43 W 3000 K WT 43.00 W 25000 120 ° 5000 lm No
LN SF IP44 1500 43 W 4000 K WT 43.00 W 25000 120 ° 5000 lm No


LN SF IP44 1200 36 W 3000 K WT

Product benefits
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 180 mA
Inrush current 15.6 A
Inrush current time Th50 265 µs
Max. number of luminaires per miniature circuit breaker B16 18
Max. number of luminaires per miniature circuit breaker C10 18
Max. number of luminaires per miniature circuit breaker C16 25
Power factor λ ≥0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Length 1199.00 mm
Height 64.50 mm
Width 145.00 mm
Product weight 2300.00 g

Materials & Colors

Product color White
Housing color White
Body material Stainless steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Push fit terminal
Type of protection IP44
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050 mA

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants -
Product benefits
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • General illumination
  • Libraries, schools
Product features
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 2 different lengths: 1200 mm and 1500 mm
  • High luminous efficacy: up to 115 lm/W
  • Through-wiring possible
  • Suspended installation possible
  • Lifetime (L70/B50): 50,000 h (at 25 °C)
  • White painted steel housing (like RAL: 9010)
  • Diffusor material: UV-stable polycarbonate
  • End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
  • Accessories for suspension available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075352872 Folding box
1		 1,207 mm x 150 mm x 77 mm 2380.00 g 13.94 dm³
4058075352889 Shipping box
4		 1,228 mm x 319 mm x 183 mm 10410.00 g 71.69 dm³

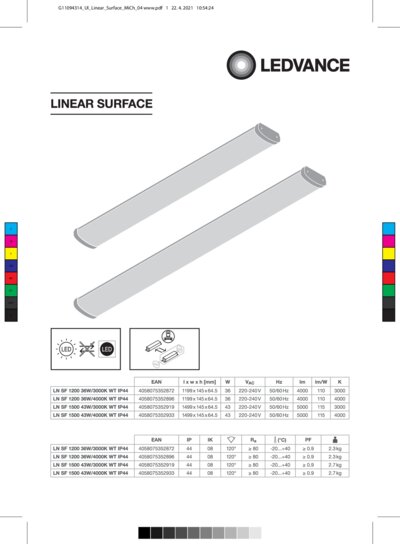

User Instruction / Safety Instructions
UI_Linear Surface PDF (2.46 MB)

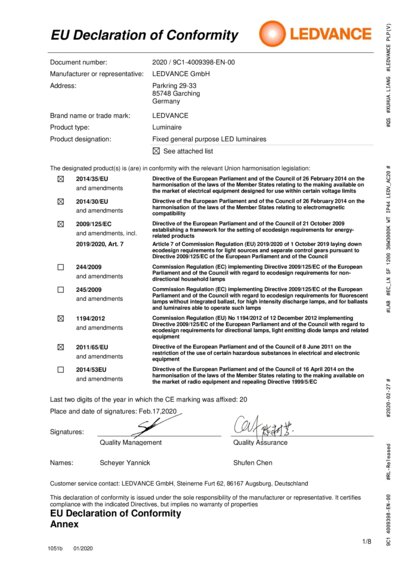

Declarations of conformity
LN SF PDF (329.86 KB)

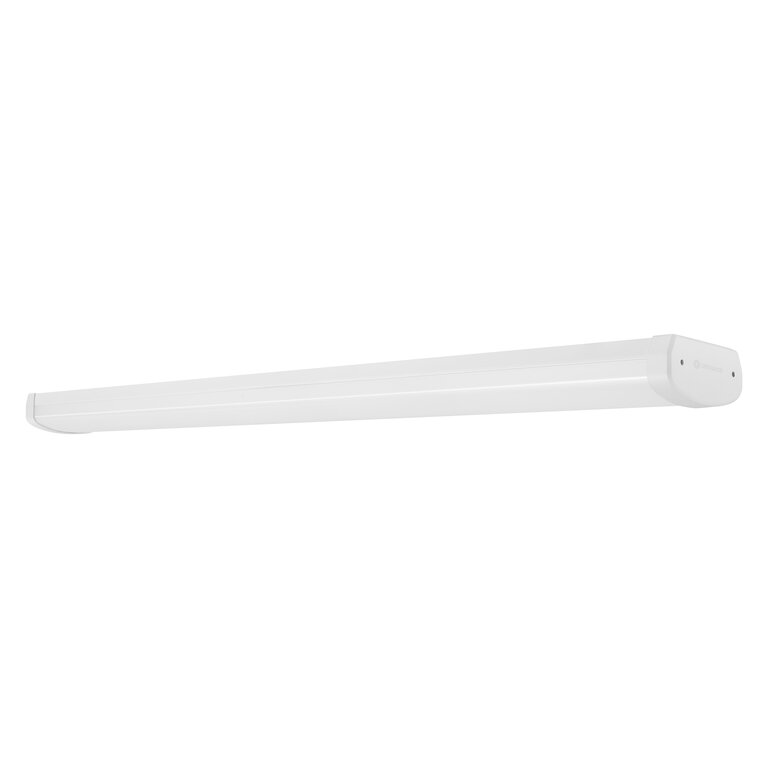

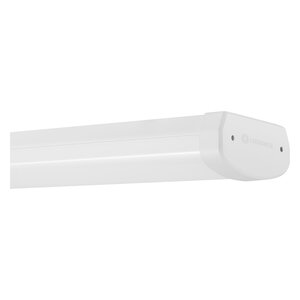

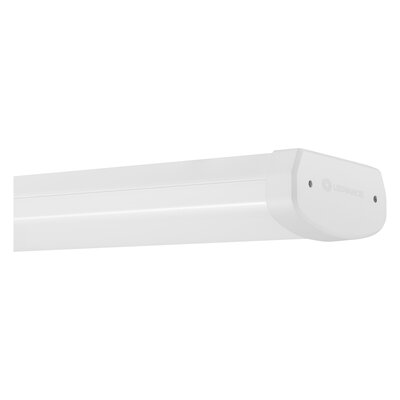

Product Image, Diagonal, White BG
LINEAR SURFACE JPG (867.67 KB)

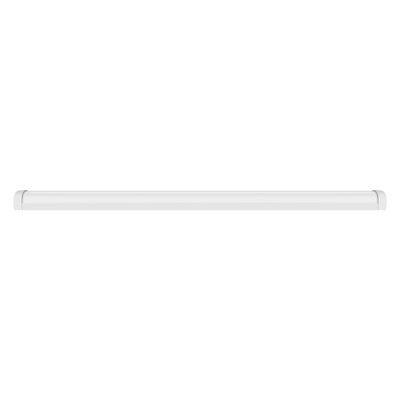

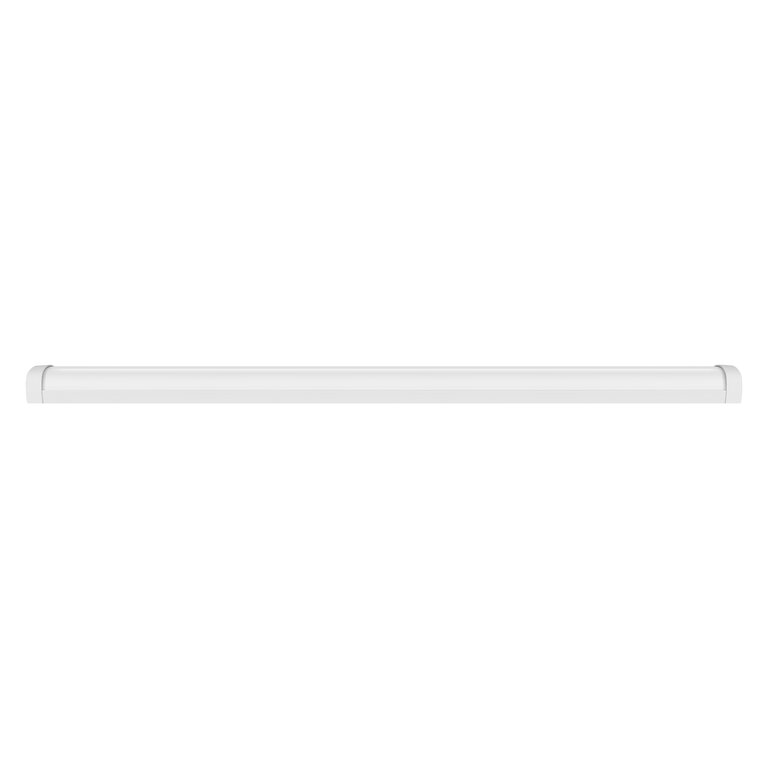

Product Image, Horizontal, White BG
LN SF 1200 36W JPG (688.32 KB)

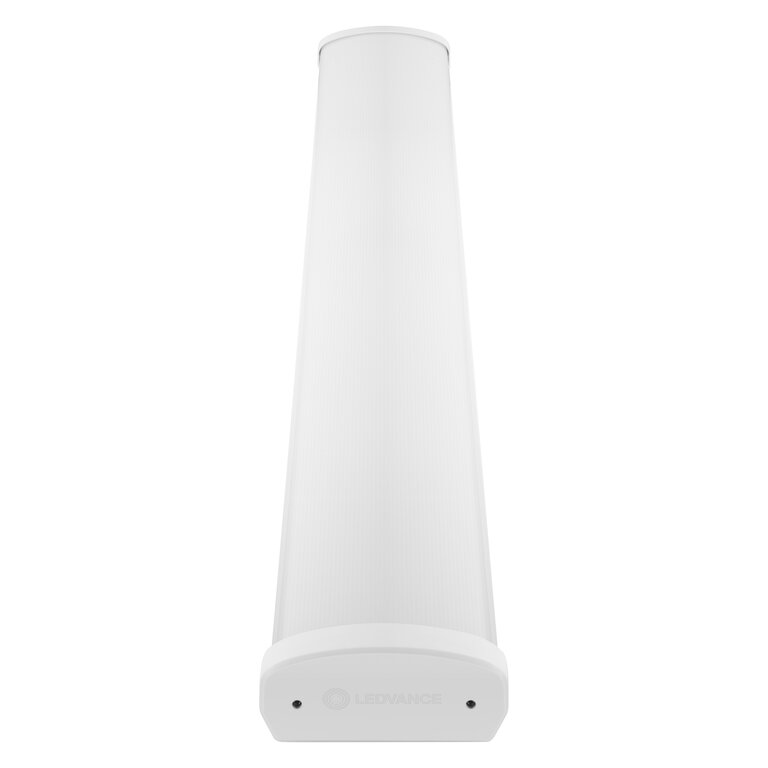

Product Image, Upright, White BG
LN SF 1200 36W JPG (771.22 KB)
Product line drawing with letters
LN SF 1200 36W SVG (7.9 KB)
Product line drawing with numbers
LN SF 1200 36W SVG (14.43 KB)
Prod.line drw, front, no dimensions
LN SF 1200 36W SVG (5.14 KB)

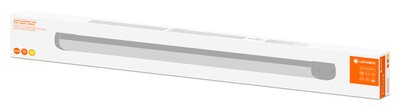

Packaging image, spacial
Linear Surface 1200 36 W 830 MiCh TIF (53.3 MB)
IES file (IES)
LN SF 1200 36W 3000K IES (3.65 KB)
LDT file (Eulumdat)
LN SF 1200 36W 3000K LDT (2.26 KB)
UGR file (UGR table)
LN SF 1200 36W 3000K PNG (63.02 KB)
LDC typ polar
LN SF 1200 36W 3000K SVG (543.88 KB)
EAN SEG number STK number EFO number ELDAS number
4058075352872 7215400 4266667 3304027 941303810
