Product description	Nominal wattage	Dimmable
DR DS-P- 30/220-240/700 PL FLEX 600	30.00 W	No
DR DS-P- 32/220-240/750 PL FLEX 625	32.00 W	No

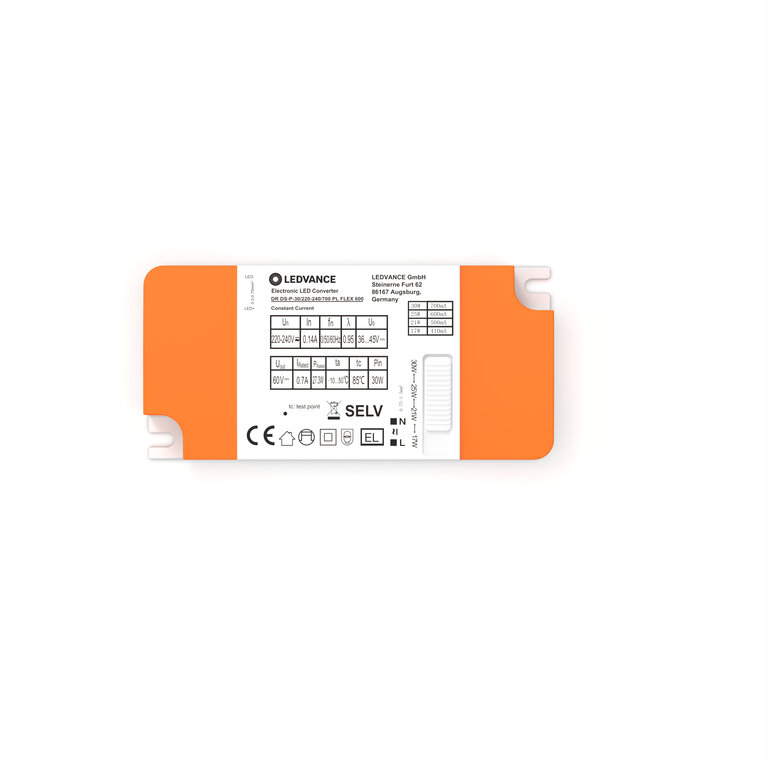

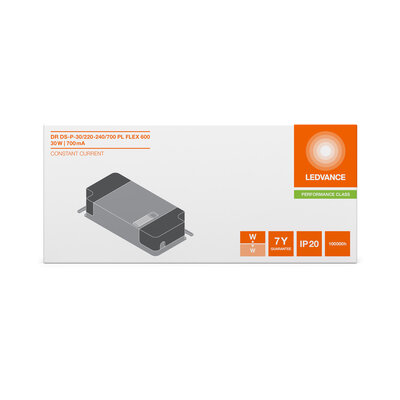

DR DS-P- 30/220-240/700 PL FLEX 600

Product benefits

High flexibility due to adjustable output currents with a switch on the driver
Low flickering enables high light quality as well as good visual comfort
High efficiency and reliability
7 years guarantee

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	30.00 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	750 mA
Inrush current	11.1 A
Power factor λ	> 0.90
Total harmonic distortion	< 15 %
Protection class	II

Dimensions & Weight

Length	125.00 mm
Height	30.00 mm
Width	60.00 mm
Product weight	105.00 g

Materials & Colors

Body material	Plastic
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-10…+50 °C
Temperature range at storage	-20…+80 °C
Type of protection	IP20
Dimmable	No

Control gear

Nominal output current	700 mA
ECG lifetime	100000 h

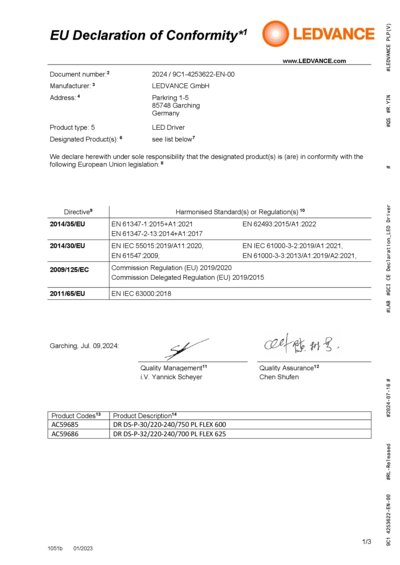

Certificates & Standards

Standards

CE, CB, ENEC, UKCA, EAC, EPD, EL

Additional product data

Product remark

Available from June 2024

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

High flexibility due to adjustable output currents with a switch on the driver
Low flickering enables high light quality as well as good visual comfort
High efficiency and reliability
7 years guarantee

Areas of application

Suitable for PANEL FLEX 30 W / 32 W

Product features

Available in 30 W, 32 W
Protection class: II
Type of protection: IP20
Supply voltage: 220…240 V
Operating frequency: 0/50/60 Hz
Suitable for central battery emergency installations acc. to EN 60598-2-22

References / Links

For Guarantee see www.ledvance.com/guarantee

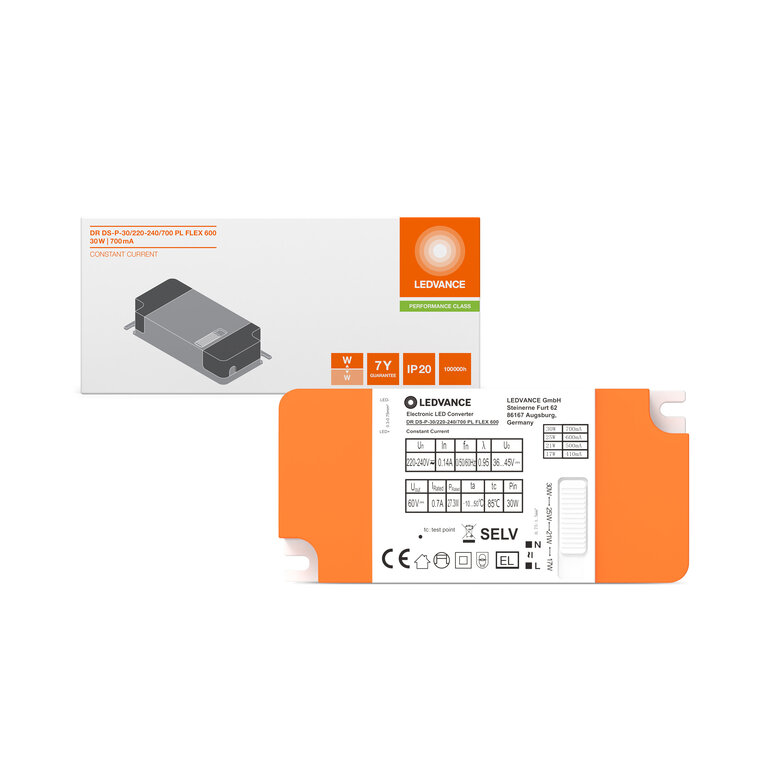

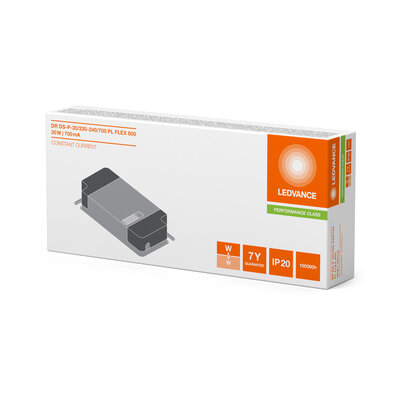

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075843684	Folding box 1	82 mm x 34 mm x 182 mm	154.00 g	0.51 dm³
4058075843820	Shipping box 20	427 mm x 157 mm x 217 mm	3438.00 g	14.55 dm³

Country-specific information

EAN	SEG number	STK number	EFO number
4058075843684	7982595	4031474	3317156

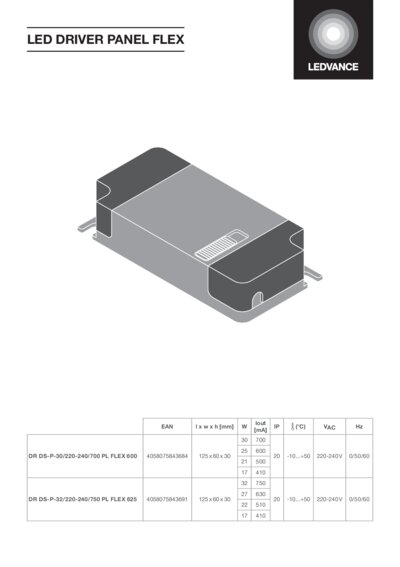

PANEL FLEX DRIVER

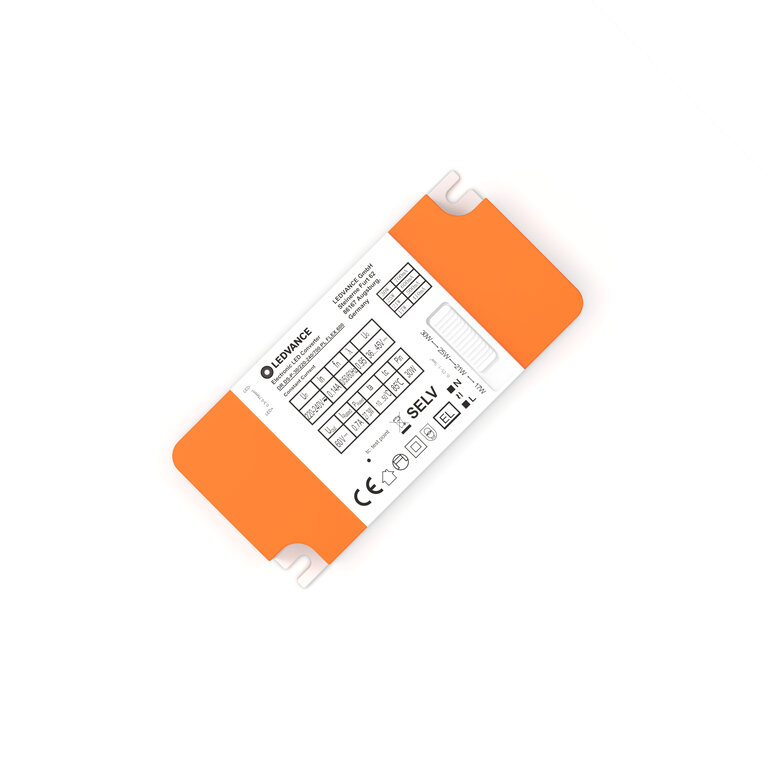

30/220-240/700 PL FLEX 600

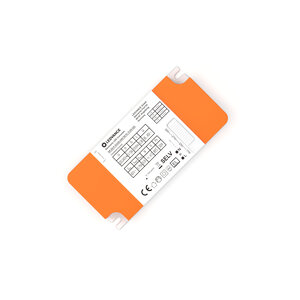

32/220-240/750 PL FLEX 625

OVERVIEW
