Choose your product version
| Product description | Dimmable |
|---|---|
| EM CONVERSION BOX | No |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Length | 292.00 mm |
| Height | 41.00 mm |
| Width | 81.00 mm |
| Product weight | 350.00 g |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | 0…+50 °C |
| Temperature range at storage | 5…+35 °C |
| Type of connection | Screwless |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Type of Battery | Lithium ion |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 4500 mAh |
| Battery charging time | 24 h |
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in maintained operation mode | 3,0 W |
| Wattage in emergency operation mode | 3,0 W |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | No |

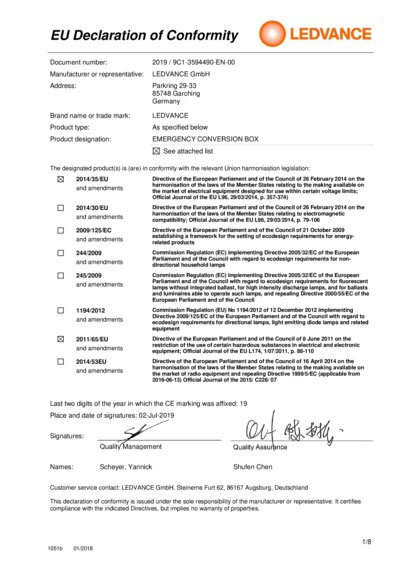

| Standards | CE, ENEC |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075237025 | Folding box 1 |
46 mm x 412 mm x 90 mm | 400.00 g | 1.71 dm³ |
| 4058075237032 | Shipping box 8 |
428 mm x 208 mm x 206 mm | 3412.00 g | 18.34 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075237025 | 7345676 | 4283662 | 3242482 | 941900990 |
