Choose your product version
| Product description | Nominal wattage | Luminous flux | Dimmable |
|---|---|---|---|
| LED PERFORMANCE PANEL 0312 28W 3000K | 28.00 W | 3680 lm | No |
| LED PERFORMANCE PANEL 0606 28W 3000K | 28.00 W | 3680 lm | No |
| LED PERFORMANCE PANEL 0606 28W 3000K WV | 28.00 W | 3680 lm | No |
| LED PERFORMANCE PANEL 0312 28W 3000K WV | 28.00 W | 3680 lm | No |
| LED PERFORMANCE PANEL 0312 28W 4000K WV | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0312 28W 4000K | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0606 28W 4000K | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0606 28W 4000K WV | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0312 28W 6500K | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0312 28W 6500K WV | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0606 28W 6500K | 28.00 W | 4000 lm | No |
| LED PERFORMANCE PANEL 0606 28W 6500K WV | 28.00 W | 4000 lm | No |
| Nominal wattage | 28.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 300.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 42 |
| Max. number of luminaires per miniature circuit breaker C10 | 26 |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Power factor λ | 0.90 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | II |
| Luminous flux | 4000 lm |
| Luminous efficacy | 143 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| UGR | < 22 |

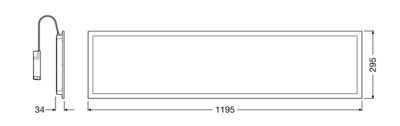

| Length | 1195.00 mm |
| Height | 34.00 mm |
| Width | 295.00 mm |
| Product weight | 1630.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+50 °C |
| Temperature range at storage | -20…+70 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Application environment | Indoor |
| Mounting length | 1195.0 mm |
| Mounting width | 295,0 mm |
| LED module replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CB |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075727182 | Folding box 1 |
1,203 mm x 40 mm x 341 mm | 2004.00 g | 16.41 dm³ |
| 4058075727199 | Shipping box 5 |
1,258 mm x 223 mm x 408 mm | 11022.00 g | 114.46 dm³ |
