LED ECO PANEL BACKLIT G2

LED ECO PANEL BACKLIT G2

Choose your product version

OVERVIEW

Product description	Nominal wattage	Beam angle	Luminous flux	Dimmable
	36.00 W	120 °	2980 lm	No
	36.00 W	120 °	2980 lm	No
	36.00 W	120 °	3240 lm	No
	36.00 W	120 °	3240 lm	No
	36.00 W	120 °	3240 lm	No
	36.00 W	120 °	3240 lm	No
	36.00 W	120 °	3240 lm	No
	36.00 W	120 °	3240 lm	No
	65.00 W	120 °	5380 lm	No
	65.00 W	120 °	5850 lm	No
	65.00 W	120 °	5850 lm	No
	65.00 W	120 °	5850 lm	No

Product benefits

Sturdy SPCC housing
Safety compliance certificates: CB, EU RoHS 2.0
Low maintenance costs thanks to long lifetime
Seamless aluminum frame design
High system efficacy up to 90lm/W reduce energy consumption

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	65.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Power factor λ	> 0.90
Protection class	II

Photometrical data

Luminous flux	5380 lm
Luminous efficacy	83 lm/W
Color temperature	3000 K
Color rendering index Ra	> 80
Standard deviation of color matching	5 sdcm
Photobiological safety group acc. to EN62778	RG0
Beam angle	120 °

Dimensions & Weight

Length	1195.00 mm
Height	34.00 mm
Width	595.00 mm
Product weight	3060.00 g

Materials & Colors

Body material	Steel
Mercury content	0.0 mg

Application & Mounting

Type of protection	IP40/IP20
Dimmable	No
Mounting location	Ceiling
Application environment	Indoor
LED module replaceable	Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C

50000 h ¹⁾

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards

CB, ROHS

Product description

Product benefits

Sturdy SPCC housing
Safety compliance certificates: CB, EU RoHS 2.0
Low maintenance costs thanks to long lifetime
Seamless aluminum frame design
High system efficacy up to 90lm/W reduce energy consumption

Areas of application

Office areas
Retail
Hospitals
Public areas

Product features

Latest backlit LED technology platform
Available in standard 600 x 600 mm, 300 x 1200 mm & 600 x 1200 mm size
Standard CCT: 4000 K & 6500 K, 3000 K on request
Color rendering index R_a: > 80
Power factor: > 0.9
Recess mount with optional plaster ceiling mounting clips and suspension kit
Integrated heat resistance lens for uniform light distribution, reduce product height to only 34 mm

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854031076	Folding box 1	1,258 mm x 605 mm x 42 mm	4517.00 g	31.97 dm³
4099854031083	Shipping box 4	1,302 mm x 182 mm x 659 mm	19608.00 g	156.16 dm³

Product images and graphics

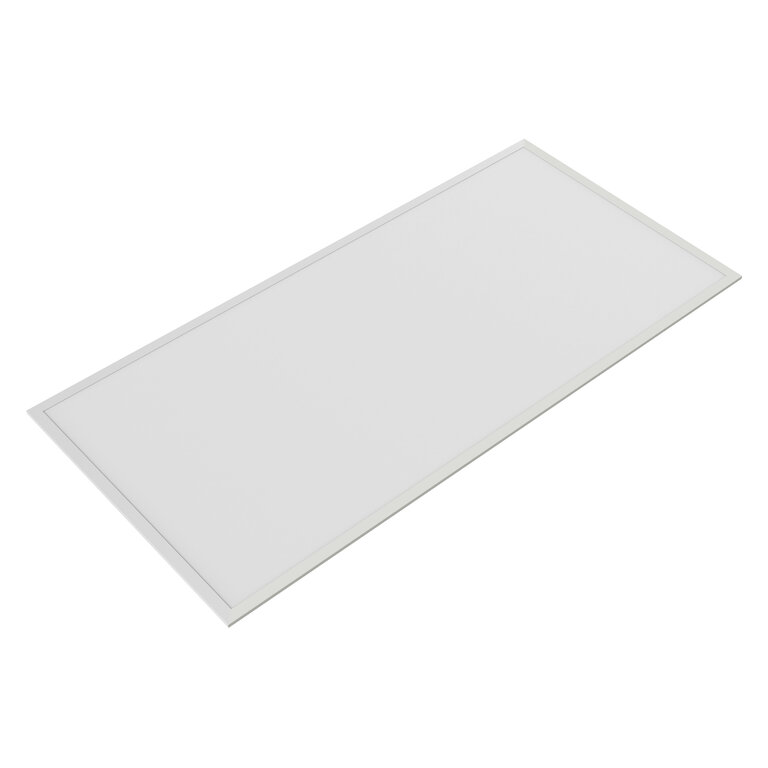

Product Image, Spacial, White BG
LDECO PANEL 0612B H JPG (888.52 KB)

Product line drawing with numbers
SVG (122.25 KB)
