PANEL IndiviLED® 600

PANEL IndiviLED 600

Choose your product version

33 W 3000K

33 W 4000K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL INDV 600 33 W 3000K 33.00 W 25000 70 ° 3800 lm No
PANEL INDV 600 33 W 4000K 33.00 W 25000 70 ° 4000 lm No


PANEL INDV 600 33 W 3000K

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 180.000 mA
Inrush current 36.4 A
Inrush current time Th50 80 µs
Max. number of luminaires per miniature circuit breaker B16 18
Max. number of luminaires per miniature circuit breaker C10 15
Max. number of luminaires per miniature circuit breaker C16 24
Power factor λ > 0.90
Total harmonic distortion 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3800 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 595.00 mm
Height 13.00 mm
Width 595.00 mm
Product weight 3500.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP40
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Lifetime (L80/B50): up to 50,000 h (at 25 °C)
  • Metal housing, polycarbonate (PC) lenses and reflectors
  • Luminous flux: up to 4,000 lm
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Luminaire versions with IoT-ready DALI-2 driver or IoT Zigbee 3.0 technology available
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • External control gear included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075201132 Folding box
1		 643 mm x 688 mm x 38 mm 3893.00 g 16.81 dm³
4058075201149 Shipping box
3		 660 mm x 135 mm x 710 mm 12554.00 g 63.26 dm³
Product image Product name EAN
EM CONVERSION BOX 4058075237025
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL Suspension Kit 4058075402928
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
CONNECTOR BOX 5POLE L/N 4x 4058075473010
User Instruction / Safety Instructions

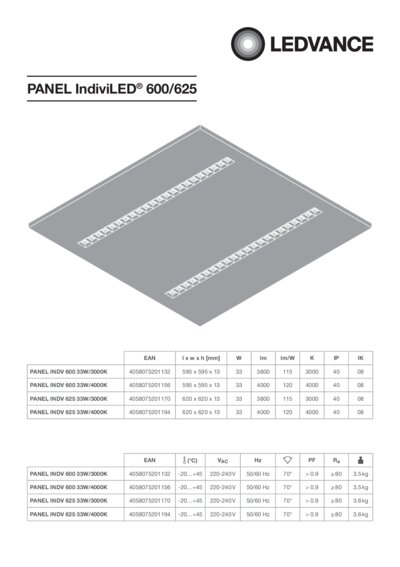

User Instruction Panel IndiviLED 600 625 PDF (3.02 MB)
Legal information

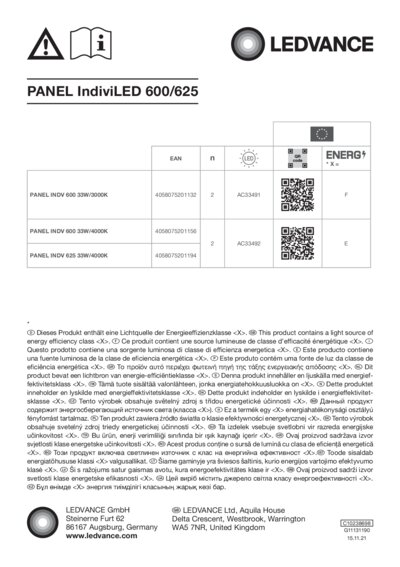

LSI PANEL INDV PDF (1.15 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

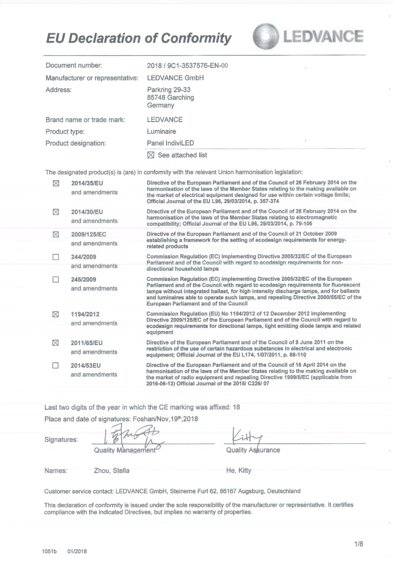

EU declaration of conf ormity panel IndiviLED PDF (9.6 MB)
Product Image, Diagonal, White BG
PANEL INDV TIF (62.28 MB)
Product Image, Horizontal, White BG
PANEL INDV TIF (49.25 MB)
Product Image, Spacial, White BG
PANEL INDV TIF (56.19 MB)
Product line drawing with numbers
PANEL INDV 600 33W SVG (155.99 KB)

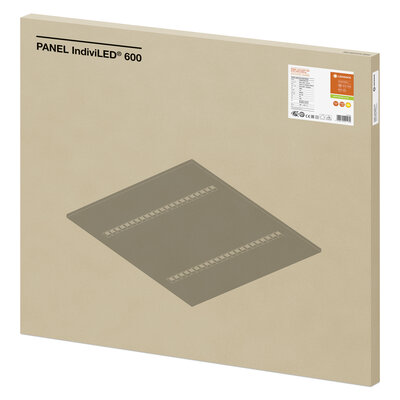

Packaging image, spacial
Panel IndiviLED 600 33 W 830 MiCh Side TIF (2.49 MB)
Catalog info 3
Panel IndiviLED 600 62 5 SVG (68.18 KB)
Catalog info 4
Panel IndiviLED 600 62 5 SVG (44.25 KB)
IES file (IES)
PANEL INDV 600 33W3000 K IES (9.96 KB)
LDT file (Eulumdat)
PANEL INDV 600 33W3000 K LDT (9.56 KB)
ULD file (DIALux)
PANEL INDV 600 33W-30 00K ULD (101.89 KB)
ROLF file (RELUX)
PANEL INDV 600 33W-300 0K ROLF (159.26 KB)
UGR file (UGR table)
PANEL INDV 600 33W3000 K PNG (57.4 KB)
LDC typ cone
PANEL INDV 600 33W3000 K SVG (91.06 KB)
LDC typ polar
PANEL INDV 600 33W3000 K SVG (237.37 KB)
BIM_Revit_3D
PANEL Indiv ZIP (9 MB)
CAD_STEP_3D
PANEL Indiv 600 STEP (487.56 KB)
Tender documents
PANEL IndiviLED 600 33 W 3000K-EN TXT (1.86 KB)
Application Pictures
Office Panel Indiviled , Linear Indiviled, L inear Indiviled D/I TIF (42.89 MB)
Video
Business Campus Hub - Corridor - LED Strip R GBW & IndiviLED - engl ish video MP4 (114.21 MB)
EAN SEG number STK number EFO number ELDAS number
4058075201132 7016595 4246000 3000648 941401210
