PANEL IndiviLED® 600 DALI

PANEL IndiviLED 600 DALI

Choose your product version

33 W 3000K DALI

33 W 4000K DALI

DALI 33 W 4000K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL INDV 600 33 W 3000K DALI 33.00 W 25000 70 ° 3800 lm Yes
PANEL INDV 600 33 W 4000K DALI 33.00 W 25000 70 ° 4000 lm Yes
PANEL INDV 600 DALI 33 W 4000K 33.00 W 25000 70 ° 4000 lm Yes


PANEL INDV 600 33 W 3000K DALI

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 180.000 mA
Max. number of luminaires per miniature circuit breaker B16 14
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3800 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 595.00 mm
Height 13.00 mm
Width 595.00 mm
Product weight 3500.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP40
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI
Mounting type Surface/Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, ENEC, EAC
Luminaire with limited surface temperature, "D sign" No
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Lifetime (L80/B50): up to 50,000 h (at 25 °C)
  • Metal housing, polycarbonate (PC) lenses and reflectors
  • Luminous flux: up to 4,000 lm
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • External control gear included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075503885 Folding box
1		 643 mm x 688 mm x 38 mm 3893.00 g 16.81 dm³
4058075503892 Shipping box
3		 660 mm x 135 mm x 710 mm 12554.00 g 63.26 dm³
User Instruction / Safety Instructions

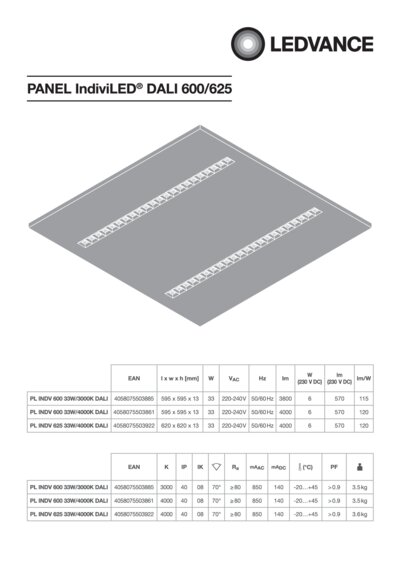

PANEL INDIVILED DALI 6 00/625 PDF (1.26 MB)
Legal information

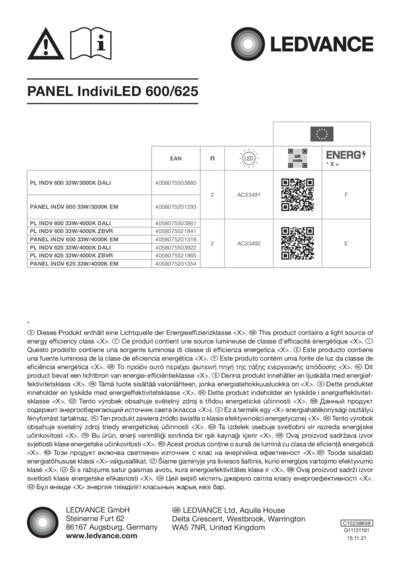

LSI PANEL INDV EM PDF (1.15 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

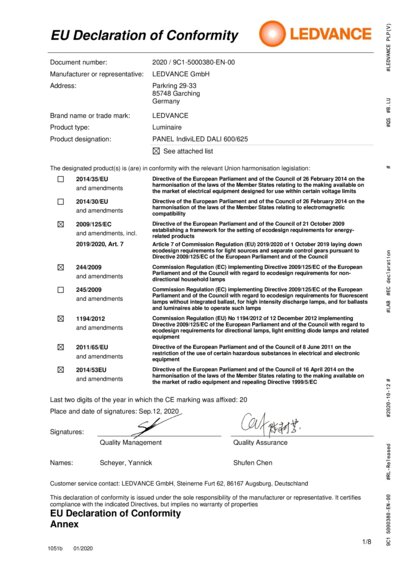

Declarations of conformity
PL INDV 33 DALI PDF (334.39 KB)

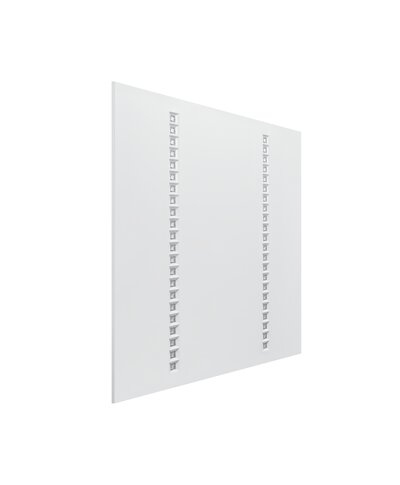

Product Image, Diagonal, White BG
PANEL INDV TIF (62.28 MB)

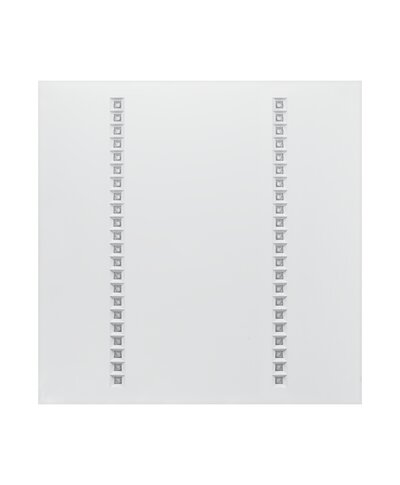

Product Image, Horizontal, White BG
PANEL INDV TIF (49.25 MB)

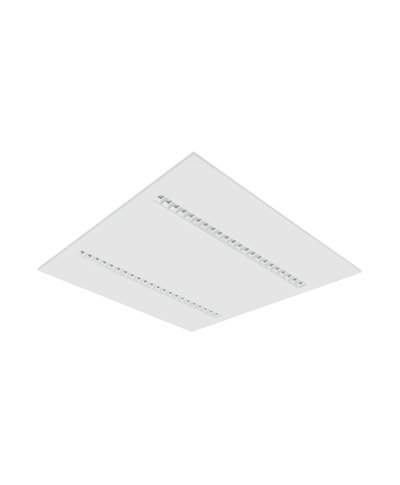

Product Image, Spacial, White BG
PANEL INDV TIF (56.19 MB)
Product line drawing with numbers
PANEL INDV 600 33W SVG (155.99 KB)

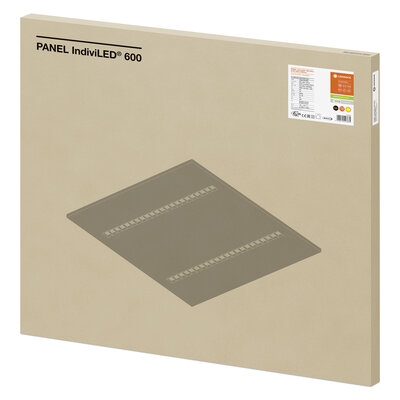

Packaging image, spacial
Panel IndiviLED 600 33 W 830 MiCh TIF (2.5 MB)
IES file (IES)
PL INDV 600 33W3000K D ALI IES (9.97 KB)
LDT file (Eulumdat)
PL INDV 600 33W3000K D ALI LDT (9.56 KB)
ULD file (DIALux)
PL INDV 600 33W-3000K DALI ULD (162.3 KB)
ROLF file (RELUX)
PL INDV 600 33W-3000K ROLF (159.74 KB)
UGR file (UGR table)
PL INDV 600 33W3000K D ALI PNG (57.4 KB)
LDC typ cone
PL INDV 600 33W3000K D ALI SVG (91.06 KB)
LDC typ polar
PL INDV 600 33W3000K D ALI SVG (237.37 KB)
BIM_Revit_3D
PANEL Indiv ZIP (9 MB)
CAD_STEP_3D
PANEL Indiv 600 STEP (487.56 KB)
Tender documents
PANEL IndiviLED 600 DA LI 33 W 3000K DALI-EN TXT (2.1 KB)
Video

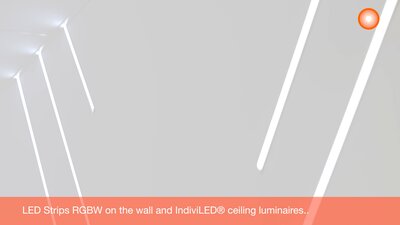

Business Campus Hub - Corridor - LED Strip R GBW & IndiviLED - engl ish video MP4 (114.21 MB)
EAN SEG number STK number EFO number ELDAS number
4058075503885 7019215 4127111 3004800 941402120
