PANEL IndiviLED® EMERGENCY 600

PANEL IndiviLED EMERGENCY 600

Choose your product version

33 W 3000K

33 W 4000K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL INDV EM 600 33 W 3000K 33.00 W 25000 70 ° 3800 lm No
PANEL INDV EM 600 33 W 4000K 33.00 W 25000 70 ° 4000 lm No


PANEL INDV EM 600 33 W 3000K

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 3 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 180.000 mA
Inrush current 36.4 A
Inrush current time Th50 80 µs
Max. number of luminaires per miniature circuit breaker B16 58
Max. number of luminaires per miniature circuit breaker C10 36
Max. number of luminaires per miniature circuit breaker C16 58
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3800 lm
Luminous efficacy 115 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 595.00 mm
Height 13.00 mm
Width 595.00 mm
Product weight 3700.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+40 °C
Temperature range at storage 5…+35 °C
Type of connection Screw terminal, 2-POLE (N, L. L switchable)
Type of protection IP40
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 33 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 3800 lm
Luminous flux in emergency operation mode 450 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • Low flicker light thanks to special electronic control gear
  • 3 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Reception areas, foyers, corridors, elevators
  • Offices, conference rooms
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Luminaire suited for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Metal housing, polycarbonate (PC) lenses and reflectors
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Optional mounting clips available
  • Security rope for luminaire included
  • External control gear included
  • Control LED with a holder for recessed installation included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075201293 Folding box
1		 646 mm x 48 mm x 737 mm 4215.00 g 22.85 dm³
4058075201309 Shipping box
4		 750 mm x 210 mm x 658 mm 17615.00 g 103.64 dm³
Product image Product name EAN
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034

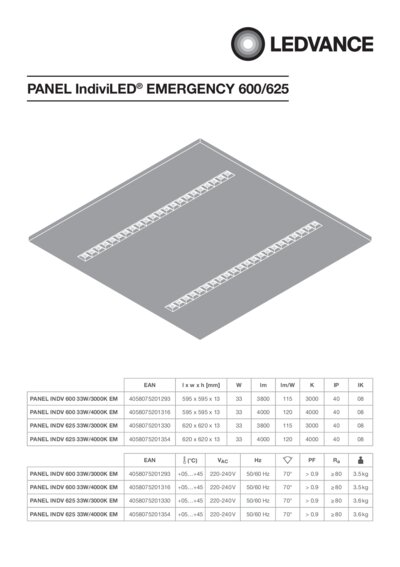

User Instruction / Safety Instructions
UI PANEL INDIVILED EME RGENCY PDF (4.14 MB)
Legal information
LSI PANEL INDV EM PDF (1.15 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

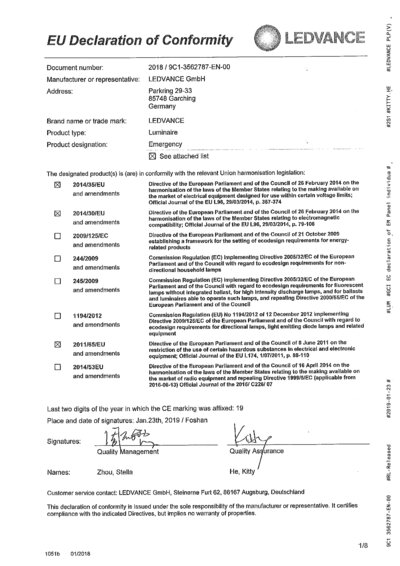

Declarations of conformity
PANEL INDV EM PDF (795.94 KB)
Product Image, Diagonal, White BG
PANEL INDV TIF (62.28 MB)
Product Image, Horizontal, White BG
PANEL INDV TIF (49.25 MB)
Product Image, Spacial, White BG
PANEL INDV TIF (56.19 MB)
Product line drawing with numbers
PANEL INDV 600 33W SVG (155.99 KB)

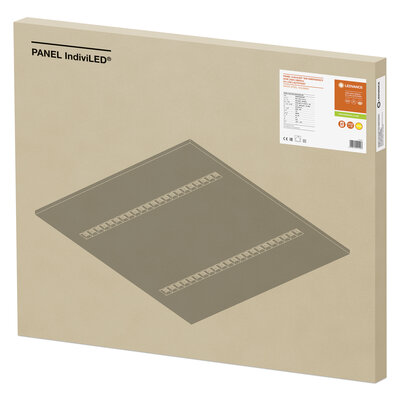

Packaging image, spacial
Panel IndiviLED Value 600 EM 33W 830 MiCh Si de TIF (2.58 MB)
Catalog info 3
Panel IndiviLED 600 62 5 SVG (68.18 KB)
Catalog info 4
Panel IndiviLED 600 62 5 SVG (44.25 KB)
IES file (IES)
PANEL INDV 600 33W3000 K EM IES (9.97 KB)
LDT file (Eulumdat)
PANEL INDV 600 33W3000 K EM LDT (9.56 KB)
ULD file (DIALux)
PANEL INDV 600 33W-300 0K ULD (214.53 KB)
ROLF file (RELUX)
PANEL INDV 600 33W-300 0K ROLF (165.94 KB)
UGR file (UGR table)
PANEL INDV 600 33W3000 K EM PNG (57.4 KB)
LDC typ cone
PANEL INDV 600 33W3000 K EM SVG (91.06 KB)
LDC typ polar
PANEL INDV 600 33W3000 K EM SVG (237.37 KB)
BIM_Revit_3D
PANEL Indiv ZIP (9 MB)
CAD_STEP_3D
PANEL Indiv 600 STEP (487.56 KB)
Tender documents
PANEL IndiviLED EMERGE NCY 600 33 W 3000K-EN TXT (2.27 KB)

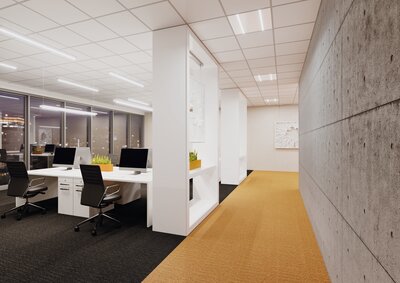

Application Pictures
Office Panel Indiviled , Linear Indiviled, L inear Indiviled D/I TIF (42.89 MB)
EAN SEG number STK number EFO number ELDAS number
4058075201293 7016599 4283644 3000652 927565110
