PANEL PFM HO 600

PANEL PFM HO 600

Choose your product version

36 W 4000 K OP WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL 600 36 W 4000 K OP WT 36.00 W 25000 120 ° 4320 lm No


PANEL 600 36 W 4000 K OP WT

Product benefits
  • High lumen output reduces the total number of panels per installation
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Low flicker light thanks to special electronic control gear
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 190.000 mA
Inrush current 15.0 A
Max. number of luminaires per miniature circuit breaker B16 17
Max. number of luminaires per miniature circuit breaker C10 35
Max. number of luminaires per miniature circuit breaker C16 56
Power factor λ > 0.95
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 4320 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 12.20 mm
Width 595.00 mm
Product weight 3250.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 150 mm
ECG - Width 41.4 mm
ECG - Height 32 mm

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Ball shot safe No
Product benefits
  • High lumen output reduces the total number of panels per installation
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Low flicker light thanks to special electronic control gear
  • Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors
  • Offices
  • Conference rooms
  • Reception areas
  • Foyers
  • Elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Luminous flux: up to 4,320 lm
  • High luminous efficacy: up to 120 lm/W
  • Lifetime (L80/B50): up to 60,000 h (at 25 °C)
  • Aluminum housing, polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • Security rope for luminaire included
  • External control gear included
  • Not suitable for use with Emergency Conversion Box
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075113084 Folding box
1		 625 mm x 38 mm x 680 mm 3545.00 g 16.15 dm³
4058075113091 Shipping box
4		 695 mm x 170 mm x 645 mm 15030.00 g 76.21 dm³
Product image Product name EAN
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL Suspension Kit 4058075402928
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
EM CONVERSION BOX 4058075237025
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
CONNECTOR BOX 5POLE L/N 4x 4058075473010

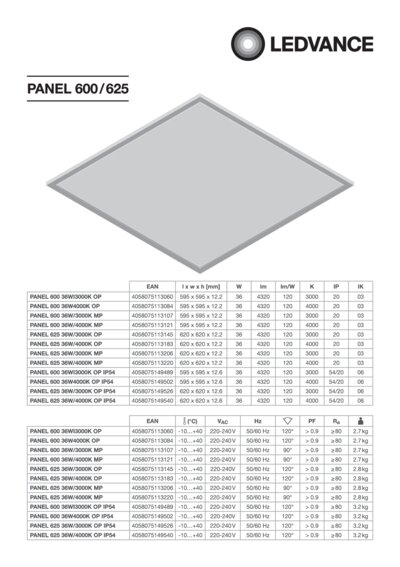

User Instruction / Safety Instructions
PANEL 600 / 625 PDF (2.17 MB)

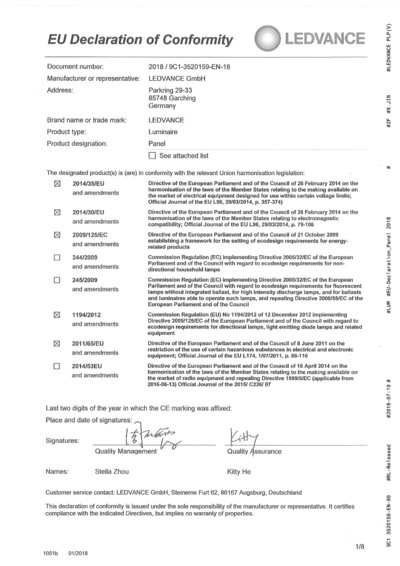

Declarations of conformity
Declaration of Conform ity Panel 600 625 MP O P LEDV PDF (2.59 MB)

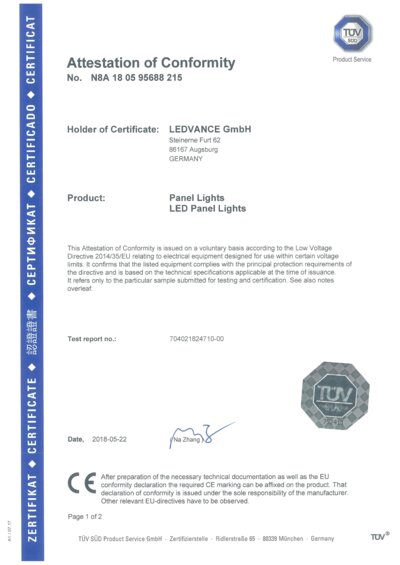

Declarations of conformity
Attestation-of-Conform ity-Panel MP OP IP20 T ÜV PDF (899.91 KB)
Certificates

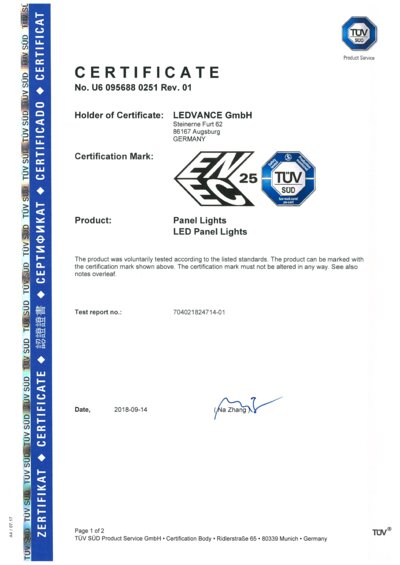

ENEC Panel 600 625 PDF (1.04 MB)

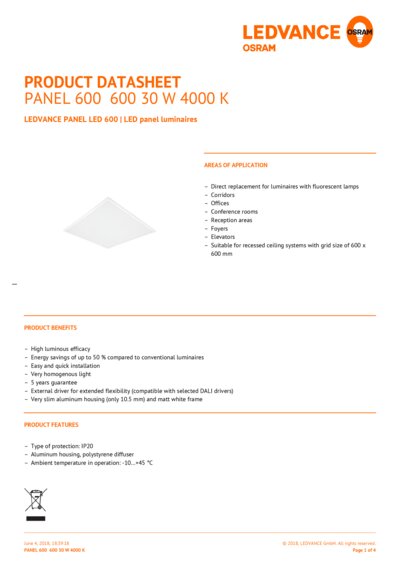

PRODUCT DATASHEET
PANEL 600 600 30 W 400 0 K PDF (265.14 KB)

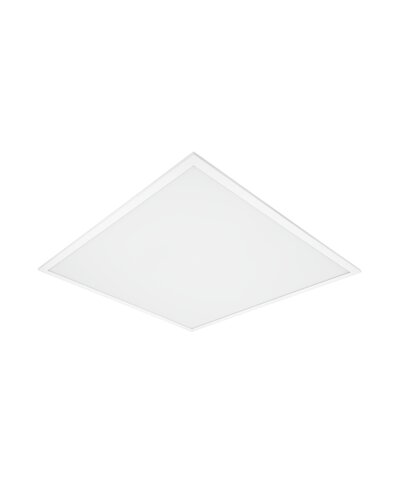

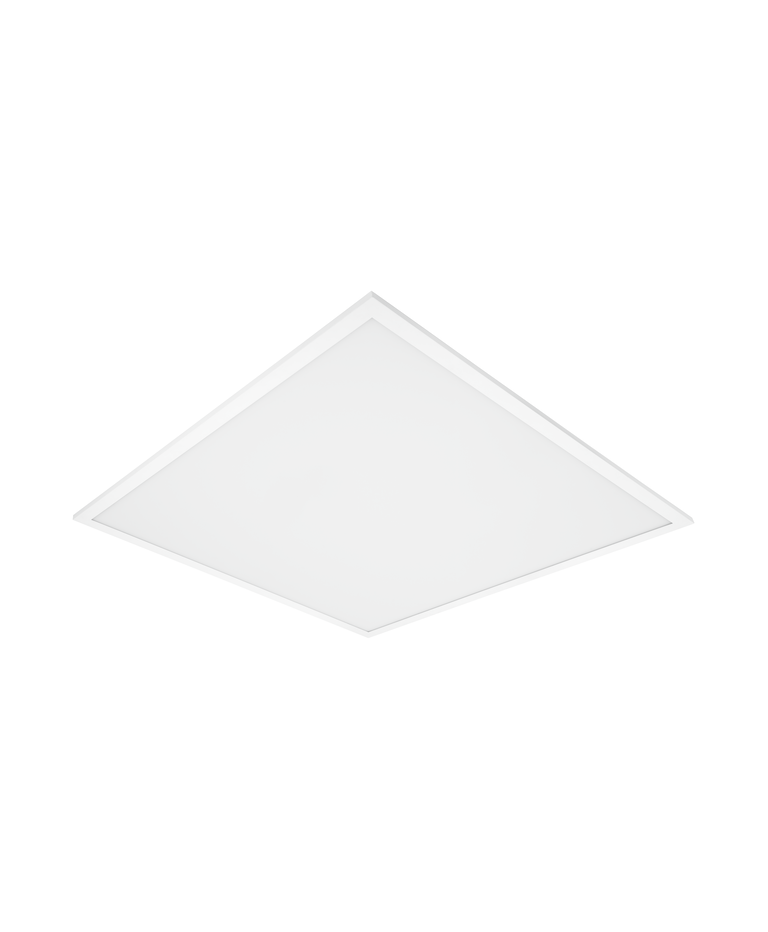

Product Image, Upright, White BG
707938_LEDVANCE Panel LED 600 TIF (83.03 MB)
Product line drawing with letters
PANEL 600 SVG (10.93 KB)
Product line drawing with numbers
PANEL 600 SVG (21.53 KB)
Product line drawing - technical
PANEL 600 SVG (3.5 KB)

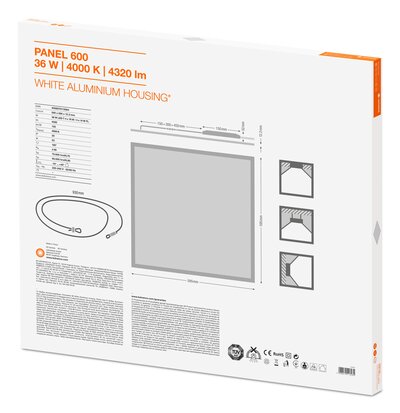

Packaging image, spacial
Panel 600 OP white 36W 840 MiCh Side2 TIF (63.59 MB)
Catalog info 1
Panel LED IP20 SVG (51.47 KB)
Catalog info 2
Panel LED IP20 SVG (57.08 KB)
Catalog info 3
Panel LED IP20 SVG (58.15 KB)
IES file (IES)
Panel 600 36W 4000K OP IES (8.91 KB)
LDT file (Eulumdat)
Panel 600 36W 4000K OP LDT (8.65 KB)
UGR file (UGR table)
Panel 600 36W 4000K OP PNG (60.6 KB)
LDC typ cone
Panel 600 36W 4000K OP SVG (82.77 KB)
LDC typ polar
Panel 600 36W 4000K OP SVG (319.86 KB)
Application Pictures

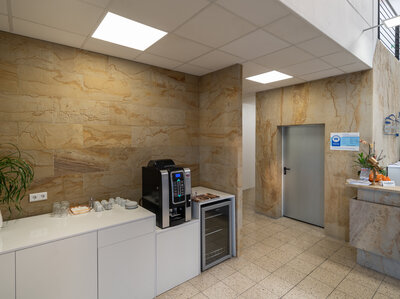

2019 EHH car center ca se study No:3 from 29 JPG (13.95 MB)
Application Pictures

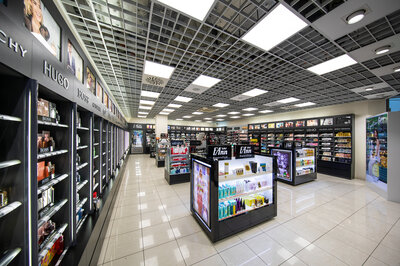

Fann 1 JPG (4 MB)
Application Pictures

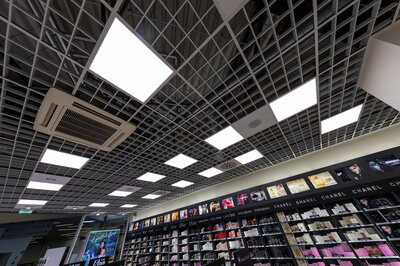

Fann 5 JPG (3.17 MB)
Application Pictures

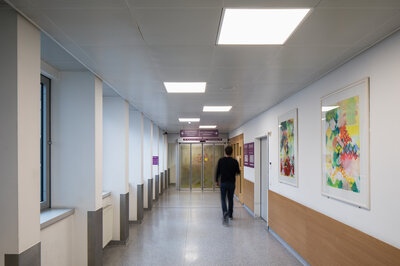

Tirol Kliniken 2019 9 JPG (14.91 MB)

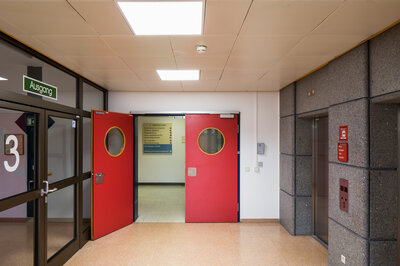

Application Pictures
Tirol Kliniken 2019 10 JPG (21.04 MB)
Application Pictures

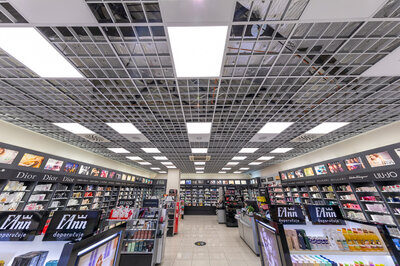

Fann 2 JPG (4.43 MB)

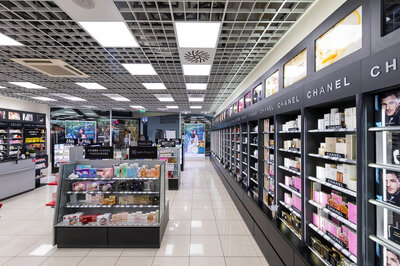

Application Pictures
Fann 4 JPG (3.68 MB)

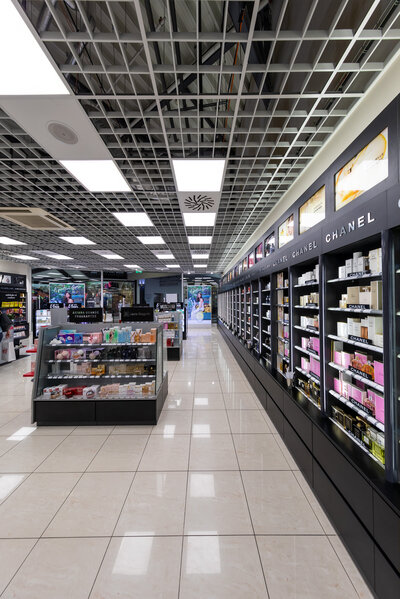

Application Pictures
Fann 3 JPG (3.17 MB)

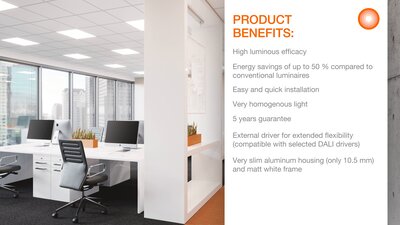

Video
LEDVANCE Panel LED 600 EN MP4 (66.37 MB)
Video

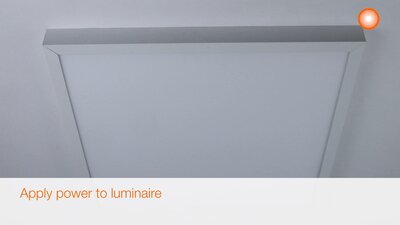

LEDVANCE LUM Installat ion Video EN Panel Acc essories MP4 (199.16 MB)
EAN SEG number STK number EFO number ELDAS number
4058075113084 7016097 4231820 3201680 941400380
