Professional

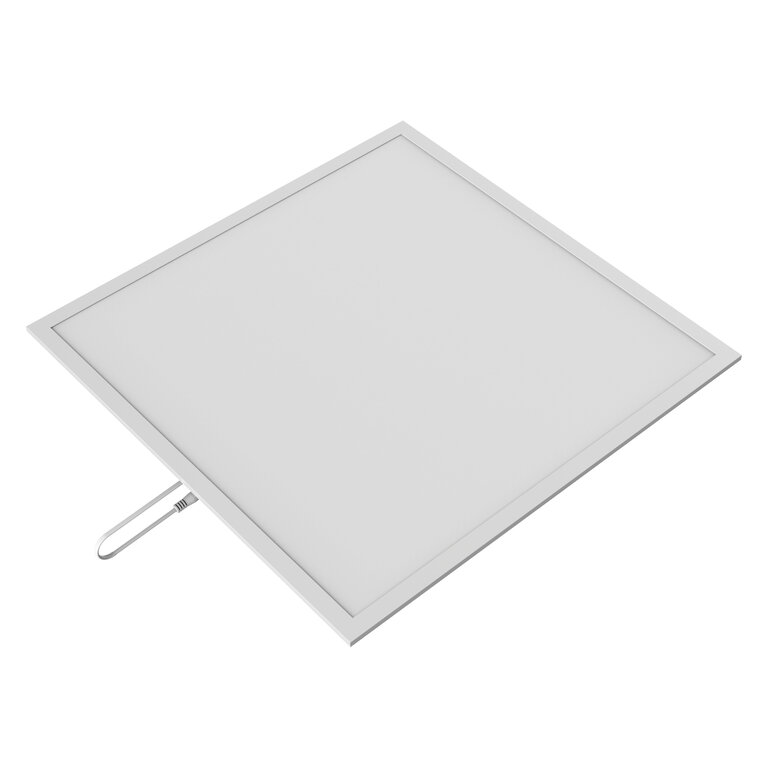

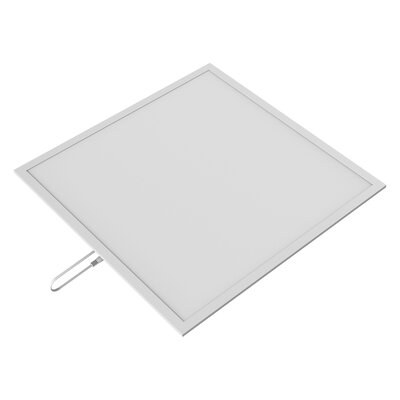

LED VALUE PANEL BACKLIT G2 0606

LED VALUE PANEL BACKLIT G2 0606

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm Yes
33.00 W 120 ° 3680 … 4000 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm Yes
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm Yes
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No


Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Luminous flux 3680 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 32.00 mm
Width 595.00 mm
Product weight 1650.00 g

Materials & Colors

Body material Steel
Mercury content 0.0 mg

Application & Mounting

Type of protection IP54/IP20
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Replaceable light source (EPREL) Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, RoHS

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854031557 Folding box
1
643 mm x 605 mm x 37 mm 2371.00 g 14.39 dm³
4099854031564 Shipping box
6
690 mm x 237 mm x 659 mm 15257.00 g 107.77 dm³
