Professional

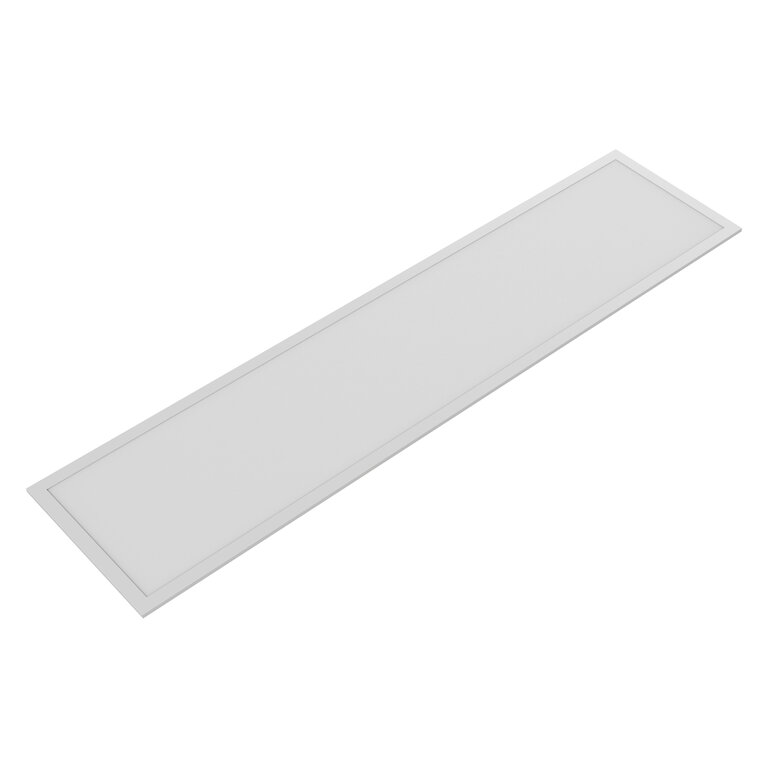

LED VALUE PANEL BACKLIT G2 0312

LED VALUE PANEL BACKLIT G2 0312

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 … 4000 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm Yes
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 3680 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm Yes
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm Yes
33.00 W 120 ° 4000 lm No
33.00 W 120 ° 4000 lm No


Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 33.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Luminous flux 3680 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 1195.00 mm
Height 32.00 mm
Width 295.00 mm
Product weight 1660.00 g

Materials & Colors

Body material Steel
Mercury content 0.0 mg

Application & Mounting

Type of protection IP40/IP20
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, RoHS
Replaceable light source (EPREL) Not replaceable

Additional product data

BEG eligible No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854031618 Folding box
1
1,243 mm x 305 mm x 42 mm 2333.00 g 15.92 dm³
4099854031625 Shipping box
6
1,287 mm x 267 mm x 359 mm 15203.00 g 123.36 dm³
