Professional

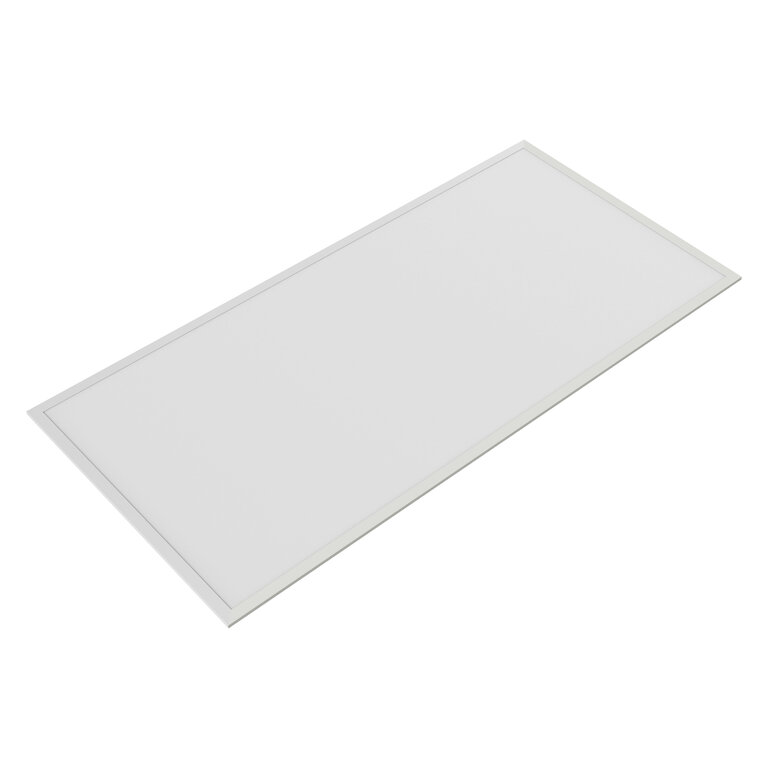

LED VALUE PANEL BACKLIT G2 0612

LED VALUE PANEL BACKLIT G2 0612

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
49.00 W 120 ° 5380 … 5850 lm No
49.00 W 120 ° 5380 lm No
49.00 W 120 ° 5380 lm No
49.00 W 120 ° 5380 lm No
49.00 W 120 ° 5380 lm No
49.00 W 120 ° 5380 lm Yes
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm Yes
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm No
49.00 W 120 ° 5850 lm Yes


Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 49.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Luminous flux 5380 … 5850 lm
Luminous efficacy 109 lm/W
Color temperature 3000…6500 K
Color rendering index Ra > 80
Beam angle 120 °

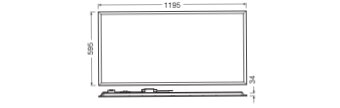

Dimensions & Weight

Length 1195.00 mm
Height 34.00 mm
Width 595.00 mm
Product weight 3195.00 g

Materials & Colors

Body material Steel
Mercury content 0.0 mg

Application & Mounting

Type of protection IP40
Dimmable No
Mounting type Recessed/Suspended/Surface
Application environment Indoor
LED module replaceable Not replaceable
Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854270260 Folding box
1
1,251 mm x 42 mm x 603 mm 3762.00 g 31.68 dm³
4099854270277 Shipping box
4
1,310 mm x 230 mm x 670 mm 16903.00 g 201.87 dm³
