Professional
PANEL VALUE 600

PANEL VALUE 600

Choose your product version

36 W 3000 K WT DALI

36 W 3000 K WT

36 W 4000 K WT DALI

36 W 4000 K WT

36 W 6500 K WT

36 W 6500 K WT DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL VAL 600 36 W 3000 K WT DALI 36.00 W 25000 120 ° 3600 lm Yes
PANEL VAL 600 36 W 3000 K WT 36.00 W 25000 120 ° 3600 lm No
PANEL VAL 600 36 W 4000 K WT DALI 36.00 W 25000 120 ° 3600 lm Yes
PANEL VAL 600 36 W 4000 K WT 36.00 W 25000 120 ° 3600 lm No
PANEL VAL 600 36 W 6500 K WT 36.00 W 25000 120 ° 3600 lm No
PANEL VAL 600 36 W 6500 K WT DALI 36.00 W 25000 120 ° 3600 lm Yes


PANEL VAL 600 36 W 3000 K WT DALI

Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 100 lm/W
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 178.000 mA
Inrush current 10.4 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 23
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3600 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 35.00 mm
Width 595.00 mm
Product weight 1800.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Type of connection Screwless terminal
Type of protection IP40
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 580 mm
Mounting width 580 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Value for money luminaire
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 100 lm/W
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Lifetime (L70/B50): up to 50,000 h (at 25 °C)
  • Extruded aluminum frame
  • Polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Security brackets included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075392441 Folding box
1		 602 mm x 40 mm x 648 mm 2192.00 g 15.60 dm³
4058075392458 Shipping box
4		 667 mm x 182 mm x 634 mm 10015.00 g 76.96 dm³
Product image Product name EAN
EM CONVERSION BOX 4058075237025
PANEL Suspension Kit 4058075402928
PANEL 600 SURFACE MOUNT KIT H70 VAL 4058075402843
CONNECTOR BOX 5POLE L/N/PE/D+/D- 4x 4058075473034
PANEL SECURITY KIT 4x 4058075472990
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
PANEL 600 RECESSED MOUNT FRAME 4058075402881
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
User Instruction / Safety Instructions
PL VAL DALI 600 625 PDF (1.75 MB)
Legal information
LSI PL VAL AND PL VAL DALI PDF (1.3 MB)
Legal information
LSI PL VAL AND PL VAL DALI PDF (1.3 MB)

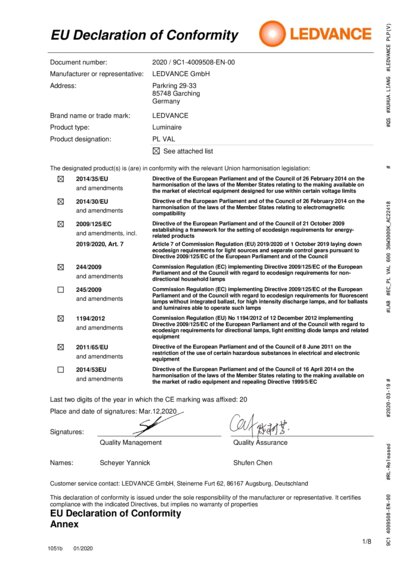

Declarations of conformity
PL VAL DALI PDF (275.53 KB)

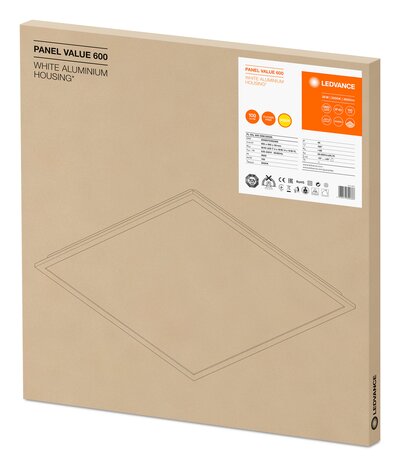

Product Image, Diagonal, White BG
PANEL JPG (975.86 KB)
Product Image, Horizontal, White BG
PANEL JPG (1.3 MB)
Product line drawing with letters
PL VAL 600 36W TPB SVG (9.86 KB)
Product line drawing with numbers
PL VAL 600 36W TPB SVG (16.27 KB)
Prod.line drw, front, no dimensions
PL VAL 600 36W TPB JPG (37.57 KB)

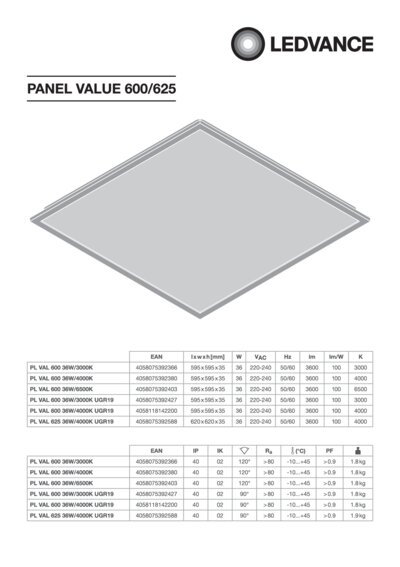

Catalog info 1
Panel VALUE DALI 600 6 25 SVG (131.3 KB)
Catalog info 2
Panel VALUE DALI 600 6 25 SVG (120.1 KB)
Catalog info 5
Panel COMFORT DALI 600 625 SVG (142.28 KB)
IES file (IES)
PL VAL DALI 600 36W 30 00K IES (2.05 KB)
LDT file (Eulumdat)
PL VAL DALI 600 36W300 0K LDT (11 KB)
ULD file (DIALux)
PL VAL DALI 600 36W-30 00K ULD (89.6 KB)
ROLF file (RELUX)
PL VAL DALI 600 ROLF (4.1 KB)

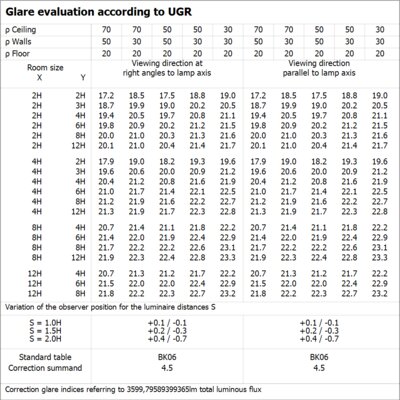

UGR file (UGR table)
PL VAL DALI 600 36W 30 00K PNG (56.36 KB)
LDC typ cone
PL VAL DALI 600 36W 30 00K SVG (58.55 KB)
LDC typ polar
PL VAL DALI 600 36W 30 00K SVG (326.02 KB)
Tender documents
PANEL VALUE 600 36 W 3 000 K WT DALI-EN TXT (1.59 KB)
EAN SEG number STK number EFO number ELDAS number
4058075392441 7018123 4283685 3000478 941402460
