PANEL VALUE 600 EMERGENCY

PANEL VALUE 600 EMERGENCY

Choose your product version

40 W 4000 K AT 3H

40 W 6500 K AT 3H

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL VAL 600 EM 40 W 4000 K AT 3H 40.00 W 25000 120 ° 3600 lm No
PANEL VAL 600 EM 40 W 6500 K AT 3H 40.00 W 25000 120 ° 3600 lm No


PANEL VAL 600 EM 40 W 6500 K AT 3H

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Value for money luminaire
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Low flicker light thanks to special electronic control gear
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 290.000 mA
Inrush current 26 A
Inrush current time Th50 90 µs
Max. number of luminaires per miniature circuit breaker B16 42
Max. number of luminaires per miniature circuit breaker C10 33
Max. number of luminaires per miniature circuit breaker C16 52
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3600 lm
Luminous efficacy 90 lm/W
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °

Dimensions & Weight

Length 595.00 mm
Height 9.00 mm
Width 595.00 mm
Product weight 2200.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+45 °C
Temperature range at storage 5…+35 °C
Type of connection Screw terminal, 2-POLE (N, L. L switchable)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 40 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 3600 lm
Luminous flux in emergency operation mode 360 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, EAC, RoHS
Ball shot safe No
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Value for money luminaire
  • Light guide plate with micro structure made of non-yellowing material for long lifetime
  • Low flicker light thanks to special electronic control gear
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Reception areas, foyers, corridors, elevators
  • Offices, conference rooms
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Luminaire suited for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Aluminum housing, polystyrene diffuser
Equipment / Accessories
  • External control gear included
  • Control LED with a holder for recessed installation included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075204126 Folding box
1		 646 mm x 48 mm x 737 mm 2715.00 g 22.85 dm³
4058075204133 Shipping box
4		 750 mm x 210 mm x 658 mm 11615.00 g 103.64 dm³
User Instruction / Safety Instructions
UI PANEL VALUE EM PDF (4.08 MB)
Declarations of conformity
CE declaration of Pane l Value PDF (798.42 KB)
Product Image, Diagonal, White BG
PanelLED Value 600 40W TIF (22.43 MB)
Product Image, Upright, White BG
PanelLED Value 600 40W TIF (56.19 MB)
Product line drawing with letters
PANEL VALUE EM SVG (54.92 KB)
Product line drawing with letters
PanelLED Value 600 40W SVG (7.06 KB)
Product line drawing with numbers
PanelLED Value 600 40W SVG (7.1 KB)
Product line drawing with numbers
PANEL VALUE EM SVG (60.86 KB)
Product line drawing - technical
PANEL VALUE EM SVG (52.09 KB)

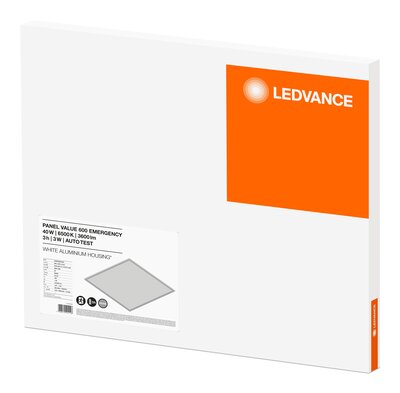

Packaging image, spacial
Panel Value 600 EM 40W 865 MiCh Side TIF (72.87 MB)
IES file (IES)
PL VAL 600 40W 6500K E M AT 3H IES (26.79 KB)
LDT file (Eulumdat)
PL VAL 600 40W 6500K E M AT 3H LDT (28.4 KB)
UGR file (UGR table)
PL VAL 600 40W 6500K E M AT 3H PNG (60.27 KB)
LDC typ cone
PL VAL 600 40W 6500K E M AT 3H SVG (83.36 KB)
LDC typ polar
PL VAL 600 40W 6500K E M AT 3H SVG (251.69 KB)
EAN STK number
4058075204126 4283648
