Professional
PANEL VALUE 600 UGR < 19

PANEL VALUE 600 UGR < 19

Choose your product version

36 W 3000 K WT DALI

36 W 3000 K WT

36 W 4000 K WT

36 W 4000 K WT DALI

40 W 3000 K WT

40 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL VAL 600 UGR < 19 36 W 3000 K WT DALI 36.00 W 25000 90 ° 3600 lm Yes
PANEL VAL 600 UGR < 19 36 W 3000 K WT 36.00 W 25000 90 ° 3600 lm No
PANEL VAL 600 UGR < 19 36 W 4000 K WT 36.00 W 25000 90 ° 3600 lm No
PANEL VAL 600 UGR < 19 36 W 4000 K WT DALI 36.00 W 25000 90 ° 3600 lm Yes
PANEL VAL 600 UGR < 19 40 W 3000 K WT 40.00 W 30000 90 ° 3300 lm No
PANEL VAL 600 UGR < 19 40 W 4000 K WT 40.00 W 30000 90 ° 3600 lm No


PANEL VAL 600 UGR < 19 40 W 4000 K WT

Product benefits
  • Value for money luminaire
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 100 lm/W
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 290 mA
Inrush current 26 A
Inrush current time Th50 90 µs
Max. number of luminaires per miniature circuit breaker B16 22
Max. number of luminaires per miniature circuit breaker C10 19
Max. number of luminaires per miniature circuit breaker C16 30
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3600 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 90 °
UGR < 19

Dimensions & Weight

Length 595.00 mm
Height 9.00 mm
Width 595.00 mm
Product weight 2110.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polystyrene (PS)
Light emitting surface material Polystyrene
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+45 °C
Temperature range at storage -25…+60 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting length 575 mm
Mounting width 575 mm
Mounting depth 50,0 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output voltage 30…42 V
Output current 1000 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, CB
Ball shot safe No
Product benefits
  • Value for money luminaire
  • Good glare reduction (UGR < 19)
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 100 lm/W
  • External driver for extended flexibility and easy installation
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
  • Lifetime (L70/B50): up to 50,000 h (at 25 °C)
  • Extruded aluminum frame
  • Polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • External control gear included
  • Security brackets included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075066663 Folding box
1		 50 mm x 665 mm x 640 mm 2965.00 g 21.28 dm³
4058075066670 Shipping box
4		 657 mm x 211 mm x 688 mm 12900.00 g 95.38 dm³
User Instruction / Safety Instructions
User Instruction Panel LED Value PDF (2.61 MB)
On-Pack-Info
Legal Insert Panel PDF (226.51 KB)
Declarations of conformity
Attestation of Conform ity Panel LED Value 60 0 PDF (673.65 KB)
Declarations of conformity
EU Declaration of Conf ormity Panel LED Value LEDV PDF (668.5 KB)
Certificates
Test Report L17303 Pan el Value 40W PDF (325.59 KB)
Product Image, Diagonal, White BG
PanelLED Value 600 40W TIF (22.43 MB)
Product Image, Upright, White BG
PanelLED Value 600 40W TIF (56.19 MB)
Product line drawing with letters
PanelLED Value 600 40W SVG (7.06 KB)
Product line drawing with numbers
PanelLED Value 600 40W SVG (7.1 KB)

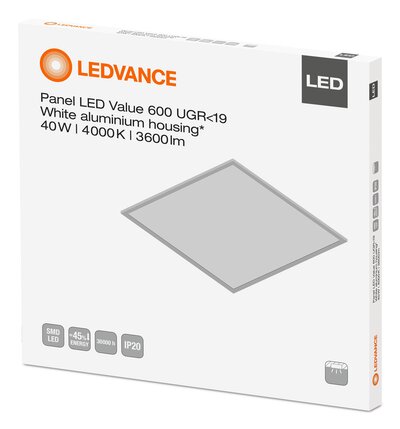

Packaging image, spacial
Panel LED VALUE 600 40 W 840 UGR MiCh Side TIF (62.57 MB)
IES file (IES)
PanelLED Value 600 40W 4000k UGR19 IES (26.84 KB)
LDT file (Eulumdat)
PanelLED Value 600 40W 4000k UGR19 LDT (27.94 KB)
ULD file (DIALux)
PANELVALUE600UGR1940W4 000KWT ULD (176.13 KB)
UGR file (UGR table)
4058075066663 PanelLED Value 600 40W 4000k U GR19 PNG (62.18 KB)
LDC typ cone
4058075066663 PanelLED Value 600 40W 4000k U GR19 SVG (83.58 KB)
Video
LEDVANCE Panel LED Val ue UGR19 EN MP4 (80.61 MB)
Video
LEDVANCE LUM Installat ion Video EN Panel Acc essories MP4 (199.16 MB)
EAN SEG number STK number EFO number
4058075066663 7015284 4295674 3206990
