Professional
LED PERFORMANCE SOLAR STREETLIGHT

LED PERFORMANCE SOLAR STREETLIGHT

Choose your product version

10.00 W/3000 K

10.00 W/3000 K

10.00 W/4000 K

10.00 W/4000 K

10.00 W/6500 K

10.00 W/6500 K

20.00 W/3000 K

20.00 W/3000 K

20.00 W/4000 K

20.00 W/4000 K

20.00 W/6500 K

20.00 W/6500 K

30.00 W/3000 K

30.00 W/3000 K

30.00 W/4000 K

30.00 W/4000 K

30.00 W/6500 K

30.00 W/6500 K

40.00 W/3000 K

40.00 W/3000 K

40.00 W/4000 K

40.00 W/4000 K

40.00 W/6500 K

40.00 W/6500 K

50.00 W/3000 K

50.00 W/3000 K

50.00 W/4000 K

50.00 W/4000 K

50.00 W/6500 K

50.00 W/6500 K

60.00 W/3000 K

60.00 W/3000 K

60.00 W/4000 K

60.00 W/4000 K

60.00 W/6500 K

60.00 W/6500 K

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LDPFM SOLAR ST 10.00 W/3000 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 10.00 W/3000 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 10.00 W/4000 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 10.00 W/4000 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 10.00 W/6500 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 10.00 W/6500 K 10.00 W 30 ° x 150 ° 1850 lm No
LDPFM SOLAR ST 20.00 W/3000 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 20.00 W/3000 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 20.00 W/4000 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 20.00 W/4000 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 20.00 W/6500 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 20.00 W/6500 K 20.00 W 30 ° x 150 ° 3700 lm No
LDPFM SOLAR ST 30.00 W/3000 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 30.00 W/3000 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 30.00 W/4000 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 30.00 W/4000 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 30.00 W/6500 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 30.00 W/6500 K 30.00 W 30 ° x 150 ° 5550 lm No
LDPFM SOLAR ST 40.00 W/3000 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 40.00 W/3000 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 40.00 W/4000 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 40.00 W/4000 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 40.00 W/6500 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 40.00 W/6500 K 40.00 W 30 ° x 150 ° 7400 lm No
LDPFM SOLAR ST 50.00 W/3000 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 50.00 W/3000 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 50.00 W/4000 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 50.00 W/4000 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 50.00 W/6500 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 50.00 W/6500 K 50.00 W 30 ° x 150 ° 9250 lm No
LDPFM SOLAR ST 60.00 W/3000 K 60.00 W 30 ° x 150 ° 11100 lm No
LDPFM SOLAR ST 60.00 W/3000 K 60.00 W 30 ° x 150 ° 11100 lm No
LDPFM SOLAR ST 60.00 W/4000 K 60.00 W 30 ° x 150 ° 11100 lm No
LDPFM SOLAR ST 60.00 W/4000 K 60.00 W 30 ° x 150 ° 11100 lm No
LDPFM SOLAR ST 60.00 W/6500 K 60.00 W 30 ° x 150 ° 11100 lm No
LDPFM SOLAR ST 60.00 W/6500 K 60.00 W 30 ° x 150 ° 11100 lm No

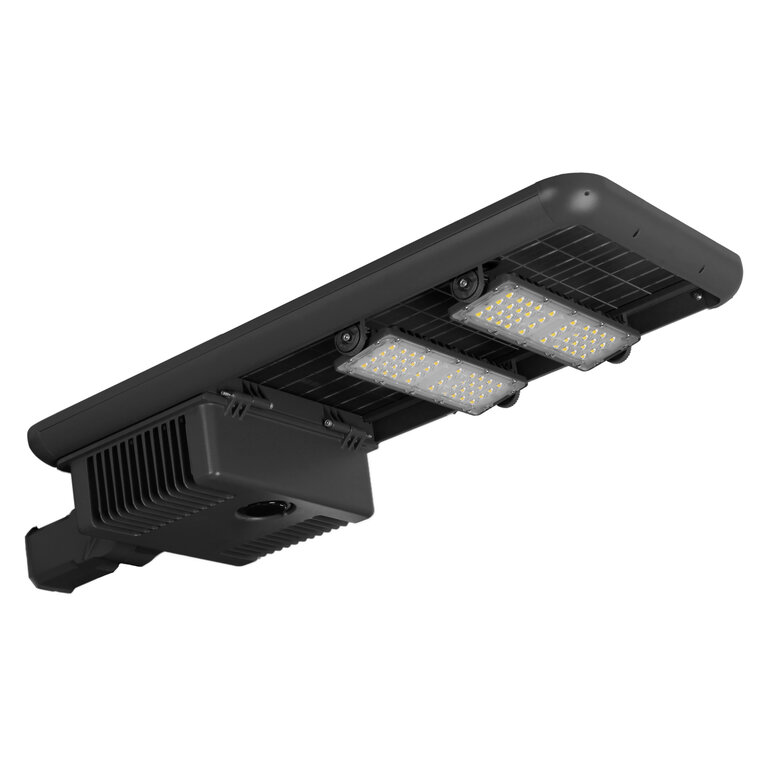

LDPFM SOLAR ST 30.00 W/4000 K

Product benefits
  • All-in-one design, no wiring required, flexible installation
  • Extremely high system luminous efficacy 185 lm-W to maximize the battery performance
  • Rotatable LED module, ensures the light to reach the target surface amply
  • Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel
  • Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Protection class III
Operating mode Battery

Photometrical data

Luminous flux 5550 lm
Luminous efficacy 185 lm/W
Color temperature 4000 K
Light color (designation) White
Color rendering index Ra > 70
Beam angle 30 ° x 150 °

Dimensions & Weight

Length 897.00 mm
Height 130.00 mm
Width 358.00 mm
Product weight 12900.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range 0…+50 °C
Type of protection IP66
Protection class IK (shock resistance) IK07
Dimmable No
Mounting type Side entry
Mounting location Pole
Application environment Outdoor
LED module replaceable Not replaceable

Sensor

Type of sensor Motion

BATTERY

Battery size [GMS] Others
Product benefits
  • All-in-one design, no wiring required, flexible installation
  • Extremely high system luminous efficacy 185 lm-W to maximize the battery performance
  • Rotatable LED module, ensures the light to reach the target surface amply
  • Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel
  • Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions
Areas of application
  • Streets
  • Road lighting
  • Rural areas, villages
  • Parks
  • Areas where no power supply is available
Product features
  • System wattage 10 W, 20 W, 30 W, 40 W, 50 W and 60 W
  • Battery technology: LiFePO4
  • Battery overcharge, overdischarge, overheat and short circuit protections
  • Available with and without motion sensor
  • Meet ME4 road lighting class requirement thanks to professional optical design
  • Intelligent controller, rainy day intelligent delay
  • Automatically on-off according to brightness of daylight
  • Type of protection: IP66
  • Certificate: CB
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075563162 Shipping box
1		 950 mm x 443 mm x 184 mm 14650.00 g 77.44 dm³
User Instruction / Safety Instructions
LED PERFORMANCE SOLAR STREETLIGHT PDF (6.36 MB)
Product Image, Spacial, White BG
LDPFM SOLAR ST 30W MWS JPG (1.12 MB)
Product line drawing with numbers
LDPFM SOLAR ST 30W SVG (2.34 MB)
IES file (IES)
LDPFM SOLAR ST 30W IES (32.57 KB)
EAN AU model number
4058075563162 P-SOLST-30-MWS-740
