Professional

SPOT COMBO ADJUST

Choose your product version

V 6W CPS DIM 60DEG IP65 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SP CBO ADJ V 6W CPS DIM 60DEG IP65 WT 6 W / 4 W 25000 60 ° 600 lm / 400 lm Yes

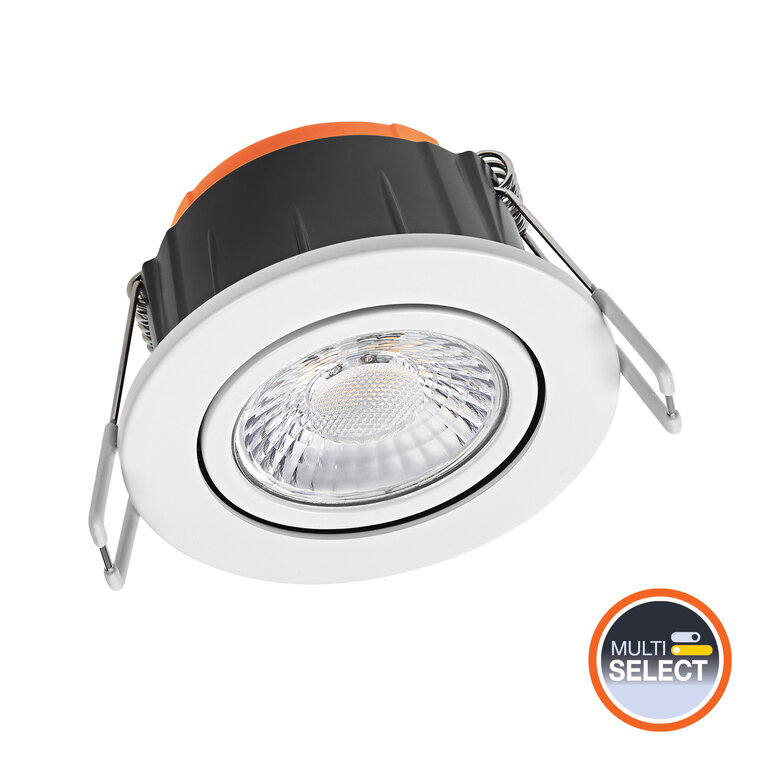

SP CBO ADJ V 6W CPS DIM 60DEG IP65 WT

Product benefits

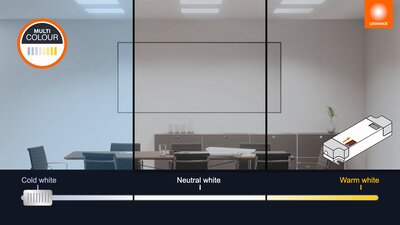

  • Color temperature adjustment via switch on the back of the spot

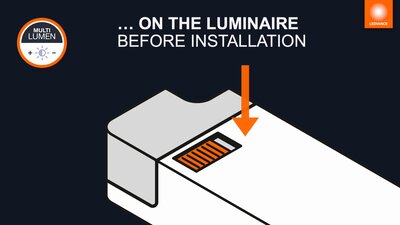

  • Power select: Brightness adjustment via a switch on the driver
  • Coverable with most of the isolation material
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W / 4 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 27…19 mA
Inrush current 0.86 A
Inrush current time Th50 28 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 40 %
Protection class II
Operating mode Electronic control gear (ECG)

Photometrical data

Luminous flux 600 lm / 400 lm 1)
Luminous efficacy 92 lm/W 2)
Color temperature 2700 K / 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 90
Standard deviation of color matching < 6 sdcm
Luminous intensity 610 cd
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °

1) 580 lm / 380 lm @3000K, 550 lm / 350 lm @2700K
2) 97 lm/W / 95 lm/W @3000K, 92 lm/W / 88 lm/W @2700K

Dimensions & Weight

Diameter 81.50 mm
Height 48.00 mm
Product weight 195.00 g
Cable length 600 mm

Materials & Colors

Product color White
Housing color White
Body material Aluminum|Plastic
Cover material Plastic
Light emitting surface material Plastic
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push terminal
Type of protection IP65/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 48 mm
Adjustable Yes
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 18000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 100 mA
ECG - Output ripple current < 30 %
ECG - Length 100 mm
ECG - Width 46,5 mm
ECG - Height 25,5 mm

Certificates & Standards

Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(103597-45-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Color temperature adjustment via switch on the back of the spot
  • Power select: Brightness adjustment via a switch on the driver
  • Coverable with most of the isolation material
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Color temperature switch (CCT): 2700 K, 3000 K, 4000 K
  • Power select option available to select between 2 lumen packages
  • Type of protection: IP65 (room side)
  • Housing material: polycarbonate (PC)
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round and square shape and in different colors
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075845091 Folding box
1		 77 mm x 107 mm x 98 mm 241.00 g 0.81 dm³
4058075845107 Shipping box
20		 402 mm x 228 mm x 222 mm 5172.00 g 20.35 dm³
User instruction / safety instructions
SP CBO FIX/ADJ V 6W CP S DIM60DEG IP65 WT PDF (2.57 MB)
Legal information
Legal Insert SPOT COMB O PDF (2.56 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

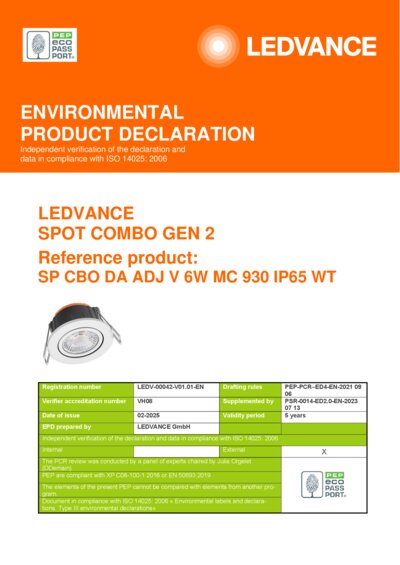

Declarations of conformity
SPOT COMBO GEN2 PDF (249.3 KB)
Product image: white background, horizontal
SPOT COMBO ADJ Additio nal product images JPG (1.03 MB)

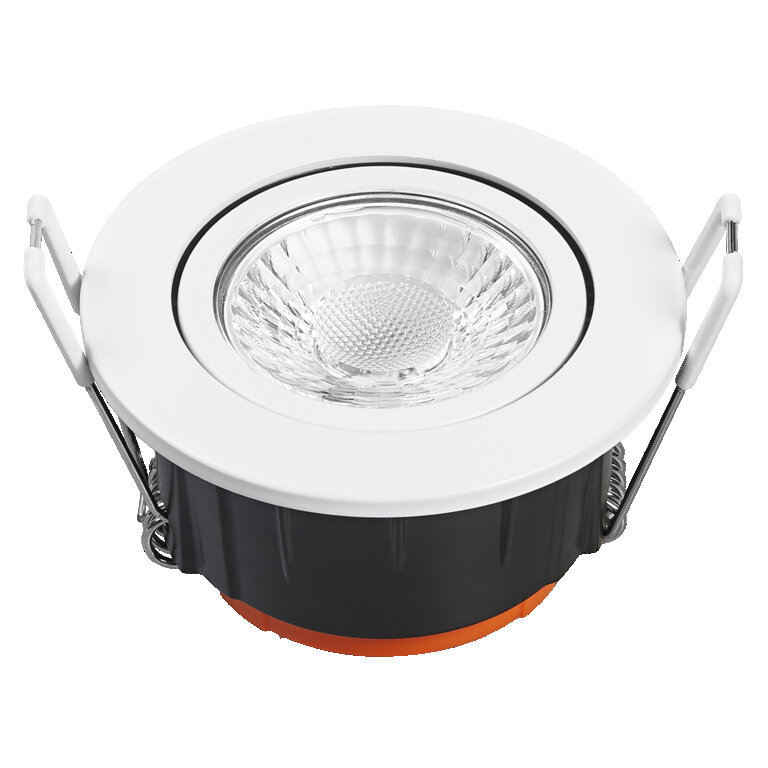

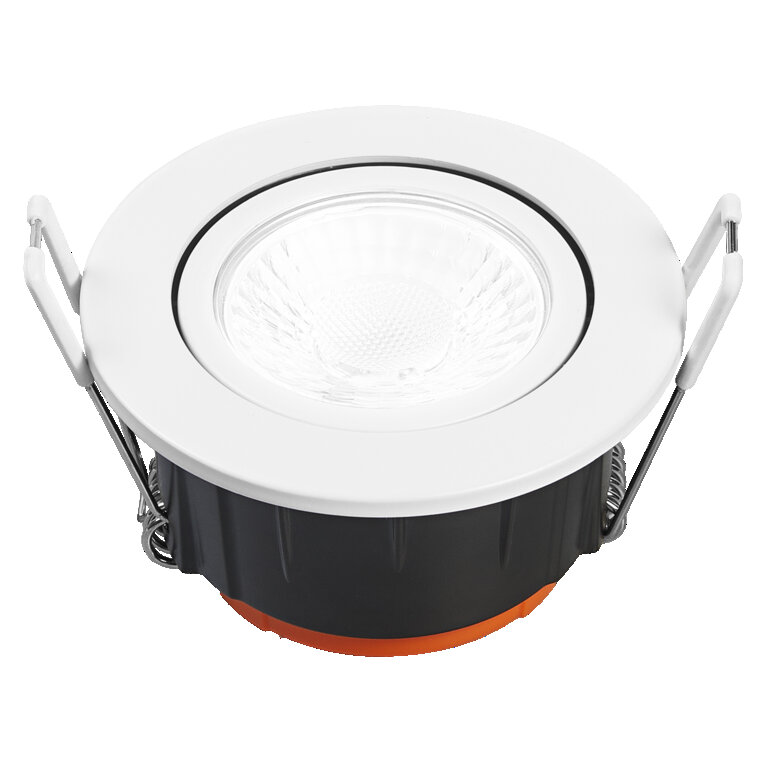

Product image: white background, upright
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT JPG (770 KB)

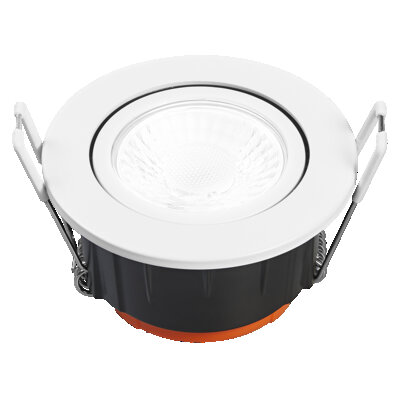

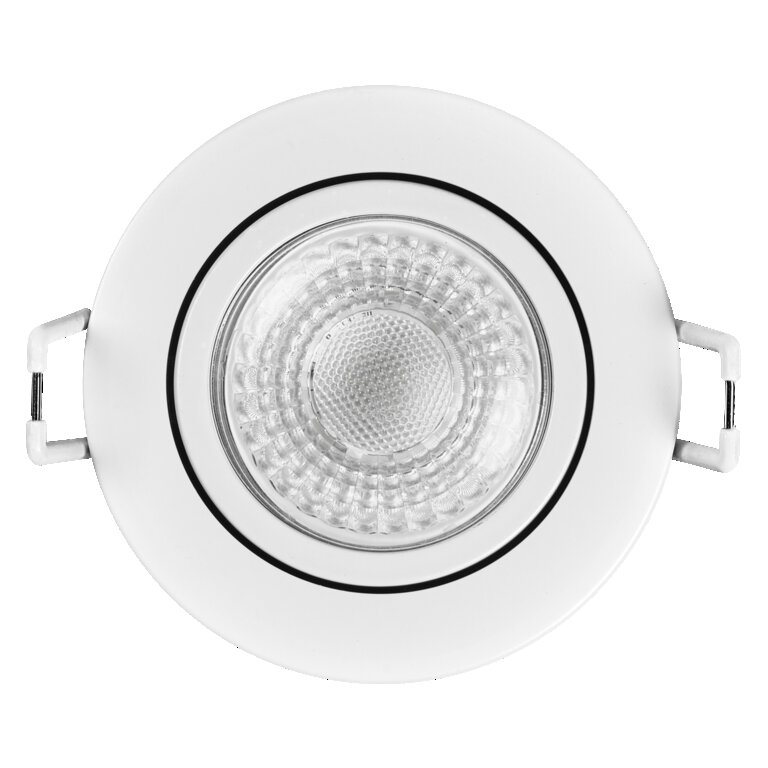

Product image: white background, upright, alternative image
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT JPG (751.18 KB)

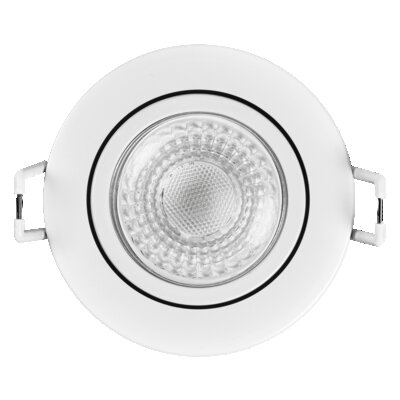

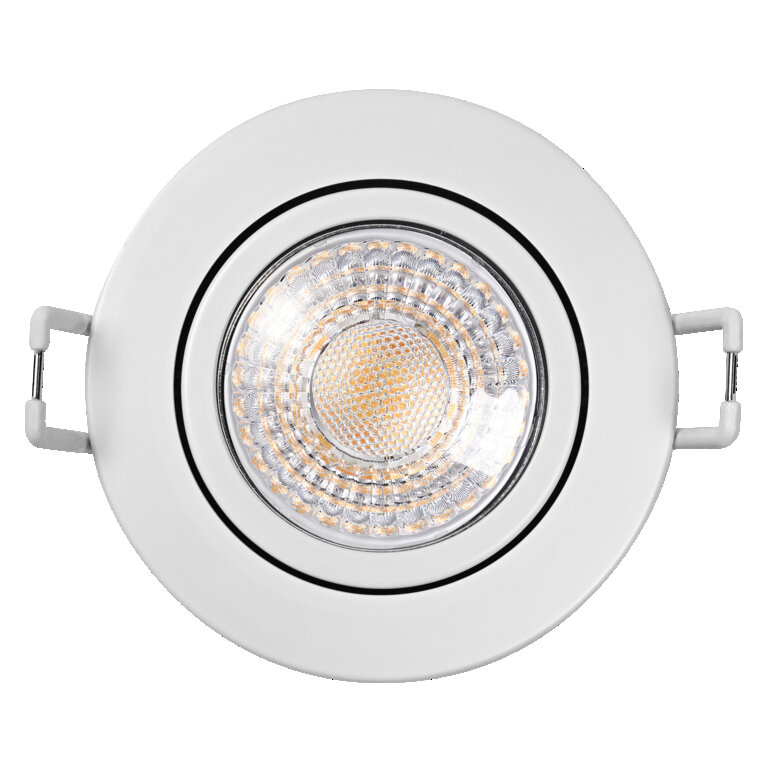

Product image: white background, upright, switched on
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT JPG (665.86 KB)

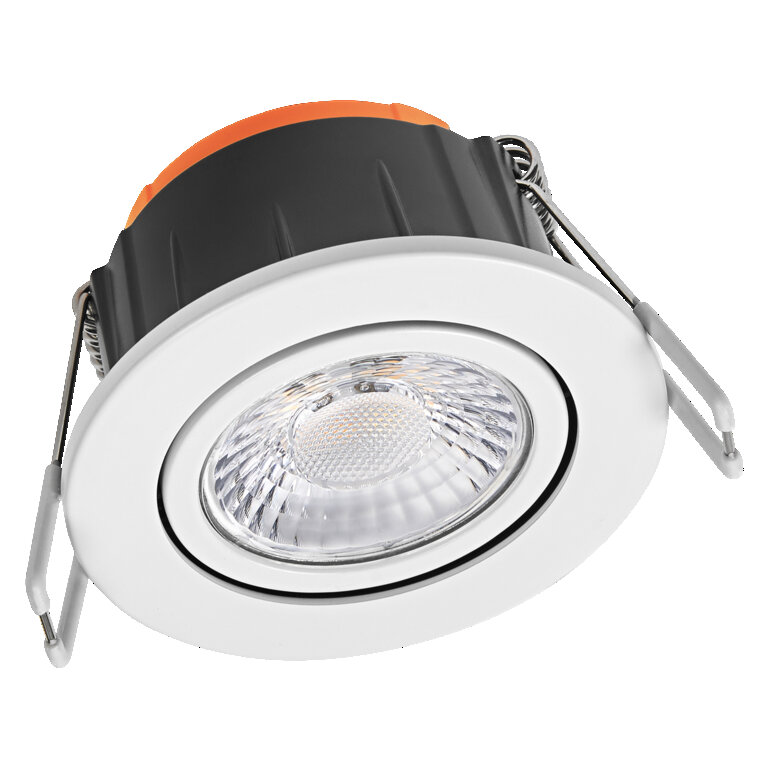

Product image: white background, spacial
SPOT COMBO ADJ Additio nal product images JPG (885.26 KB)

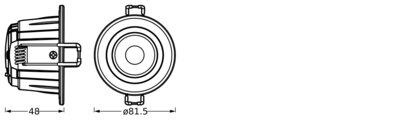

Product line drawing with letters
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT SVG (365.2 KB)
Product line drawing with numbers
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT PNG (41.47 KB)
Product line drawing, front, no dimensions
SP ADJ3.6/5.5W927/30/4 0 60DEGIP65WT SVG (271.19 KB)

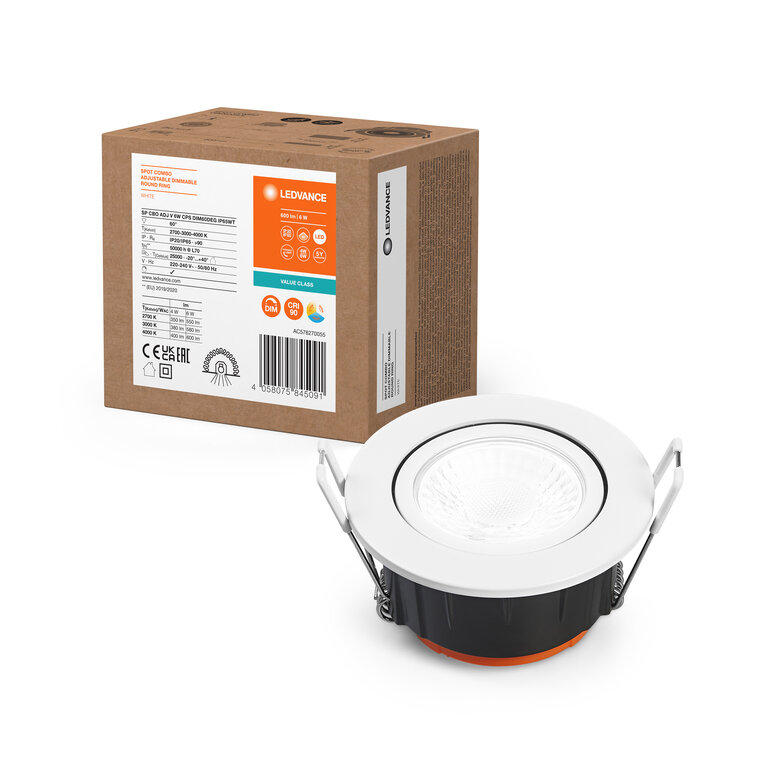

Combo Shot = Product Beauty Shot + Packaging Image
SP CBO ADJ 6W WT JPG (991.54 KB)

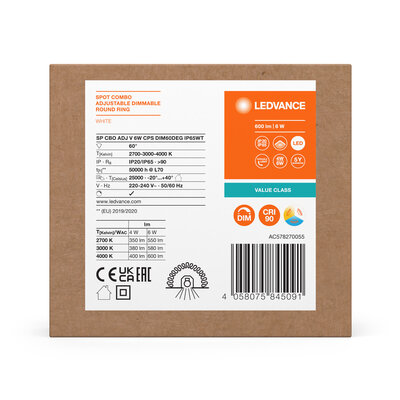

Packaging image, frontal
SP CBO ADJ 6W WT JPG (965.16 KB)

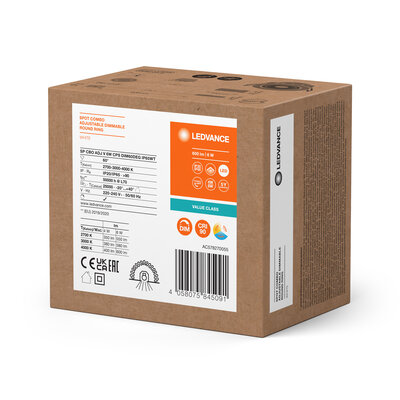

Packaging image, spacial
SP CBO ADJ V 6W WT JPG (1.23 MB)
Catalog info 1
CIA 1 SPOT COMBO PNG (255.13 KB)
Catalog info 2
CIA 2 SPOT COMBO PNG (271.64 KB)
IES file (IES)
SP CBO ADJ V 6W 927 CP S DIM 60DEG IP65WT 550 lm IES (3.26 KB)
IES file (IES)
SP CBO ADJ V 6W 930 CP S DIM 60DEG IP65WT 580 lm IES (3.26 KB)
IES file (IES)
SP CBO ADJ V 6W 940 CP S DIM 60DEG IP65WT 600 lm IES (3.26 KB)
LDT file (Eulumdat)
SP CBO ADJ V 6W 927 CP S DIM 60DEG IP65WT 550 lm LDT (2.9 KB)
LDT file (Eulumdat)
SP CBO ADJ V 6W 930 CP S DIM 60DEG IP65WT 580 lm LDT (2.9 KB)
LDT file (Eulumdat)
SP CBO ADJ V 6W 940 CP S DIM 60DEG IP65WT 600 lm LDT (2.9 KB)
ULD file (DIALux)
SP CBO ADJ V 6W CPS DI M60DEG IP65WT ULD (159.74 KB)
ROLF file (RELUX)
SP CBO ADJ V 6W CPS DI M60DEG IP65WT ROLF (1.06 MB)

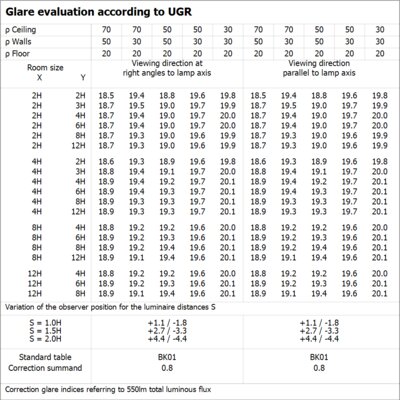

UGR file (UGR table)
SP CBO ADJ V 6W 927 CP S DIM 60DEG IP65WT 550 lm PNG (56.39 KB)

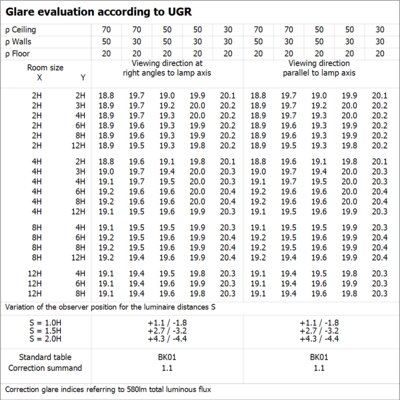

UGR file (UGR table)
SP CBO ADJ V 6W 930 CP S DIM 60DEG IP65WT 580 lm PNG (56.24 KB)
UGR file (UGR table)
SP CBO ADJ V 6W 940 CP S DIM 60DEG IP65WT 600 lm PNG (55.58 KB)
Light distribution curve type cone
SP CBO ADJ V 6W 927 CP S DIM 60DEG IP65WT 550 lm SVG (11.42 KB)
Light distribution curve type cone
SP CBO ADJ V 6W 930 CP S DIM 60DEG IP65WT 580 lm SVG (11.42 KB)
Light distribution curve type cone
SP CBO ADJ V 6W 940 CP S DIM 60DEG IP65WT 600 lm SVG (11.42 KB)
Light distribution curve type polar
SP CBO ADJ V 6W 927 CP S DIM 60DEG IP65WT 550 lm SVG (17.59 KB)
Light distribution curve type polar
SP CBO ADJ V 6W 930 CP S DIM 60DEG IP65WT 580 lm SVG (17.59 KB)
Light distribution curve type polar
SP CBO ADJ V 6W 940 CP S DIM 60DEG IP65WT 600 lm SVG (17.59 KB)
BIM Revit 3D
Spot Combo G2 ZIP (1.19 MB)
BIM Revit 3D
Spot Combo G2 RFA (1.72 MB)
CAD STEP 3D
SP CBO ADJ STEP (737.46 KB)
Tender documents
SPOT COMBO ADJUST V 6W CPS DIM 60DEG IP65 WT -EN TXT (2.36 KB)

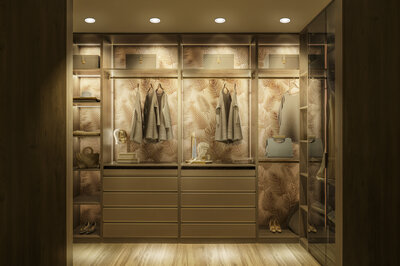

Application pictures Getty
SPOT RING ADJ RD WT 27 00K JPG (9.8 MB)
Application pictures Getty
SPOT RING ADJ RD WT 30 00K JPG (9.45 MB)

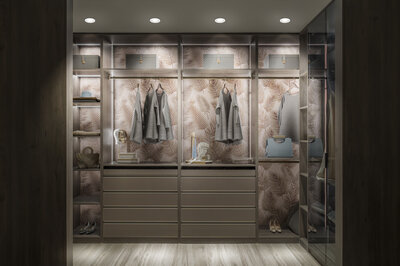

Application pictures Getty
SPOT RING ADJ RD WT 40 00K JPG (9.19 MB)
Video
Spot Combo - English MP4 (27.26 MB)
EAN SEG number STK number
4058075845091 7452704 4152069
