Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

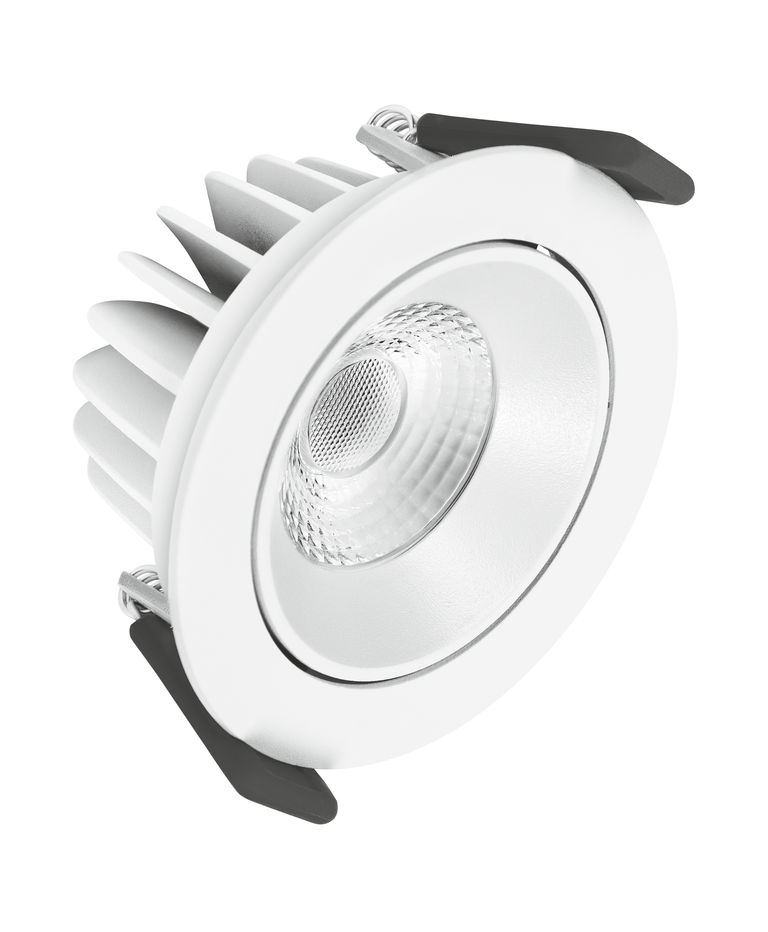

| SPOT ADJUST DALI 8 W 3000 K IP20 WT | 8.00 W | 100000 | 36 ° | 660 lm | Yes |
| SPOT ADJUST DALI 8 W 4000 K IP20 WT | 8.00 W | 100000 | 36 ° | 720 lm | Yes |
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 16 A |
| Inrush current time Th50 | 255 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 128 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 660 lm |
| Luminous efficacy | 85 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 36 ° |
| Diameter | 90.00 mm |
| Height | 47.00 mm |
| Product weight | 224.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 83 mm |
| Mounting depth | 90 mm |
| Adjustable | Yes |
| Replaceable light source (EPREL) | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

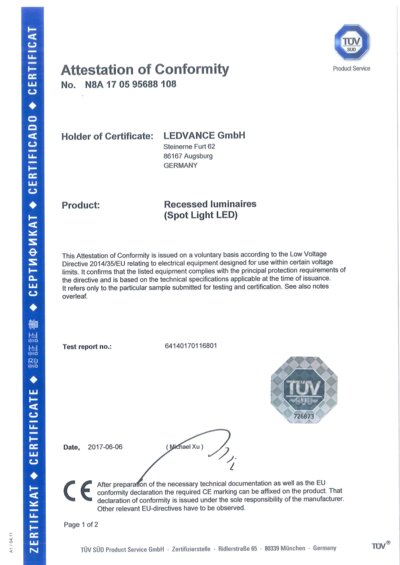

| Standards | CE, CB, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075219946 | Folding box 1 |
118 mm x 229 mm x 120 mm | 297.00 g | 3.24 dm³ |
| 4058075219953 | Shipping box 10 |
614 mm x 248 mm x 273 mm | 3516.00 g | 41.57 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075219946 | 7451454 | 4266664 | 3242448 | 941401650 |
