Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

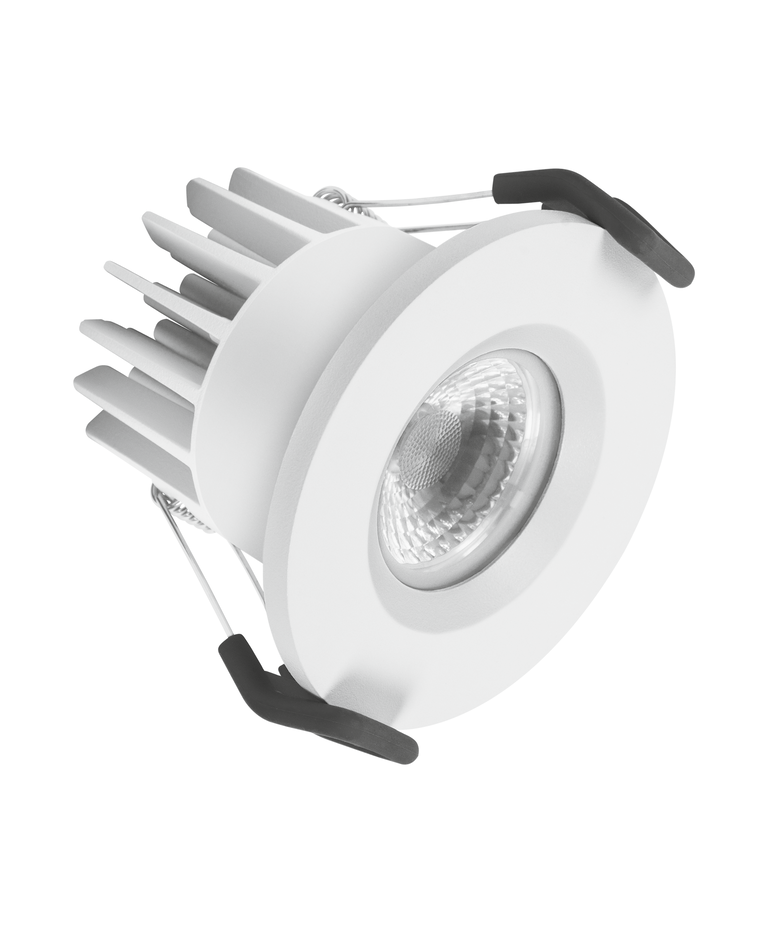

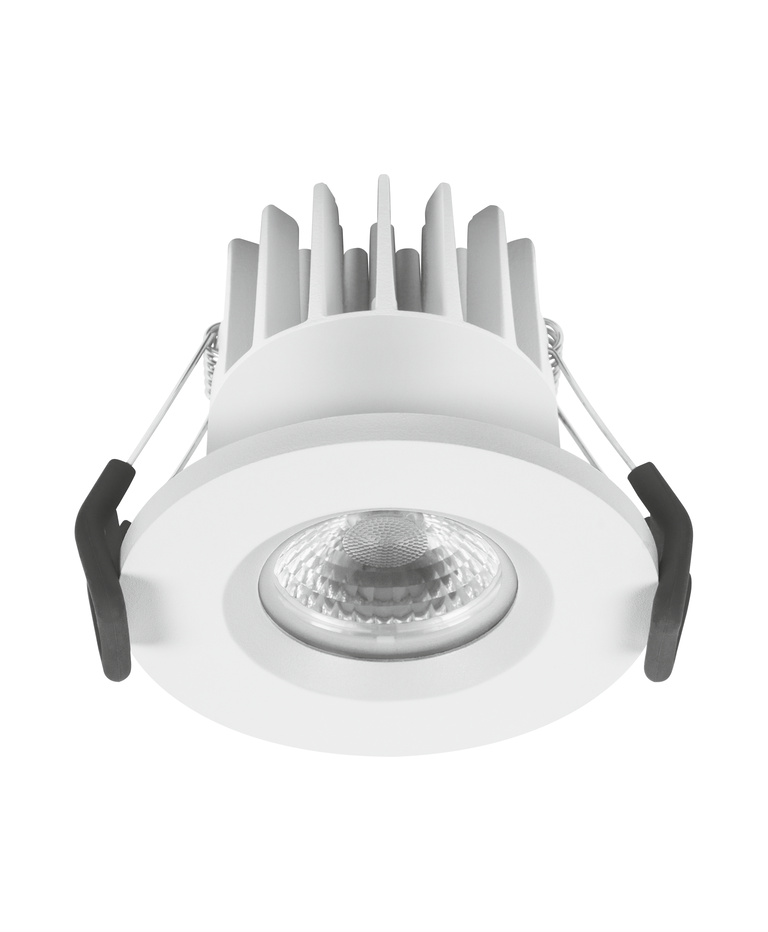

| SPOT FP FIX 7 W 3000 K IP65/IP20 WT | 7.00 W | 100000 | 38 ° | 530 lm | No |
| Nominal wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 30 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 32 |
| Max. number of luminaires per miniature circuit breaker C10 | 25 |
| Max. number of luminaires per miniature circuit breaker C16 | 40 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
| Luminous flux | 530 lm |
| Luminous efficacy | 75 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤4 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 38 ° |
| Diameter | 90.00 mm |
| Height | 72.00 mm |
| Product weight | 289.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP65/IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 68 mm |
| Mounting depth | 90 mm |
| Replaceable light source (EPREL) | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075127333 | Folding box 1 |
190 mm x 100 mm x 110 mm | 398.00 g | 2.09 dm³ |
| 4058075190627 | Folding box 1 |
190 mm x 100 mm x 110 mm | 398.00 g | 2.09 dm³ |
| 4058075190634 | Shipping box 20 |
525 mm x 400 mm x 250 mm | 8720.00 g | 52.50 dm³ |
| 4058075127340 | Shipping box 20 |
525 mm x 400 mm x 250 mm | 8720.00 g | 52.50 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075127333 | 7451272 | 4110680 | 3241041 | 941400740 |
