Professional
SPOT KIT

SPOT KIT

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SP KIT ADJ 7 W 4000 K GU10 DIM 7.00 W 100000 36 ° 500 lm Yes

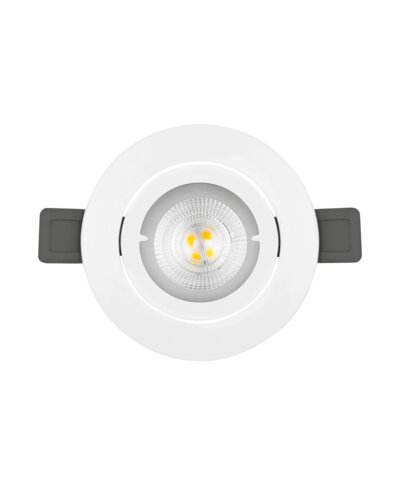

SP KIT ADJ 7 W 4000 K GU10 DIM

Product benefits
  • Direct replacement for conventional 50 W halogen luminaires
  • Energy savings of up to 90 % compared to conventional recessed luminaires
  • Single spot optics
  • White die-cast zinc alloy ring
  • Replaceable LED lamp
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 35.000 mA
Power factor λ > 0.80
Total harmonic distortion < 60 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 500 lm
Luminous efficacy 70 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 36 °
UGR < 19

Dimensions & Weight

Diameter 88.50 mm
Height 107.00 mm
Product weight 210.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming LEA/TR.EDG
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 75,0 mm
Mounting depth 150 mm

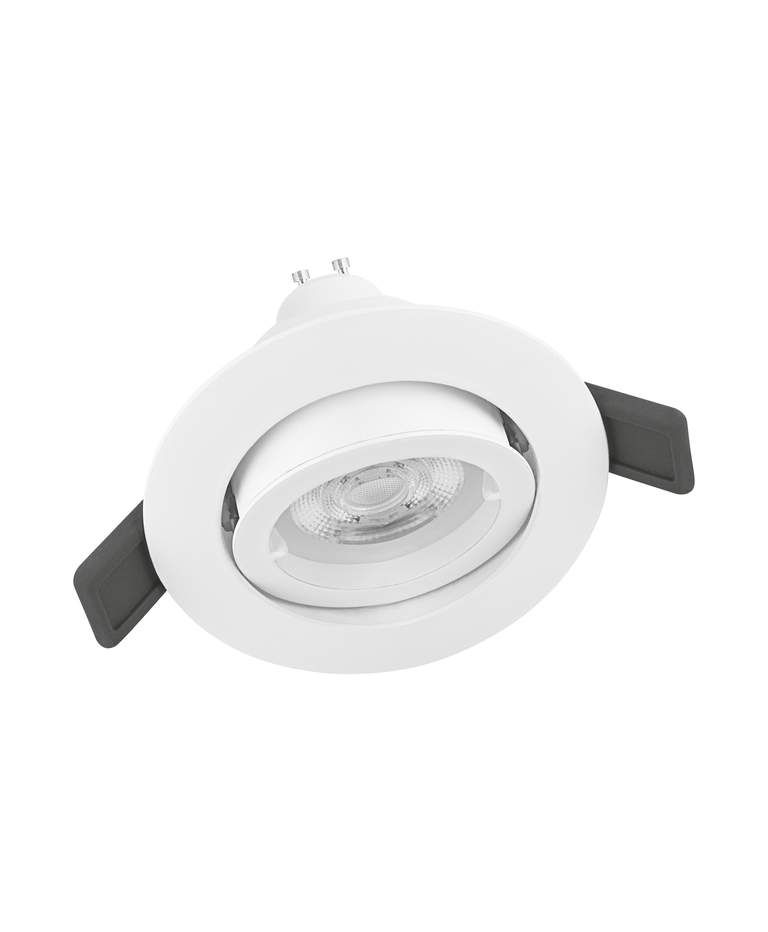

Adjustable Yes
With light source No
Holder designation GU10

Lifespan

Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

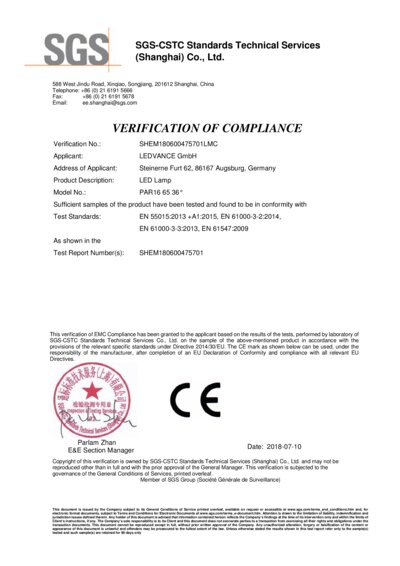

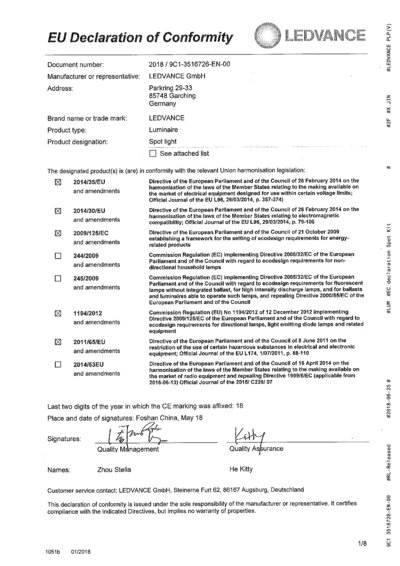

Standards CE, CB, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants 1

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Direct replacement for conventional 50 W halogen luminaires
  • Energy savings of up to 90 % compared to conventional recessed luminaires
  • Single spot optics
  • White die-cast zinc alloy ring
  • Replaceable LED lamp
  • 3 years guarantee
Areas of application
  • Corridors
  • Shop lighting
  • Living rooms
  • Foyers
Product features
  • Luminaire efficacy: up to 84 lm/W
  • Luminous flux: up to 420 lm
  • Beam angle: 36°
  • Spot can be swiveld 20° into all directions
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

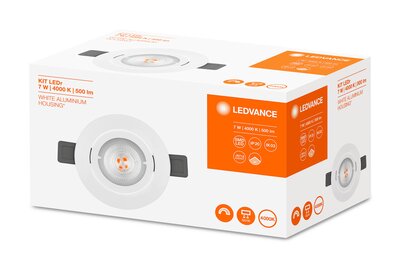

4058075156784 Folding box
1
150 mm x 95 mm x 85 mm 241.00 g 1.21 dm³
4058075156791 Shipping box
6
481 mm x 212 mm x 123 mm 1703.00 g 12.54 dm³
EAN STK number ELDAS number
4058075156784 4295683 941400540
