Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| URB LTRN V 29W ASYM PS 822-827 IP66 GY | 29 W / 25 W / 20.0 W / 15 W | 100000 | 165° x 65 ° | 3538 lm / 3050 lm / 2440 lm / 1830 lm | No |
| URB LTRN V 29W ASYM PS 822-827 IP66 BK | 29 W / 25 W / 20.0 W / 15 W | 100000 | 165° x 65 ° | 3538 lm / 3050 lm / 2440 lm / 1830 lm | No |
| URB LTRN V 29W ASYM PS 830-840 IP66 GY | 29 W / 25 W / 20.0 W / 15 W | 100000 | 165° x 65 ° | 3945 lm / 3400 lm / 2720 lm / 2040 lm | No |
| URB LTRN V 29W ASYM PS 830-840 IP66 BK | 29 W / 25 W / 20.0 W / 15 W | 100000 | 165° x 65 ° | 3945 lm / 3400 lm / 2720 lm / 2040 lm | No |
| URB LTRN V 59W ASYM PS 822-827 IP66 GY | 59 W / 49 W / 42 W / 34 W | 100000 | 165° x 65 ° | 7375 lm / 6125 lm / 5250 lm / 4250 lm | No |
| URB LTRN V 59W ASYM PS 822-827 IP66 BK | 59 W / 49 W / 42 W / 34 W | 100000 | 165° x 65 ° | 7375 lm / 6125 lm / 5250 lm / 4250 lm | No |
| URB LTRN V 59W ASYM PS 830-840 IP66 GY | 59 W / 49 W / 42 W / 34 W | 100000 | 165° x 65 ° | 8200 lm / 6800 lm / 5840 lm / 4730 lm | No |
| URB LTRN V 59W ASYM PS 830-840 IP66 BK | 59 W / 49 W / 42 W / 34 W | 100000 | 165° x 65 ° | 8200 lm / 6800 lm / 5840 lm / 4730 lm | No |
| Nominal wattage | 29 W / 25 W / 20.0 W / 15 W 1) |
| Nominal voltage | 220…250 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 70-90-110-130 mA |
| Inrush current | 25.8 A |
| Inrush current time Th50 | 300 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 8 |
| Max. number of luminaires per miniature circuit breaker C10 | 8 |
| Max. number of luminaires per miniature circuit breaker C16 | 13 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Surge capability (L-N) | 6 kV |
| Operating mode | Integrated LED driver |

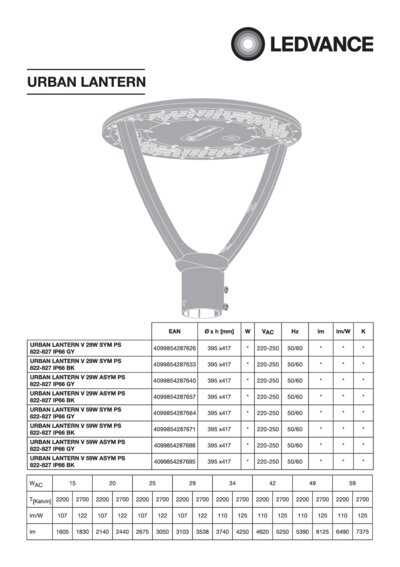

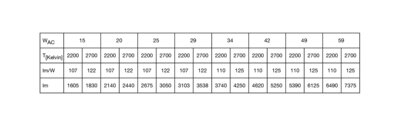

1) For possible options refer to lumen/power table image
| Luminous flux | 3538 lm / 3050 lm / 2440 lm / 1830 lm 1) |
| Luminous efficacy | 122 lm/W 1) |
| Color temperature | 2200 K / 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 165° x 65 ° |
1) For possible options refer to lumen/power table image
| Diameter | 395.00 mm |
| Height | 417.00 mm |
| Product weight | 4200.00 g |
| Cable length | 250 mm |
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 750 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -35…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Post top |
| Mounting location | Pole |
| Application environment | Outdoor |
| Adjustable | No |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 68000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 765…650…520…390 mA |
| ECG - Output ripple current | < 20 % |

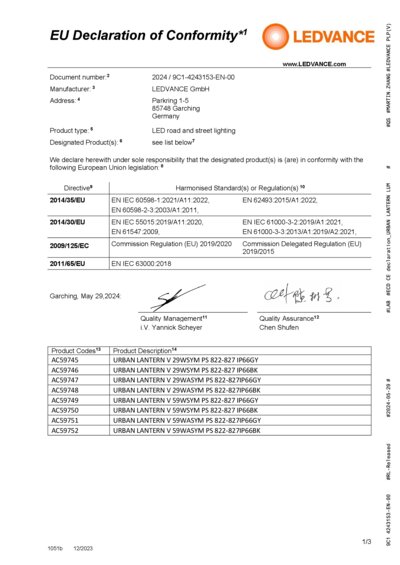

| Standards | CE, UKCA, EAC, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Added function | MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854287640 | Shipping box 1 |
435 mm x 435 mm x 220 mm | 4565.00 g | 41.63 dm³ |
| EAN | SEG number |
|---|---|
| 4099854287640 | 7750179 |
