LINEAR IndiviLED® DIRECT/INDIRECT GEN 1

LINEAR IndiviLED DIRECT/INDIRECT GEN 1

Choose your product version

1200 42 W 3000 K DALI

1200 42 W 3000 K

1200 42 W 4000 K

1200 42 W 4000 K DALI

1500 56 W 3000 K DALI

1500 56 W 3000 K

1500 56 W 4000 K

1500 56 W 4000 K DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INDV D/I 1200 42 W 3000 K DALI 42.00 W 100000 70 ° 4650 lm Yes
LN INDV D/I 1200 42 W 3000 K 42.00 W 100000 70 ° 4650 lm No
LN INDV D/I 1200 42 W 4000 K 42.00 W 100000 70 ° 5050 lm No
LN INDV D/I 1200 42 W 4000 K DALI 42.00 W 100000 70 ° 5050 lm Yes
LN INDV D/I 1500 56 W 3000 K DALI 56.00 W 100000 70 ° 6150 lm Yes
LN INDV D/I 1500 56 W 3000 K 56.00 W 100000 70 ° 6150 lm No
LN INDV D/I 1500 56 W 4000 K 56.00 W 100000 70 ° 6550 lm No
LN INDV D/I 1500 56 W 4000 K DALI 56.00 W 100000 70 ° 6550 lm Yes


LN INDV D/I 1200 42 W 3000 K DALI

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Increased light comfort thanks to direct and indirect light emission
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Robust structure with IK06
  • Versions with DALI ECG available
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 42.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 230 mA
Inrush current 35 A
Inrush current time Th50 300 µs
Max. number of luminaires per miniature circuit breaker B16 6
Max. number of luminaires per miniature circuit breaker C10 6
Max. number of luminaires per miniature circuit breaker C16 10
Power factor λ > 0.90
Total harmonic distortion ≤ 18 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4650 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 1199.00 mm
Height 40.00 mm
Width 120.00 mm
Product weight 2800.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Aluminum
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming DALI
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Increased light comfort thanks to direct and indirect light emission
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Robust structure with IK06
  • Versions with DALI ECG available
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, schools
  • General indoor illumination
  • Corridors, entrance areas
  • Seamless linear lighting
  • Shop lighting
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Indirect lighting with 850 lm
  • Pendant mounting with suspension kit
  • Linkable into seamless light line with line connection adapter (surface or pendant mounting)
  • Available with length of 1200 or 1500 mm
  • Luminous flux up to 6550 lm
  • Luminous efficacy: up to 120 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Lifetime (L70/B50): 60,000 h (at 25 °C)
Equipment / Accessories
  • Ceiling connection box available
  • Suspension kit available
  • Line connection adapter available
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

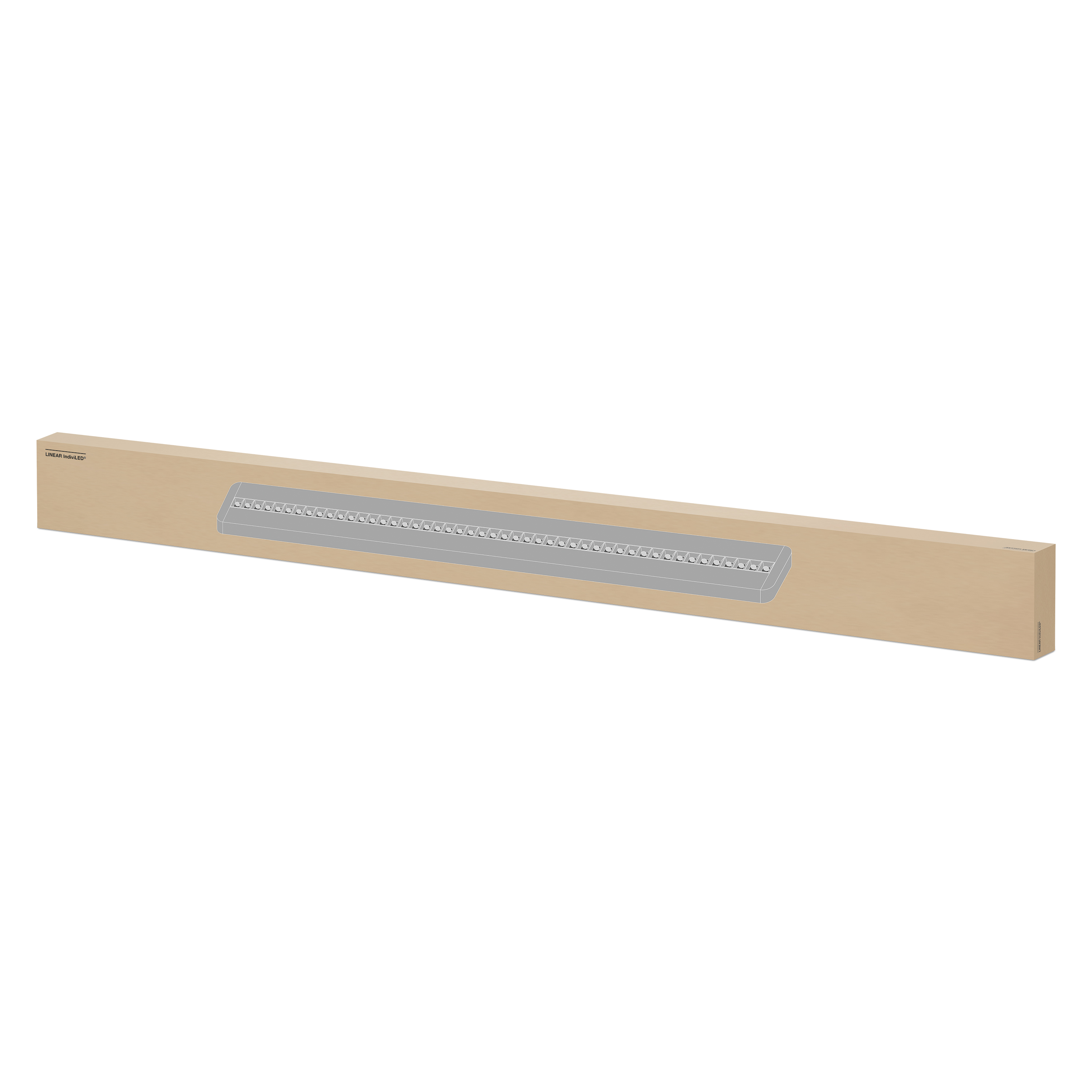

4058075109001 Folding box
1		 132 mm x 1,334 mm x 52 mm 2993.00 g 9.16 dm³
4058075109018 Shipping box
4		 1,357 mm x 207 mm x 169 mm 12902.00 g 47.47 dm³
User Instruction / Safety Instructions
User Instruction Linea r IndiviLED DALI PDF (3.71 MB)
On-Pack-Info

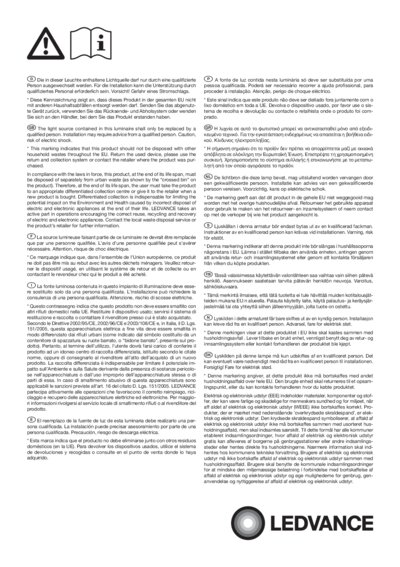

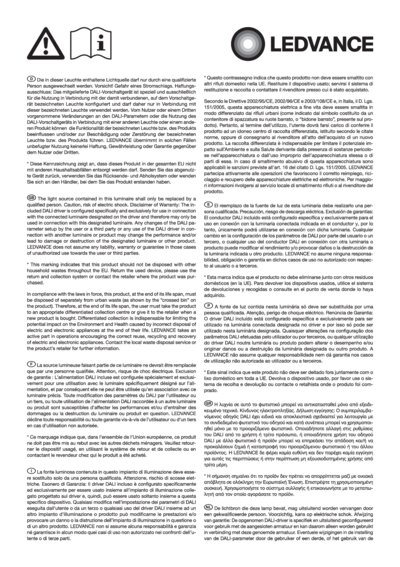

Legal Insert Linear LE D DALI INDV D/I PDF (5.38 MB)
Legal information
LS Insert LN INDV DALI EM PDF (1.36 MB)
Legal information
Legal Insert LN INDV D DALI PDF (4.47 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

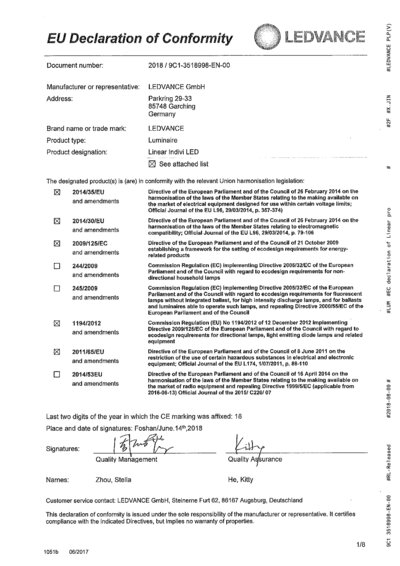

Declarations of conformity
EU Declaration of Conf ormity Linear IndiviLE D DALI LEDVANCE PDF (740.09 KB)

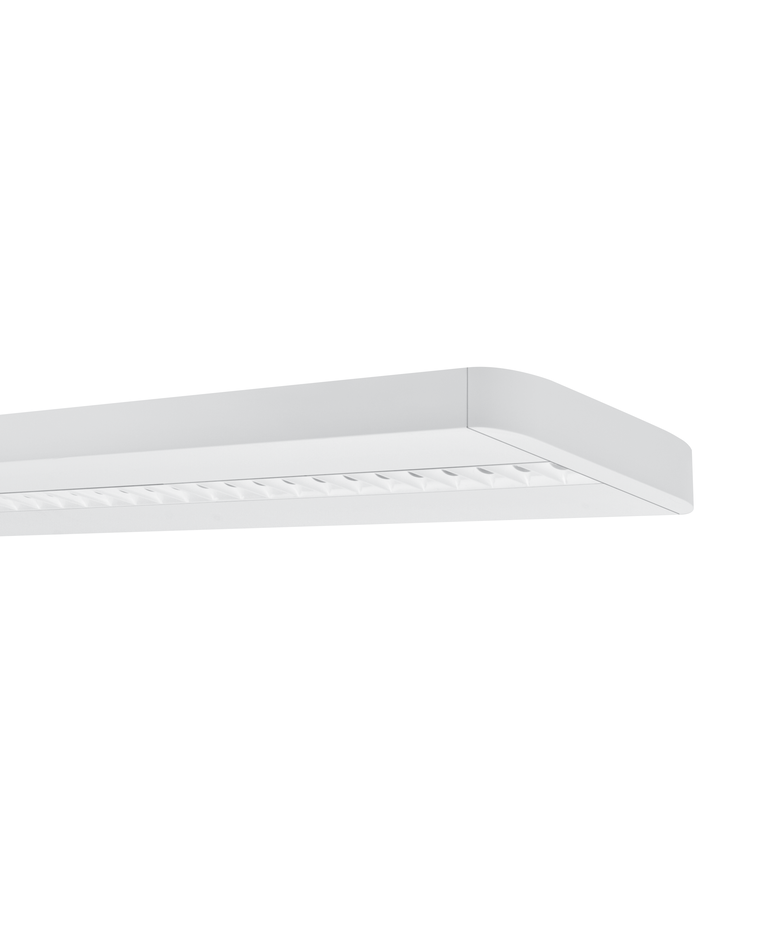

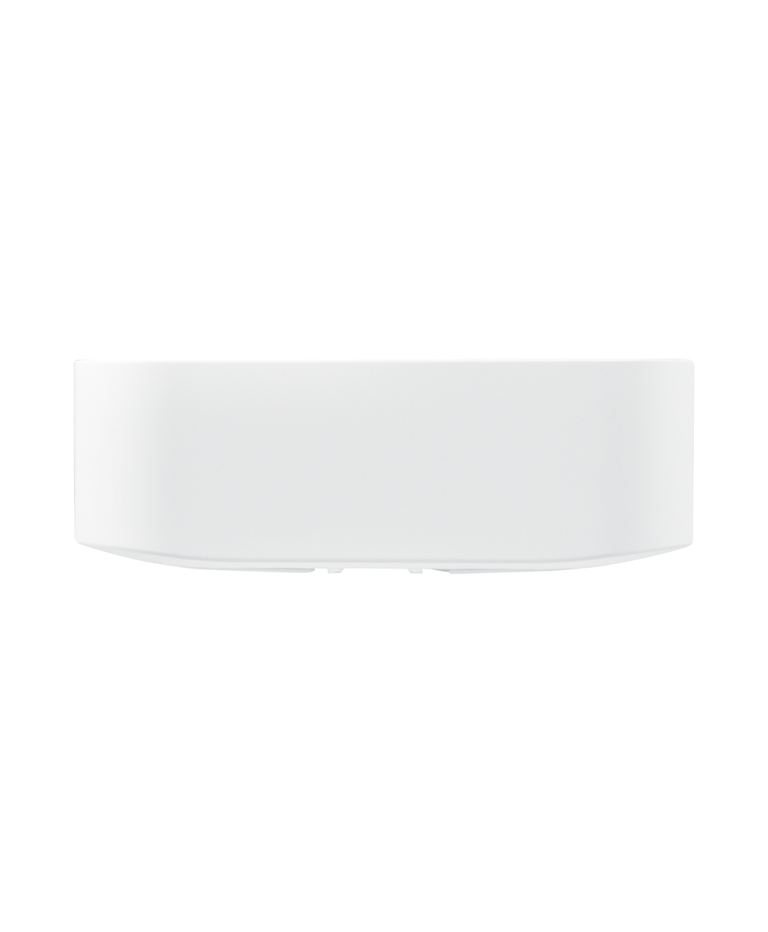

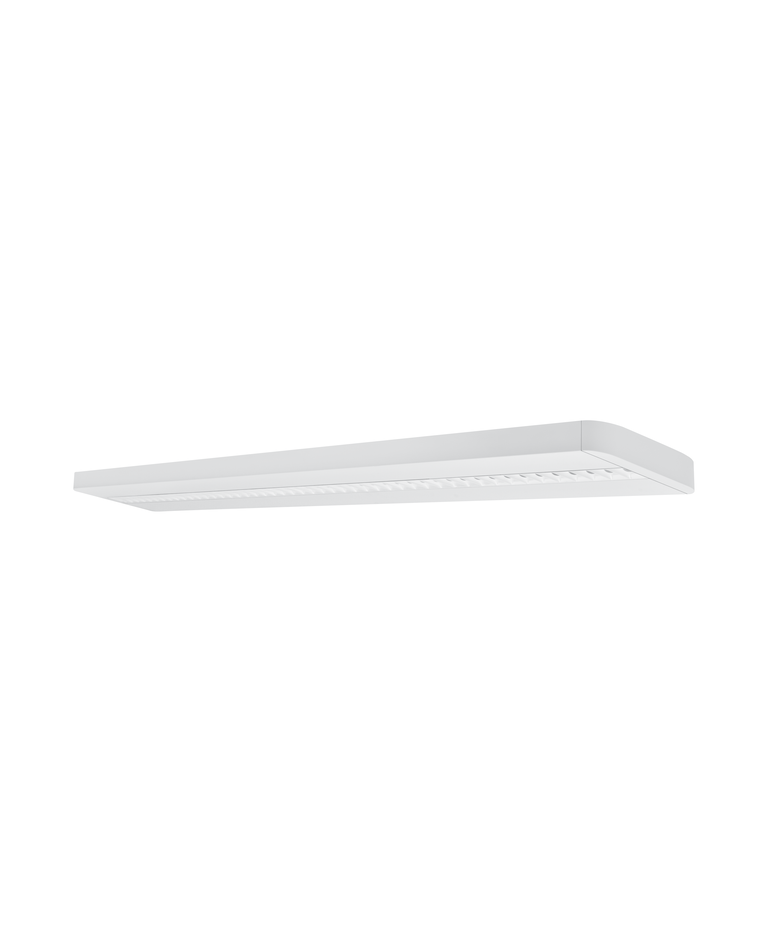

Product Image, Horizontal, White BG
LINEAR INDIVI LED D/I 1200 TIF (33.17 MB)

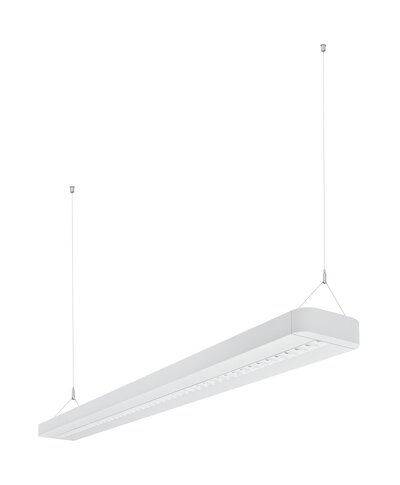

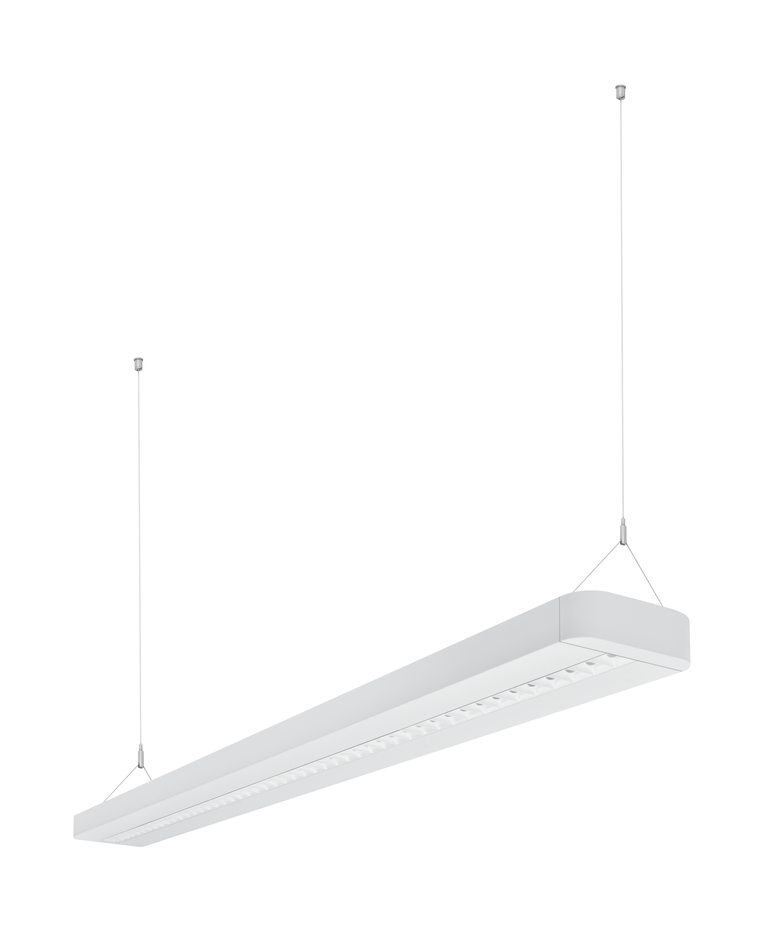

Product Image, Spacial, White BG
LINEAR INDIVI LED D/I 1200 TIF (28.03 MB)
Product line drawing with letters
LINEAR INDIVI LED D/I 1200 SVG (150.01 KB)
Product line drawing with numbers
LINEAR INDIVI LED D/I 1200 SVG (158.52 KB)
Product line drawing - technical
LINEAR INDIVI LED D/I 1200 SVG (146.86 KB)
Catalog info 2
Linear IndiviLED DALI SVG (128.31 KB)
IES file (IES)
LN INDV DI DALI 1200 4 2W 3000K IES (9.73 KB)
LDT file (Eulumdat)
LN INDV DI DALI 1200 4 2W 3000K LDT (10.04 KB)
ULD file (DIALux)
LINEARIndiviLEDDIRECTI NDIRECTDALI120042W3000 K ULD (974.85 KB)
ROLF file (RELUX)
LN INDV D-I DALI 1200 ROLF (120.25 KB)

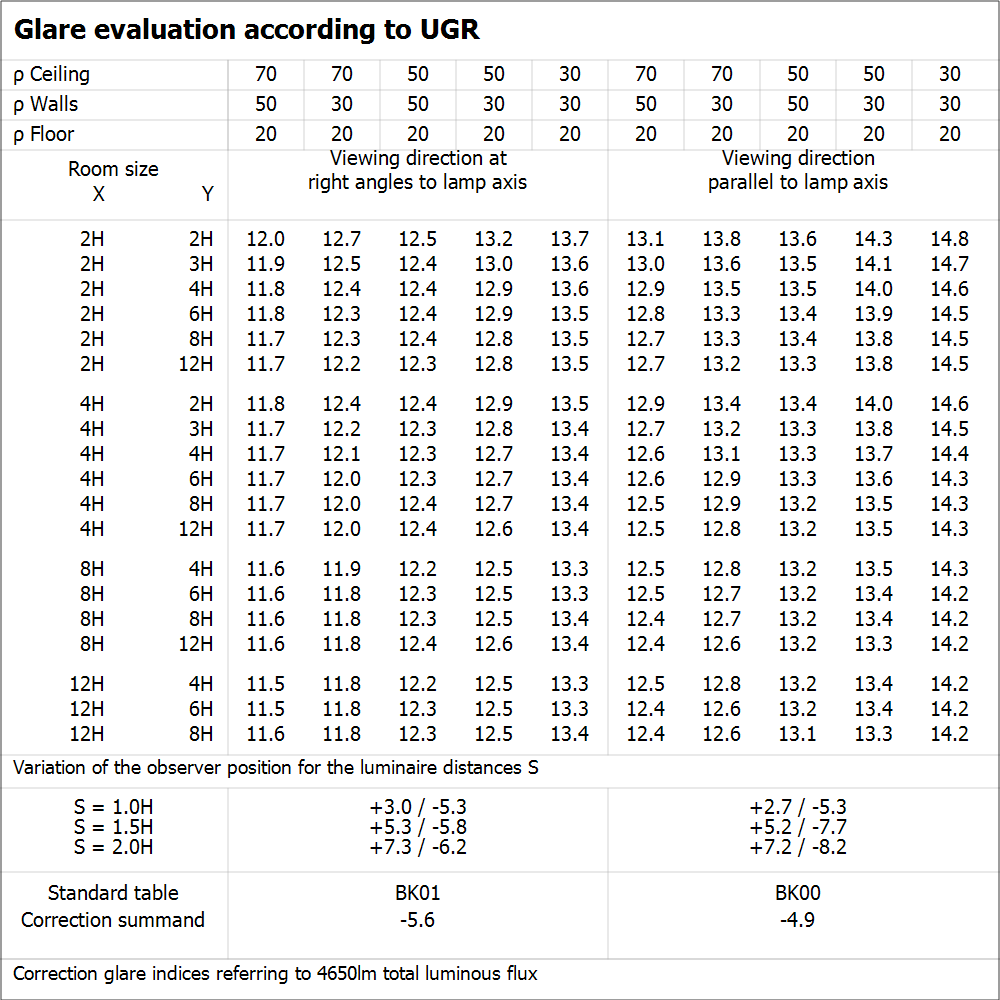

UGR file (UGR table)
LN INDV DI DALI 1200 4 2W 3000K PNG (59.95 KB)
LDC typ cone
LN INDV DI DALI 1200 4 2W 3000K SVG (85.27 KB)
LDC typ polar
LN INDV DI DALI 1200 4 2W 3000K SVG (588.68 KB)
CAD_STEP_3D
LN INDV D I 1200 STEP (2.49 MB)
Tender documents
LINEAR IndiviLED DIREC TINDIRECT 1200 42 W 30 00 K DALI-EN TXT (1.94 KB)
EAN SEG number STK number EFO number ELDAS number
4058075109001 7016126 4231895 3203379 941301120
