LINEAR IndiviLED® DIRECT GEN 1

LINEAR IndiviLED DIRECT GEN 1

Choose your product version

1500 25 W 940

1500 25 W 3000 K

1500 25 W 4000 K

1200 34 W 940

1200 34 W 3000 K

1200 34 W 4000 K

1500 48 W 940

1500 48 W 3000 K

1500 48 W 4000 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INDV D 1500 25 W 940 25.00 W 100000 70 ° 2800 lm No
LN INDV D 1500 25 W 3000 K 25.00 W 100000 70 ° 3100 lm No
LN INDV D 1500 25 W 4000 K 25.00 W 100000 70 ° 3300 lm No
LN INDV D 1200 34 W 940 34.00 W 100000 70 ° 3550 lm No
LN INDV D 1200 34 W 3000 K 34.00 W 100000 70 ° 3800 lm No
LN INDV D 1200 34 W 4000 K 34.00 W 100000 70 ° 4200 lm No
LN INDV D 1500 48 W 940 48.00 W 100000 70 ° 4800 lm No
LN INDV D 1500 48 W 3000 K 48.00 W 100000 70 ° 5300 lm No
LN INDV D 1500 48 W 4000 K 48.00 W 100000 70 ° 5700 lm No


LN INDV D 1500 25 W 940

Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Multiple mounting options
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
  • Robust structure with IK06
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 140 mA
Inrush current 20 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 37
Max. number of luminaires per miniature circuit breaker C10 30
Max. number of luminaires per miniature circuit breaker C16 48
Power factor λ > 0.90
Total harmonic distortion ≤ 18 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2800 lm
Luminous efficacy 110 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 90
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 1488.00 mm
Height 40.00 mm
Width 120.00 mm
Product weight 2900.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Aluminium
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Multiple mounting options
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
  • Robust structure with IK06
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, schools
  • General indoor illumination
  • Corridors, entrance areas
  • Seamless linear lighting
  • Shop lighting
Product features
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
  • Pendant mounting with suspension kit
  • Linkable into seamless light line with line connection adapter (surface or pendant mounting)
  • Available with length of 1200 or 1500 mm
  • Luminous flux up to 5700 lm
  • Luminous efficacy: up to 125 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Versions available with CRI 90
  • Luminaire versions with IoT-ready DALI-2 driver or IoT Zigbee 3.0 technology available
  • Lifetime (L70/B50): 60,000 h (at 25 °C)
Equipment / Accessories
  • Ceiling connection box available
  • Suspension kit available
  • Line connection adapter available
  • Through-wiring cable kit available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075522459 Folding box
1		 132 mm x 1,624 mm x 52 mm 3242.00 g 11.15 dm³
4058075522466 Shipping box
4		 1,641 mm x 207 mm x 169 mm 14098.00 g 57.41 dm³

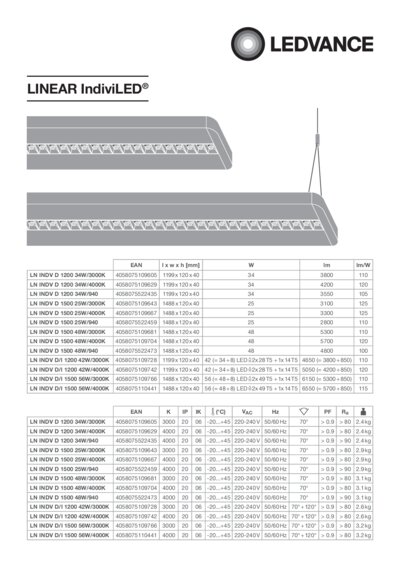

User Instruction / Safety Instructions
UI_Linear_IndiviLED PDF (4.34 MB)

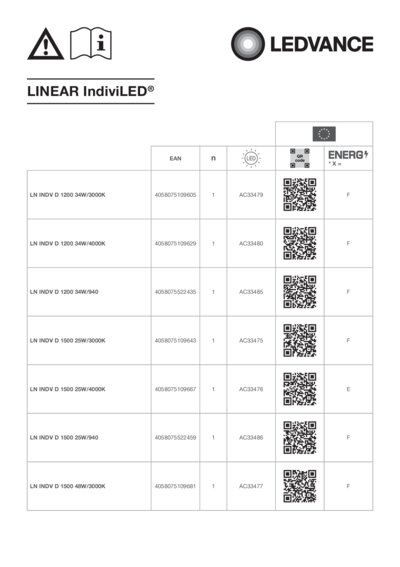

Legal information
LSI LINEAR IndiviLED PDF (1.24 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

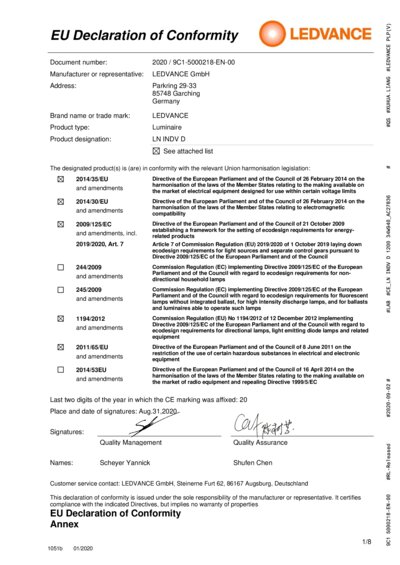

Declarations of conformity
LN INDV D PDF (275.49 KB)
Product Image, Diagonal, White BG
LINEAR INDIVILED DIREC T 1500 TIF (34.31 MB)
Product Image, Upright, White BG
LINEAR INDIVILED DIREC T 1500 TIF (23.12 MB)
Product Image, Spacial, White BG
LINEAR INDIVILED DIREC T 1500 TIF (46.38 MB)
Product line drawing with letters
LINEAR INDIVILED DIREC T 1500 SVG (185.75 KB)
Product line drawing with numbers
LINEAR INDIVILED DIREC T 1500 SVG (194.4 KB)
Product line drawing - technical
LINEAR INDIVILED DIREC T 1500 SVG (180.21 KB)

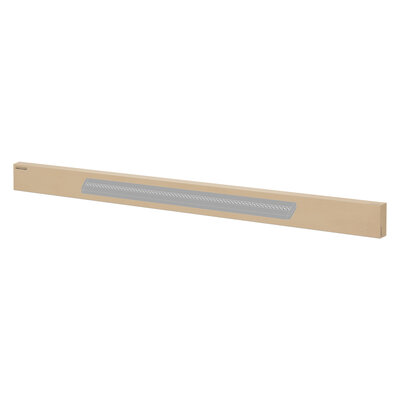

Packaging image, spacial
Linear IndiviLED Direc t PFM 1500 MiCh TIF (858.79 KB)
Catalog info 1
Linear IndiviLED SVG (195.71 KB)
Catalog info 3
Linear IndiviLED SVG (95 KB)
Catalog info 4
Linear IndiviLED SVG (55.08 KB)
Catalog info 5
Linear IndiviLED SVG (135.01 KB)
Catalog info 6
Linear IndiviLED SVG (84.88 KB)
IES file (IES)
LN INDV D 1500 25W940 IES (9.23 KB)
LDT file (Eulumdat)
LN INDV D 1500 25W940 LDT (11.27 KB)
ULD file (DIALux)
LN INDV D 1500 25W-940 ULD (808.96 KB)
ROLF file (RELUX)
LN INDV D 1500 ROLF (170.16 KB)
UGR file (UGR table)
LN INDV D 1500 25W940 PNG (59.36 KB)
LDC typ cone
LN INDV D 1500 25W940 SVG (91.67 KB)
LDC typ polar
LN INDV D 1500 25W940 SVG (235.14 KB)
CAD_STEP_3D
LN INDV 1500 STEP (4.19 MB)
Tender documents
LINEAR IndiviLED DIREC T 1500 25 W 940-EN TXT (1.72 KB)
Video
Lamp Ban 2023 Video In dustry 2022 05 EN MP4 (245.76 MB)
Video
Lamp Ban 2023 Video Of fice 2023 05 EN MP4 (211.38 MB)
EAN SEG number STK number EFO number ELDAS number
4058075522459 7019378 4127139 3004836 941302120
