LINEAR IndiviLED® DIRECT DALI GEN 1

LINEAR IndiviLED DIRECT DALI GEN 1

Choose your product version

DALI 1500 25 W 3000 K

DALI 1500 25 W 4000 K

1200 34 W 3000 K DALI

DALI 1200 34 W 3000 K

DALI 1200 34 W 4000 K

1200 34 W 4000 K DALI

DALI 1500 48 W 3000 K

1500 48 W 3000 K DALI

DALI 1500 48 W 4000 K

1500 48 W 4000 K DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INDV D DALI 1500 25 W 3000 K 25.00 W 100000 70 ° 3100 lm Yes
LN INDV D DALI 1500 25 W 4000 K 25.00 W 100000 70 ° 3300 lm Yes
LN INDV D 1200 34 W 3000 K DALI 34.00 W 100000 70 ° 3800 lm Yes
LN INDV D DALI 1200 34 W 3000 K 34.00 W 100000 70 ° 3800 lm Yes
LN INDV D DALI 1200 34 W 4000 K 34.00 W 100000 70 ° 4200 lm Yes
LN INDV D 1200 34 W 4000 K DALI 34.00 W 100000 70 ° 4200 lm Yes
LN INDV D DALI 1500 48 W 3000 K 48.00 W 100000 70 ° 5300 lm Yes
LN INDV D 1500 48 W 3000 K DALI 48.00 W 100000 70 ° 5300 lm Yes
LN INDV D DALI 1500 48 W 4000 K 48.00 W 100000 70 ° 5700 lm Yes
LN INDV D 1500 48 W 4000 K DALI 48.00 W 100000 70 ° 5700 lm Yes


LN INDV D DALI 1500 25 W 3000 K

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Multiple mounting options
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
  • Robust structure with IK06
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 140 mA
Inrush current 20 A
Inrush current time Th50 300 µs
Max. number of luminaires per miniature circuit breaker B16 11
Max. number of luminaires per miniature circuit breaker C10 11
Max. number of luminaires per miniature circuit breaker C16 18
Power factor λ > 0.90
Total harmonic distortion ≤ 18 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3100 lm
Luminous efficacy 125 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching 3 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 70 °
UGR < 16

Dimensions & Weight

Length 1488.00 mm
Height 40.00 mm
Width 120.00 mm
Product weight 3000.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Aluminum
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming DALI
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
  • Multiple mounting options
  • The product family offers full lighting solution for different applications
  • Energy savings of up to 50 % compared to T5 batten luminaires
  • Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
  • Robust structure with IK06
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, schools
  • General indoor illumination
  • Corridors, entrance areas
  • Seamless linear lighting
  • Shop lighting
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution

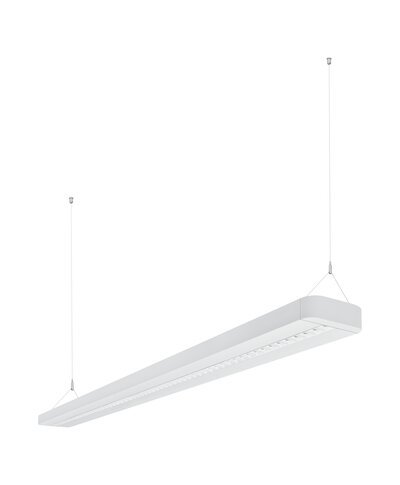

  • Pendant mounting with suspension kit
  • Linkable into seamless light line with line connection adapter (surface or pendant mounting)
  • Available with length of 1200 or 1500 mm
  • Luminous flux up to 5700 lm
  • Luminous efficacy: up to 125 lm/W
  • Initial color consistency: 3 SDCM
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Versions available with CRI 90
  • Lifetime (L70/B50): 60,000 h (at 25 °C)
Equipment / Accessories
  • Ceiling connection box available
  • Suspension kit available
  • Line connection adapter available
  • Through-wiring cable kit available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075108929 Folding box
1		 132 mm x 1,624 mm x 52 mm 3242.00 g 11.15 dm³
4058075108936 Shipping box
4		 1,641 mm x 207 mm x 169 mm 14498.00 g 57.41 dm³
User Instruction / Safety Instructions

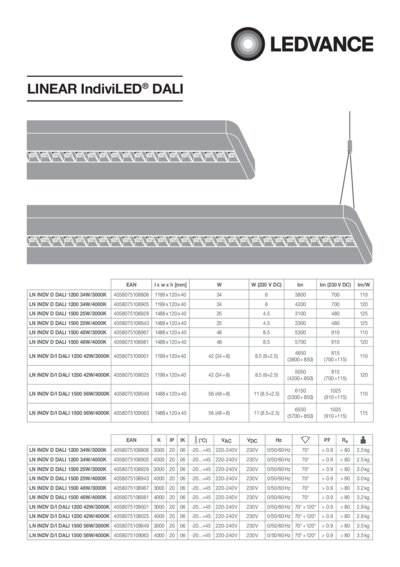

User Instruction Linea r IndiviLED DALI PDF (3.71 MB)
Legal information

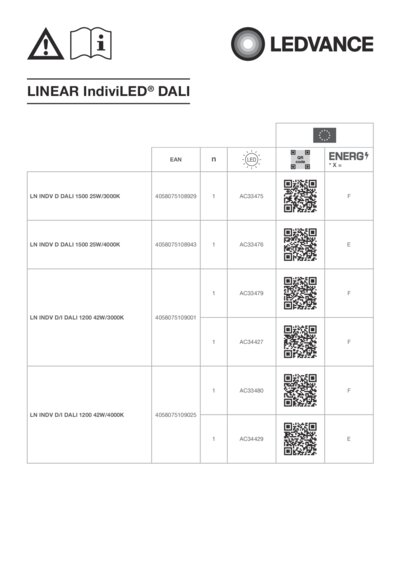

LS Insert LN INDV DALI EM PDF (1.36 MB)
Legal information

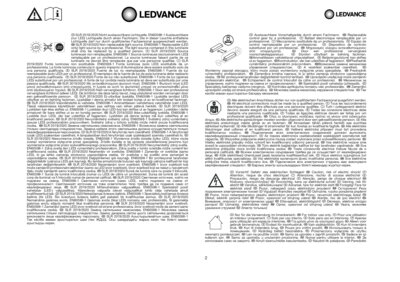

Legal Insert LN INDV D DALI PDF (4.47 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

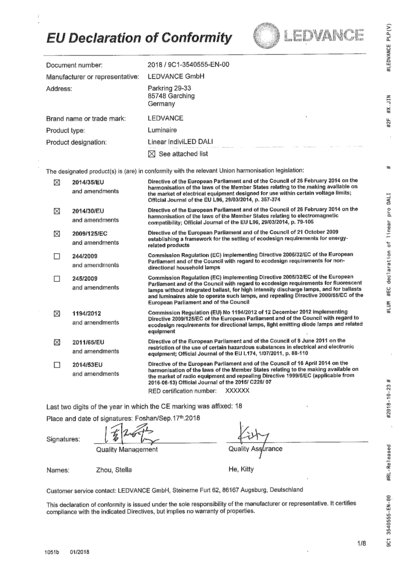

EU Declaration of Conf ormity Linear IndiviLE D DALI LEDVANCE PDF (740.09 KB)

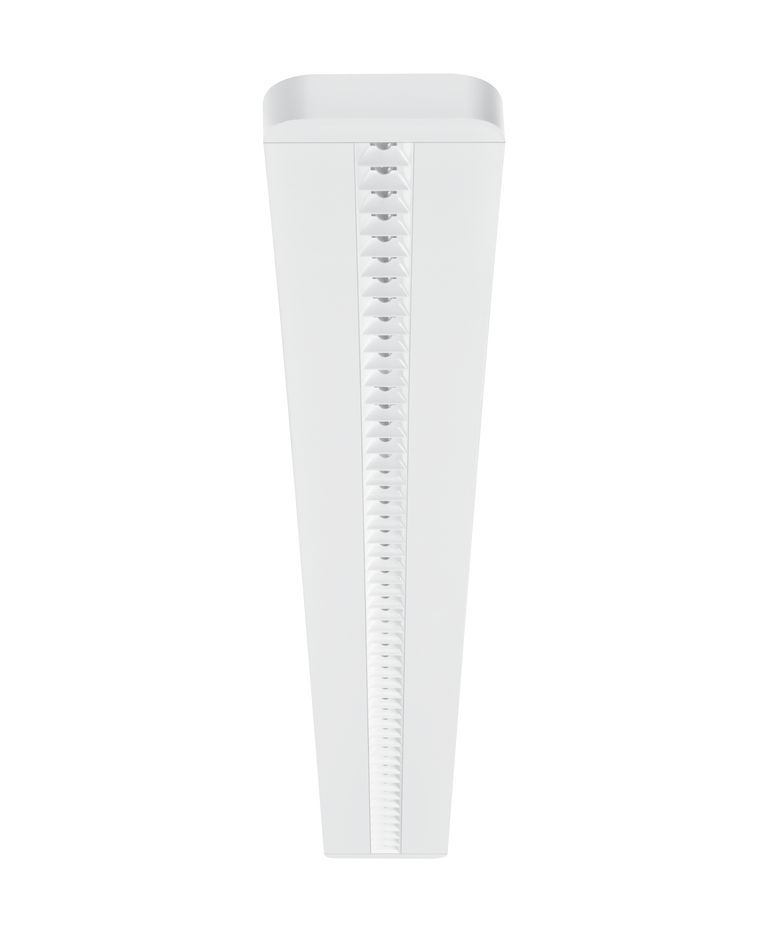

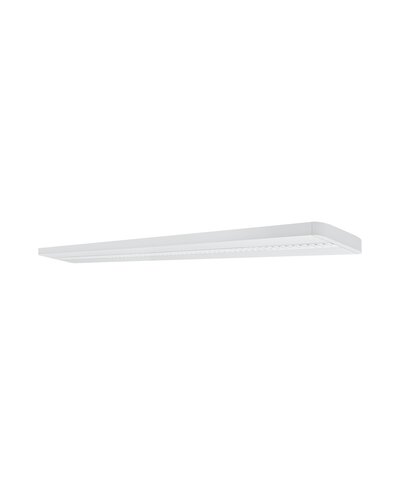

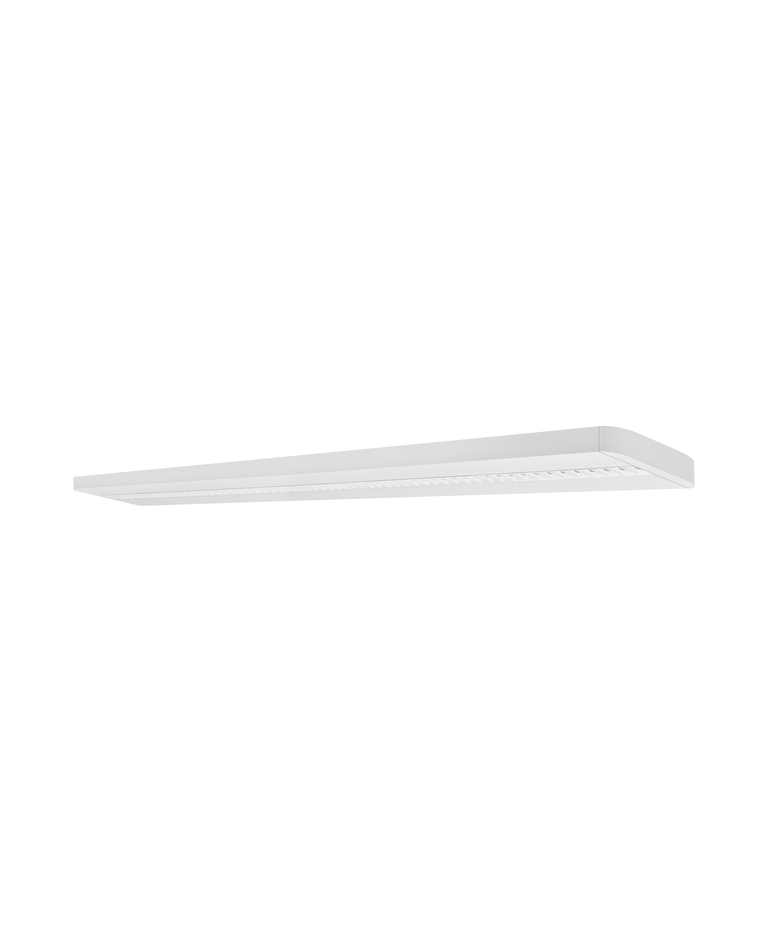

Product Image, Diagonal, White BG
LINEAR INDIVILED DIREC T 1500 TIF (34.31 MB)

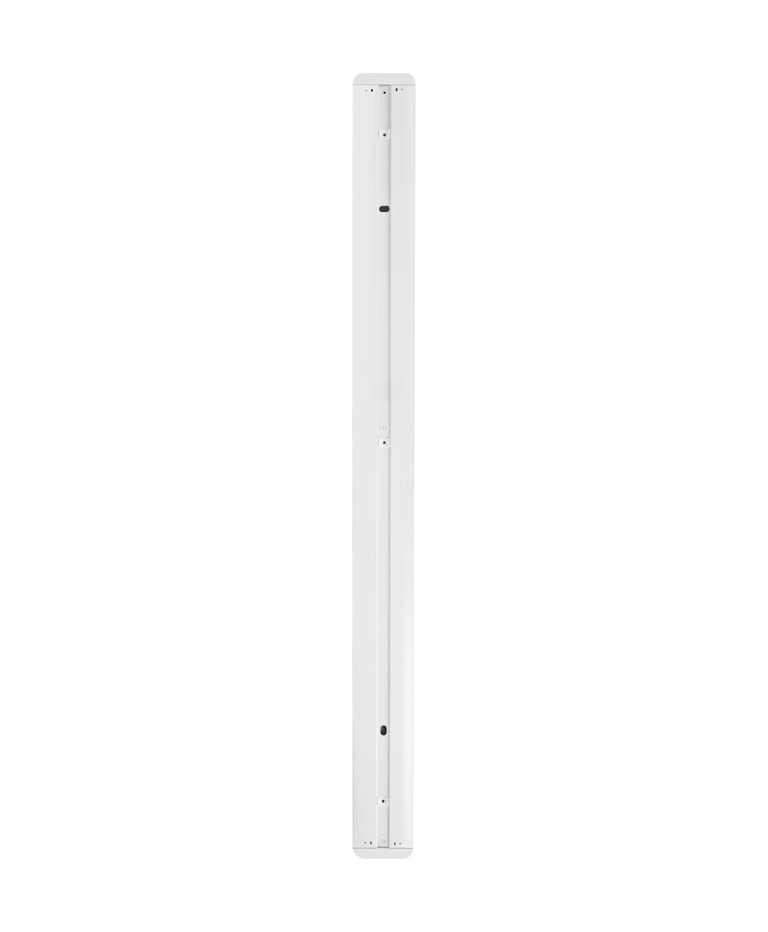

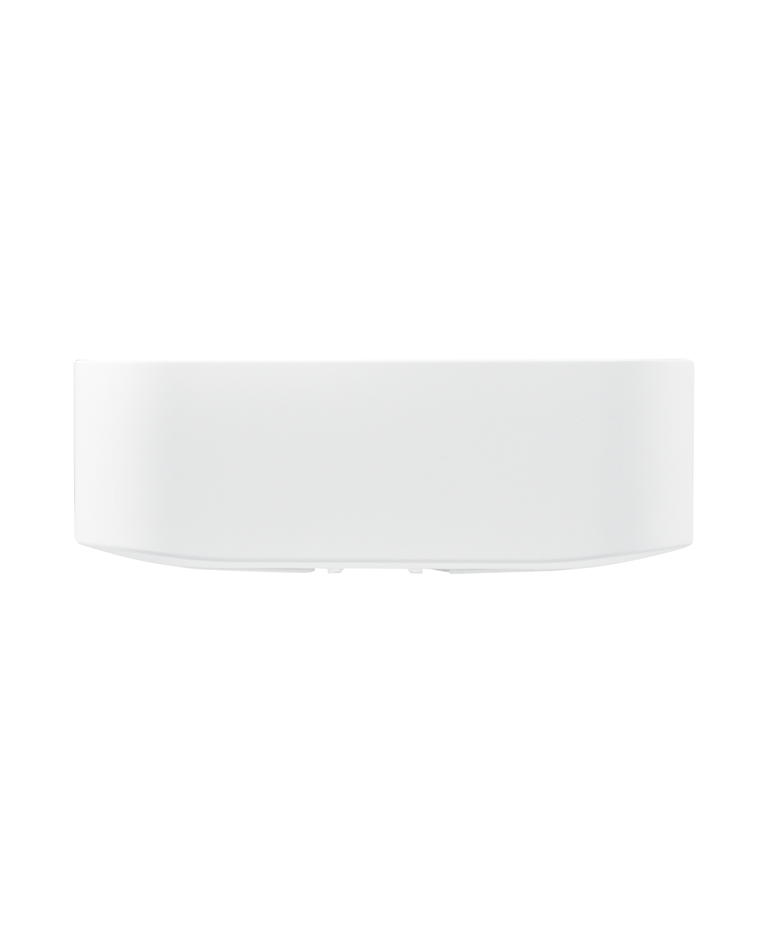

Product Image, Upright, White BG
LINEAR INDIVILED DIREC T 1500 TIF (23.12 MB)

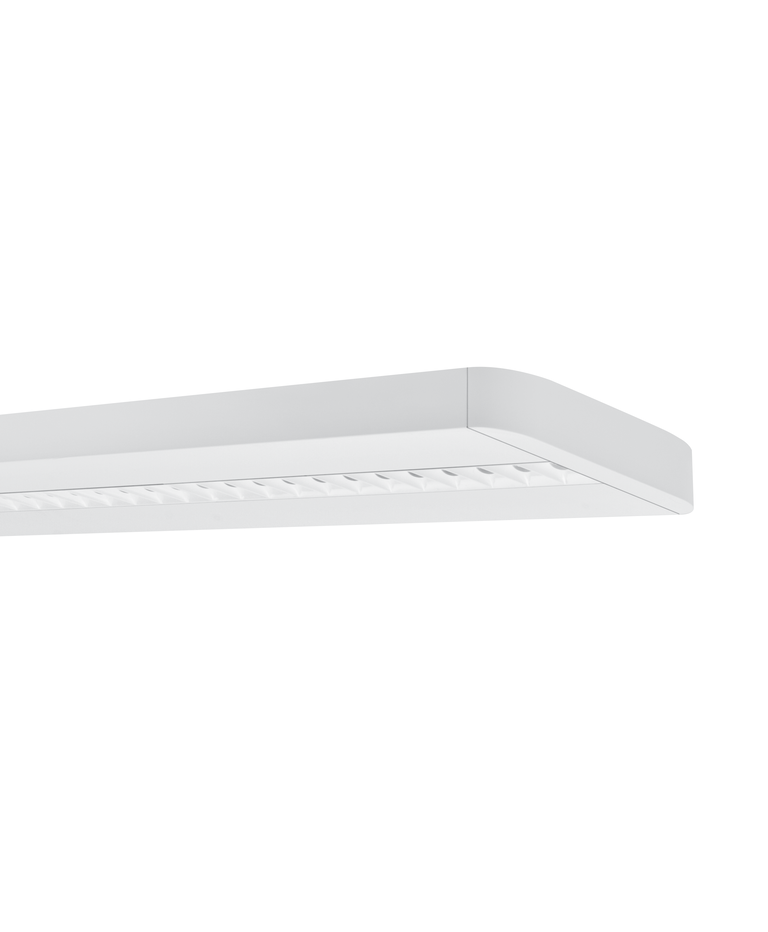

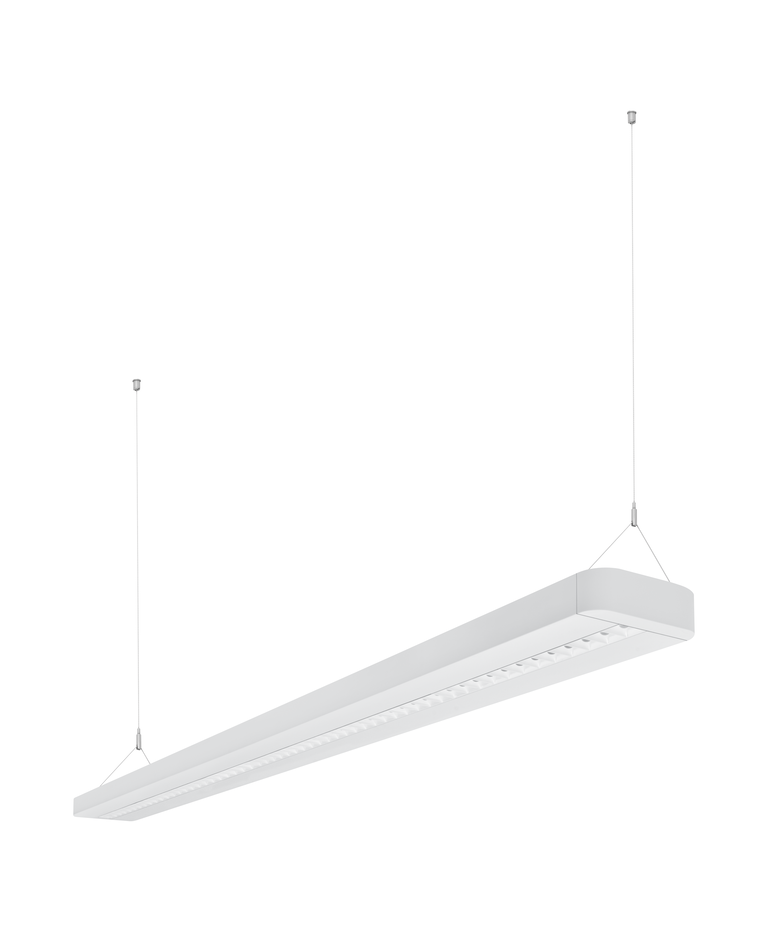

Product Image, Spacial, White BG
LINEAR INDIVILED DIREC T 1500 TIF (46.38 MB)
Product line drawing with letters
LINEAR INDIVILED DIREC T 1500 SVG (185.75 KB)
Product line drawing with numbers
LINEAR INDIVILED DIREC T 1500 SVG (194.4 KB)
Product line drawing - technical
LINEAR INDIVILED DIREC T 1500 SVG (180.21 KB)
Catalog info 2
Linear IndiviLED DALI SVG (128.31 KB)
IES file (IES)
LN INDV D DALI 1500 25 W 3000K IES (8.68 KB)
LDT file (Eulumdat)
LN INDV D DALI 1500 25 W 3000K LDT (9.52 KB)
ULD file (DIALux)
LINEARIndiviLEDDIRECTD ALI150025W3000K ULD (814.08 KB)
ROLF file (RELUX)
LN INDV D DALI 1500 ROLF (168.92 KB)
UGR file (UGR table)
LN INDV D DALI 1500 25 W 3000K PNG (60.12 KB)
LDC typ cone
LN INDV D DALI 1500 25 W 3000K SVG (85.24 KB)
LDC typ polar
LN INDV D DALI 1500 25 W 3000K SVG (229.87 KB)
CAD_STEP_3D
LN INDV 1500 STEP (4.19 MB)
Tender documents
LINEAR IndiviLED DIREC T DALI DALI 1500 25 W 3000 K-EN TXT (1.91 KB)
Video

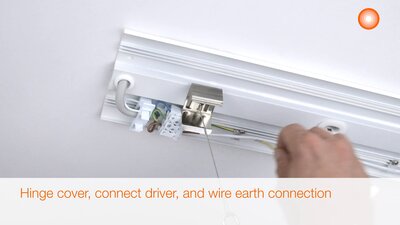

LEDVANCE LUM Installat ion Video EN IndiviLED MP4 (278.96 MB)
EAN SEG number STK number EFO number ELDAS number
4058075108929 7016140 4231875 3203375 941300640
