Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| LN INDV D 1500 25 W 4000 K EM | 25.00 W | 100000 | 70 ° | 3300 lm | No |
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 140 mA |
| Inrush current | 20 A |
| Inrush current time Th50 | 100 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Max. number of luminaires per miniature circuit breaker C10 | 40 |
| Max. number of luminaires per miniature circuit breaker C16 | 64 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 18 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 3300 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 70 ° |

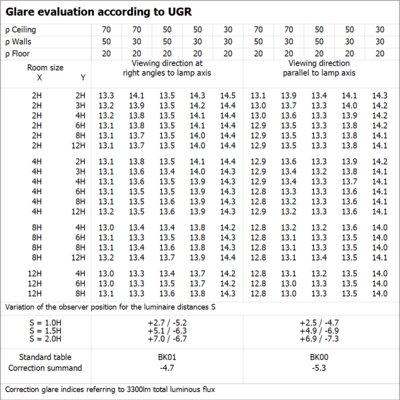

| UGR | < 16 |
| Length | 1488.00 mm |
| Height | 40.00 mm |
| Width | 120.00 mm |
| Product weight | 3100.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Aluminum |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | 5…+35 °C |
| Temperature range at storage | 5…+35 °C |
| Type of connection | Screw terminal, 2-POLE (N, L. L switchable) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 60000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Nominal capacity of battery | 4500 mAh |
| Battery charging time | < 24 h |
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Maintained, Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in maintained operation mode | 25 W |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in maintained operation mode | 3300 lm |
| Luminous flux in emergency operation mode | 410 lm |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | No |

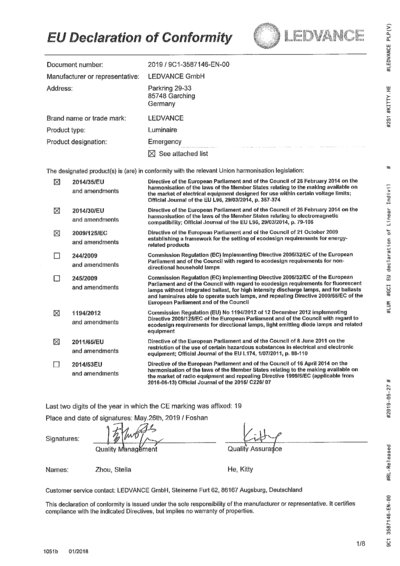

| Standards | CE, CB, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075109582 | Folding box 1 |
132 mm x 1,624 mm x 52 mm | 3442.00 g | 11.15 dm³ |
| 4058075109599 | Shipping box 4 |
1,641 mm x 207 mm x 169 mm | 16450.00 g | 57.41 dm³ |
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075109582 | 7016153 | 4283654 | 941300390 |
