PANEL DIRECT/INDIRECT 1200 UGR < 19 DALI

PANEL DIRECT/INDIRECT 1200 UGR < 19 DALI

Choose your product version

36 W 3000 K UGR 19 DALI

36 W 4000 K UGR19 DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PANEL D/I 1200 36 W 3000 K UGR 19 DALI 36.00 W 100000 110 ° 3800 lm Yes
PANEL D/I 1200 36 W 4000 K UGR19 DALI 36.00 W 100000 110 ° 4000 lm Yes


PANEL D/I 1200 36 W 3000 K UGR 19 DALI

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
  • Attractive and functional design for office applications
  • Good glare reduction (UGR ≤ 19)
  • Very homogenous light
  • Low maintenance and low operational costs
  • External driver for extended flexibility
  • Special light guide design for low-glare illumination
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 230.000 mA
Inrush current 16 A
Inrush current time Th50 160 µs
Max. number of luminaires per miniature circuit breaker B16 20
Max. number of luminaires per miniature circuit breaker C10 21
Max. number of luminaires per miniature circuit breaker C16 33
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 3800 lm
Luminous efficacy 105 lm/W
Color temperature 3000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °
UGR < 19

Dimensions & Weight

Length 1200.00 mm
Height 16.00 mm
Width 300.00 mm
Product weight 3500.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of connection Terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI
Mounting type Suspended
Mounting location Ceiling
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output voltage 38 V
Output current 800 mA

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
  • Attractive and functional design for office applications
  • Good glare reduction (UGR ≤ 19)
  • Very homogenous light
  • Low maintenance and low operational costs
  • External driver for extended flexibility
  • Special light guide design for low-glare illumination
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Offices
  • Meeting rooms
  • Conference rooms
  • Reception areas and foyers
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission
  • Driver integrated into the remote driver box
  • UGR  ≤ 19  according to EN12464-1
  • High luminous efficacy: up to 110 lm/W
  • Lifetime (L70/B50): 80,000 h (at 25 °C)
  • Follows the unified LEDVANCE design language (SCALE design)
  • Very slim aluminum housing
Equipment / Accessories
  • Suspension kit included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075504028 Folding box
1		 75 mm x 1,265 mm x 455 mm 4205.00 g 43.17 dm³
4058075504035 Shipping box
2		 1,280 mm x 155 mm x 465 mm 9575.00 g 92.26 dm³
User Instruction / Safety Instructions

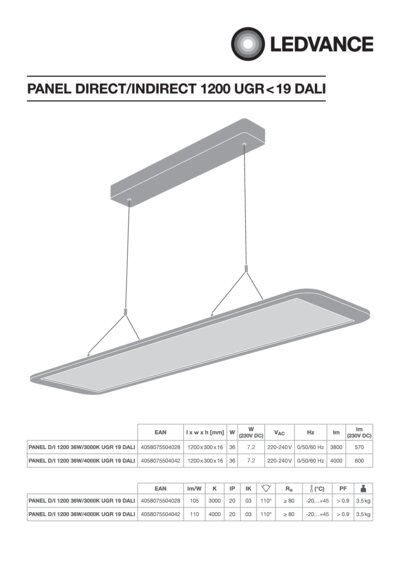

PANEL D/I 1200 36W DAL I UGR19 PDF (1.51 MB)
Legal information

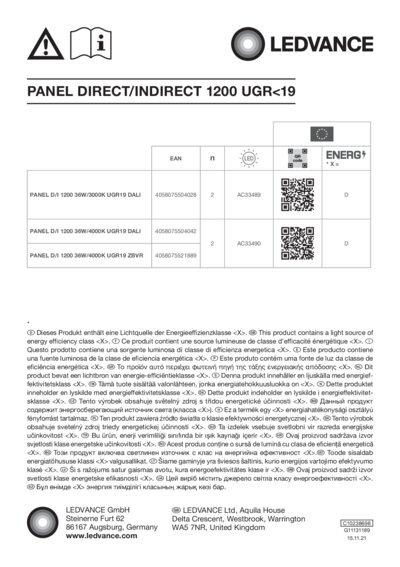

LSI PANEL D I DALI AND ZBVR PDF (1.15 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

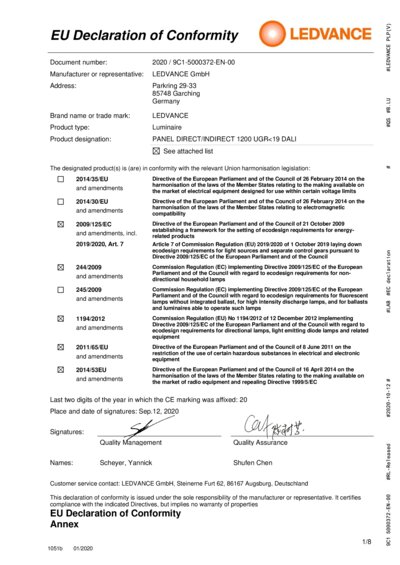

Declarations of conformity
PANEL D I 1200 DALI PDF (343.37 KB)

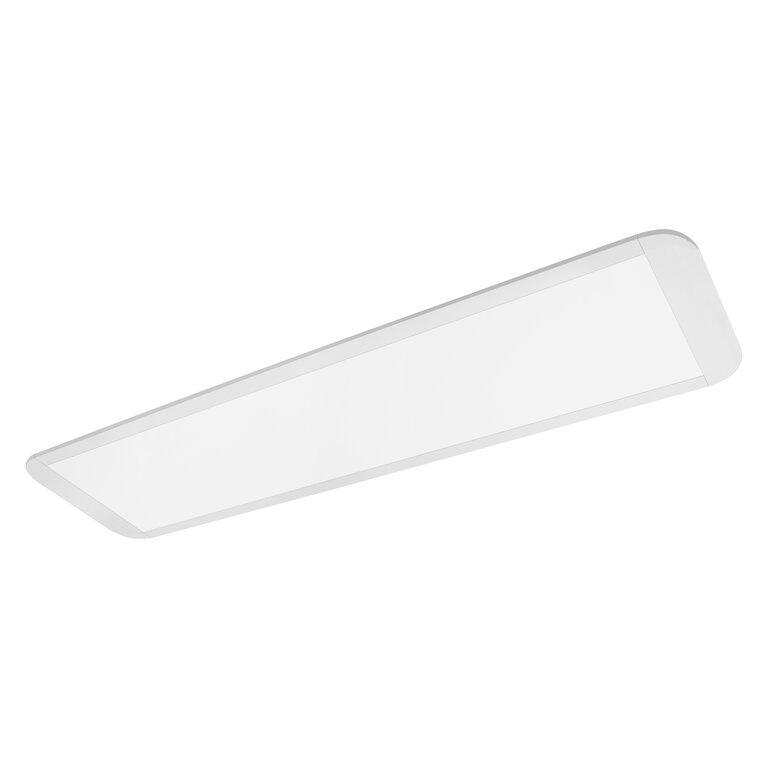

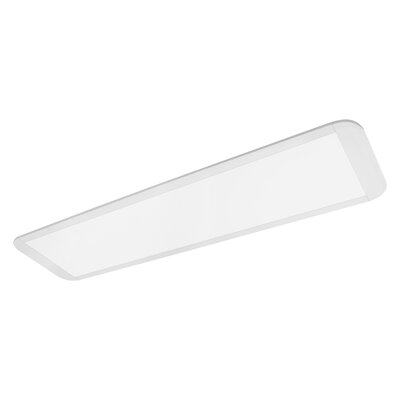

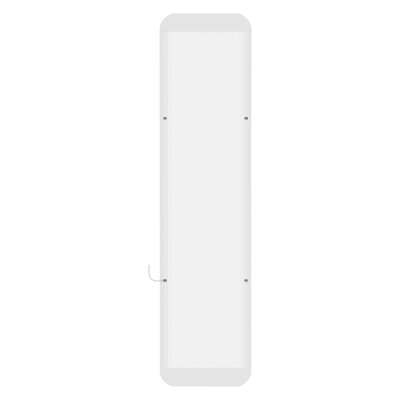

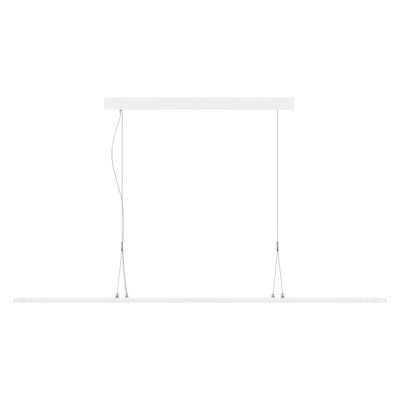

Product Image, Diagonal, White BG
PANEL D/I 1200 JPG (998.76 KB)

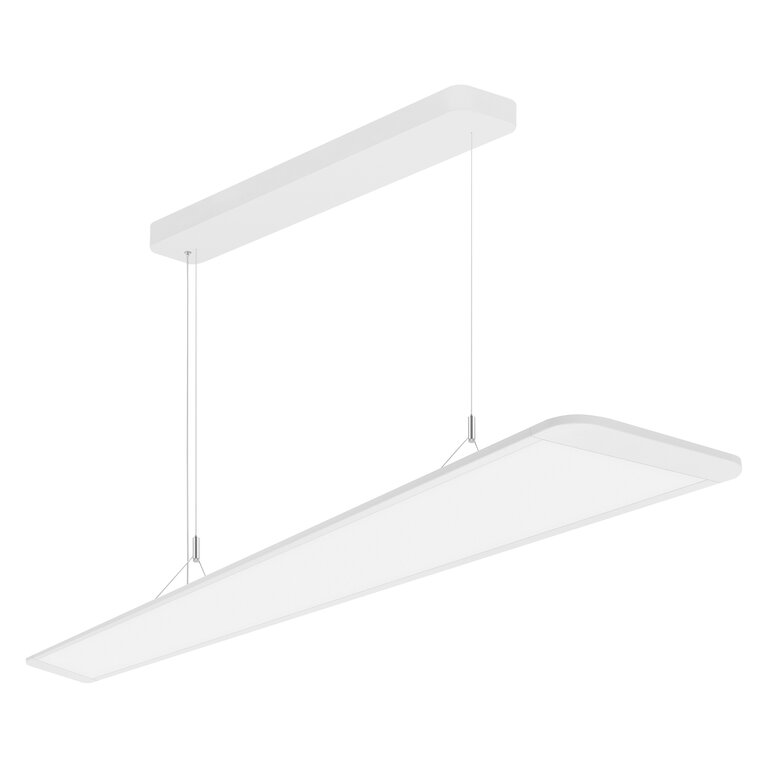

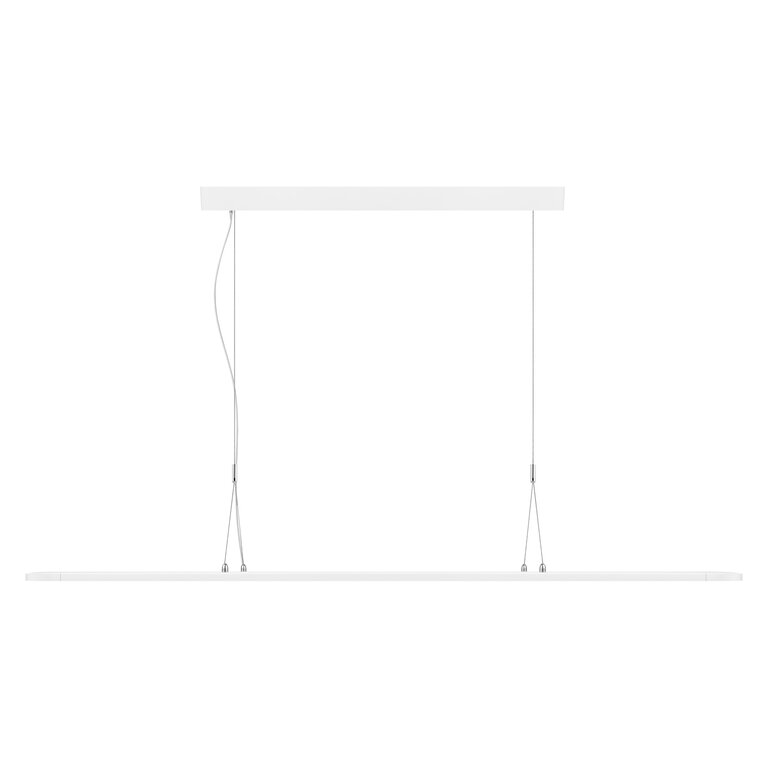

Product Image, Diagonal, White BG
PANEL D/I 1200 JPG (938.57 KB)

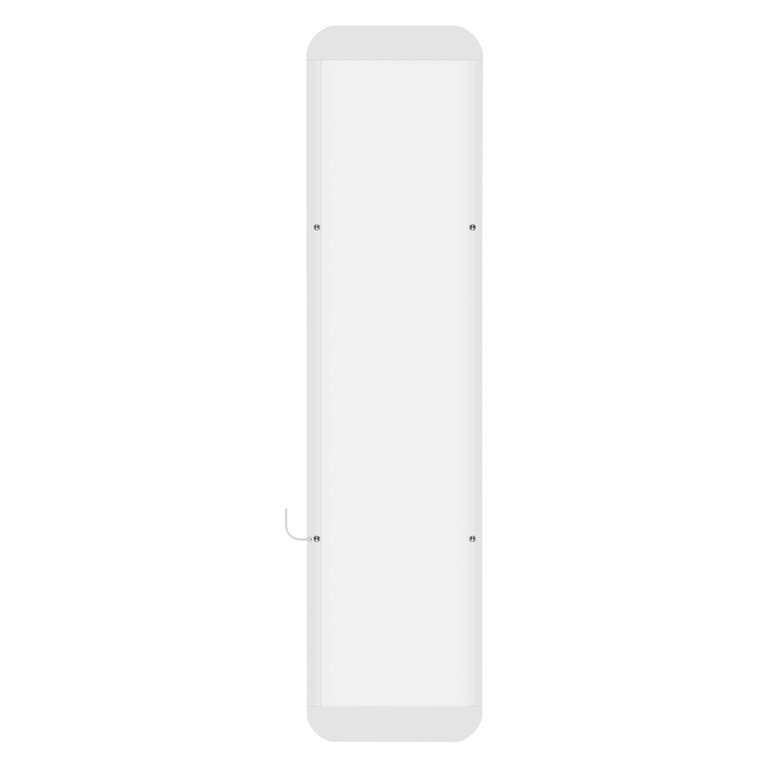

Product Image, Horizontal, White BG
PANEL D/I 1200 JPG (709.66 KB)

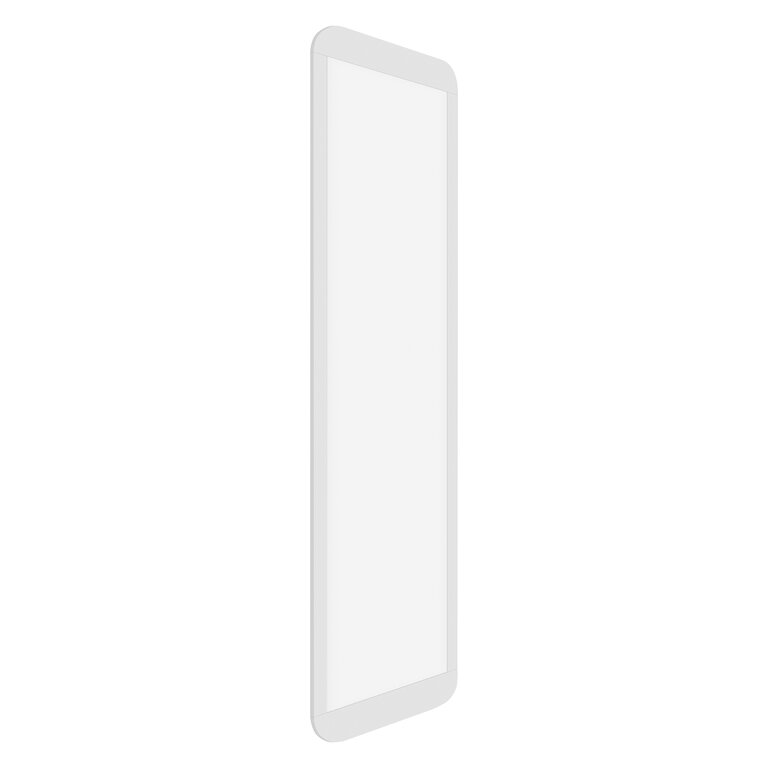

Product Image, Upright, White BG
PANEL D/I 1200 JPG (1.05 MB)
Product line drawing with letters
PANEL D/I 1200 SVG (10.2 KB)
Product line drawing with numbers
PANEL D/I 1200 SVG (17.6 KB)
Prod.line drw, front, no dimensions
PANEL D/I 1200 SVG (7.45 KB)

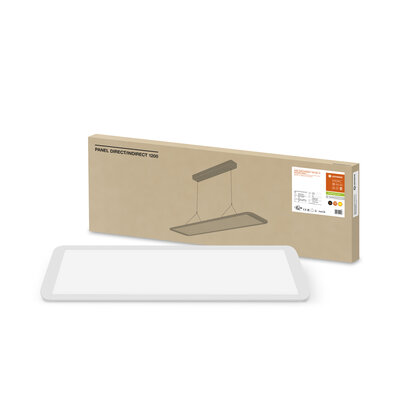

Combo Shot = Product Beauty Shot + Packaging Image
Panel LED 1200 UGR19 M iCh JPG (1.41 MB)

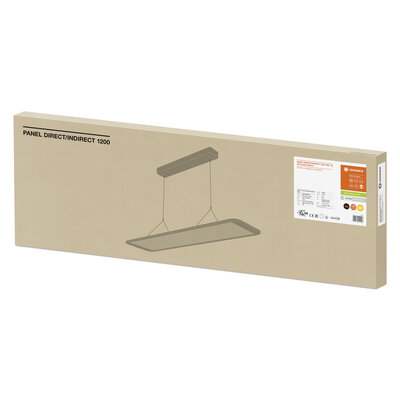

Packaging image, spacial
Panel LED 1200 UGR19 M iCh JPG (1.65 MB)
IES file (IES)
PANEL DI 1200 36W3000K UGR 19 DALI IES (10.17 KB)
LDT file (Eulumdat)
PANEL DI 1200 36W3000K UGR 19 DALI LDT (11.29 KB)
ULD file (DIALux)
PANEL D-I 1200 36W-300 0K UGR19 DALI ULD (1.3 MB)
ROLF file (RELUX)
PANEL D-I 1200 36W-300 0K ROLF (351.47 KB)

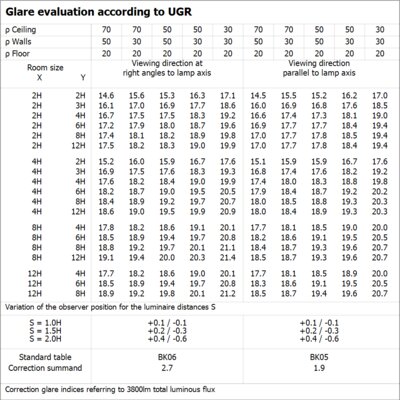

UGR file (UGR table)
PANEL DI 1200 36W3000K UGR 19 DALI PNG (61.59 KB)
LDC typ cone
PANEL DI 1200 36W3000K UGR 19 DALI SVG (88.42 KB)
LDC typ polar
PANEL DI 1200 36W3000K UGR 19 DALI SVG (442.55 KB)
BIM_Revit_3D
Panel Direct Indirect ZIP (1.28 MB)
CAD_STEP_3D
PL D I STEP (2.83 MB)
Tender documents
PANEL DIRECTINDIRECT 1 200 UGR 19 DALI 36 W 3000 K UGR 19 DALI-EN TXT (1.79 KB)
Application Pictures Getty
LEDVANCE TPPS Office VIVARES Think Tank ZIG BEE 2022-03 JPG (19 MB)
EAN SEG number STK number EFO number ELDAS number
4058075504028 7019213 4127109 3004831 941301680
