TRACKLIGHT SPOT ZOOM DIM

TRACKLIGHT SPOT ZOOM DIM

Choose your product version

D85 25 W 3000 K 97R BK

D85 25 W 3000 K 97R WT

D85 25 W 4000 K 97R BK

D85 25 W 4000 K 97R WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TR SP ZOOM DIM D85 25 W 3000 K 97R BK 25.00 W 100000 15°… 55° 1500 lm Yes
TR SP ZOOM DIM D85 25 W 3000 K 97R WT 25.00 W 100000 15°… 55° 1500 lm Yes
TR SP ZOOM DIM D85 25 W 4000 K 97R BK 25.00 W 100000 15°… 55° 1500 lm Yes
TR SP ZOOM DIM D85 25 W 4000 K 97R WT 25.00 W 100000 15°… 55° 1500 lm Yes


TR SP ZOOM DIM D85 25 W 4000 K 97R WT

Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • Included 3-phase adapter compatible with common tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC)
  • No distraction of attention from the illuminated objects thanks to reduced design
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 25.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Nominal current 120 mA
Inrush current 40 A
Inrush current time Th50 < 50 µs
Max. number of luminaires per miniature circuit breaker B16 37
Max. number of luminaires per miniature circuit breaker C10 30
Max. number of luminaires per miniature circuit breaker C16 48
Power factor λ > 0.90
Total harmonic distortion < 10 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1500 lm
Luminous efficacy 60 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 97
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Beam angle 15°… 55°

Dimensions & Weight

Diameter 85.00 mm
Length 93.00 mm
Height 265.00 mm
Product weight 1025.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Adapter, 3-phase
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming 1-10V
Mounting type Surface
Mounting location Mounting track
Application environment Indoor
Adjustable Yes
LED module replaceable Not replaceable
With light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output voltage 27…42 V
ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Dimmable 3-phase tracklight spot with mechanical zoom lense
  • Included 3-phase adapter compatible with common tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC)
  • No distraction of attention from the illuminated objects thanks to reduced design
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires using HID lamps
  • Accent lighting
  • Galleries, museums
  • Fashion shops, accessories shops
  • Shops, changing rooms, shop windows
  • Hotels, restaurants, shops
Product features
  • Mechanical zoom lens with a beam angle of 15 ° to 55 °
  • Dimmable (7% - 100%) via slider potentiometer directly on each luminaire
  • Excellent color rendering index Ra: 97
  • Color rendering index Ra9: > 90
  • Initial color consistency: ≤ 4 SDCM
  • Rotation angle: 350°, tilt angle: 90°
  • Follows the unified LEDVANCE design language (SCALE design)
  • Robust die-cast aluminum housing
  • Available in matt white (like RAL9016), matt black (like RAL9004)
  • Luminaire efficacy: up to 70 lm/W
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075335783 Folding box
1		 120 mm x 120 mm x 300 mm 1146.00 g 4.32 dm³
4058075335790 Shipping box
4		 502 mm x 137 mm x 335 mm 4902.00 g 23.04 dm³
User Instruction / Safety Instructions
TRACKLIGHT SPOT ZOOM D 85 PDF (3.09 MB)
Legal information
LS Insert TR SP ZOOM PDF (1.23 MB)
Legal information
TRACKLIGHT SPOT ZOOM D 85 PDF (591.69 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE declaration TR SP Z OOM PDF (281.71 KB)
Product Image, Diagonal, White BG
TR SP ZOOM D85 25W WT JPG (1.4 MB)
Product Image, Diagonal, White BG
TR SP ZOOM D85 25W WT JPG (1.48 MB)
Product Image, Upright, White BG
TR SP ZOOM D85 25W WT JPG (1.42 MB)
Product line drawing with letters
TR SP ZOOM D85 SVG (20.19 KB)
Product line drawing with numbers
TR SP ZOOM D85 SVG (27.17 KB)
Prod.line drw, front, no dimensions
TR SP ZOOM D85 SVG (17.44 KB)

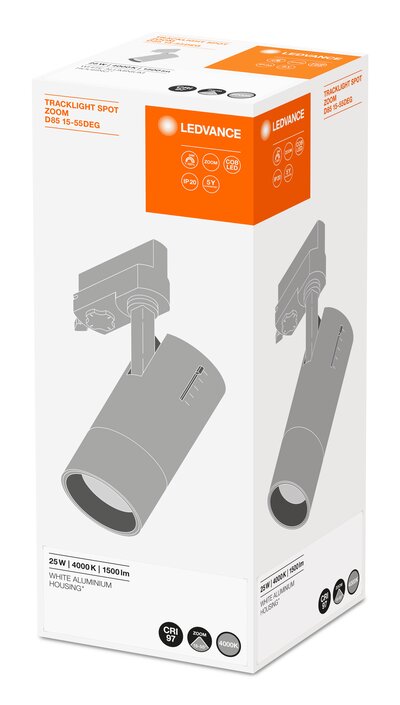

Packaging image, spacial
Tracklight Spot Zoom D 85 25W DIM 840 WT MiCh TIF (34.17 MB)
Catalog info 1
Tracklight Spot Zoom D 85 SVG (263.61 KB)
Catalog info 2
Tracklight Spot Zoom D 85 SVG (144.06 KB)
Catalog info 3
Tracklight Spot Zoom D 85 SVG (56.09 KB)
Catalog info 4
Tracklight Spot Zoom D 85 SVG (53.48 KB)
Catalog info 5
Tracklight Spot Zoom D 85 SVG (115.13 KB)
IES file (IES)
TRACKLIGHT SPOT ZOOM IES (5.18 KB)
LDT file (Eulumdat)
TR SP ZOOM D85 25W4000 K DIM 97R WT LDT (33.17 KB)
ULD file (DIALux)
TR SP ZOOM D85 25W-400 0K DIM 97R WT ULD (438.27 KB)
ROLF file (RELUX)
TR SP ZOOM D85 25W-400 0K ROLF (565.6 KB)
UGR file (UGR table)
TR SP ZOOM D85 25W 400 0K DIM 97R WT 25DEG PNG (60.85 KB)
LDC typ cone
TR SP ZOOM D85 25W 400 0K DIM 97R WT 25DEG SVG (90.26 KB)
LDC typ polar
TR SP ZOOM D85 25W 400 0K DIM 97R WT 25DEG SVG (224.9 KB)
BIM_Revit_3D
TRACKLIGHT SPOT ZOOM ZIP (1.82 MB)
CAD_STEP_3D
TR SPOT ZOOM STEP (326.16 KB)
Tender documents
TRACKLIGHT SPOT ZOOM D IM D85 25 W 4000 K 97R WT-EN TXT (1.48 KB)
Video
Tracklight Spot Zoom D im - english subtitles MP4 (121.6 MB)
EAN SEG number STK number ELDAS number
4058075335783 7402574 4266648 941600590
