TruSys® PERFORMANCE NARROW

TruSys PERFORMANCE NARROW

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TruSys® PFM N 50 W/4000 K 50.00 W 100000 60 ° 8000 lm No
TruSys® PFM N 50 W 4000 K DALI 50.00 W 100000 60 ° 8000 lm Yes
TruSys® PFM N 70 W/4000 K 70.00 W 100000 60 ° 11200 lm No
TruSys® PFM N 70 W 4000 K DALI 70.00 W 100000 60 ° 11200 lm Yes


TruSys® PFM N 50 W/4000 K

Product benefits
  • Directed light distribution for high heights
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 270 mA
Inrush current 30 A
Inrush current time Th50 265 µs
Max. number of luminaires per miniature circuit breaker B16 8
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 8000 lm
Luminous efficacy 160 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °
UGR 21

Dimensions & Weight

Length 1500.00 mm
Height 39.40 mm
Width 66.80 mm
Product weight 1660.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK04
Dimmable No
Mounting type Suspended/Surface
Mounting location Mounting rail
Application environment Indoor
Replaceable light source (EPREL) Not replaceable
With light source No

Lifespan

Lifespan L70/B50 at 25 °C 65000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 620 mA
ECG - Output ripple current < 20 %

Certificates & Standards

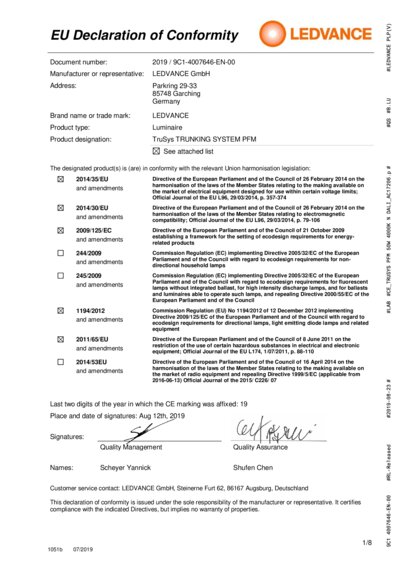

Standards CE, CB, ENEC 18, EAC, RoHS
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Directed light distribution for high heights
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
Product features
  • Beam angle narrow: 60°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
  • Lens material: PMMA
  • Type of protection: IP20
  • Common family design with LEDVANCE
  • Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
  • Mounting rail with fixed integrated 5- and 8-pole cable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075393998 Folding box
1
108 mm x 1,534 mm x 102 mm 1835.00 g 16.90 dm³
4058075394001 Shipping box
4
1,547 mm x 218 mm x 231 mm 8133.00 g 77.90 dm³
