Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| TruSys® PFM VW 35 W/4000 K | 35.00 W | 100000 | 120 ° | 5600 lm | No |
| TruSys® PFM VW 35 W 4000 K DALI | 35.00 W | 100000 | 120 ° | 5600 lm | Yes |
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 190 mA |
| Inrush current | 25 A |
| Inrush current time Th50 | 220 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Max. number of luminaires per miniature circuit breaker C10 | 12 |
| Max. number of luminaires per miniature circuit breaker C16 | 19 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 5600 lm |
| Luminous efficacy | 160 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |

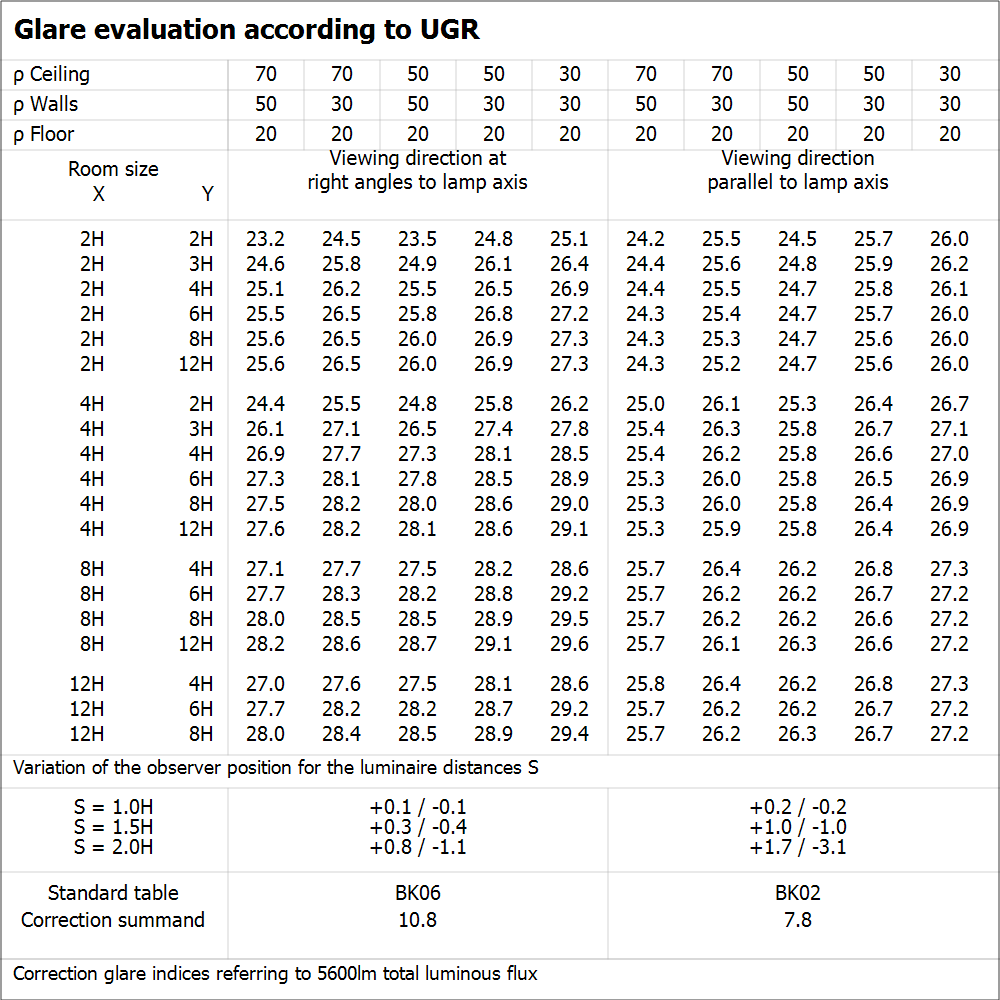

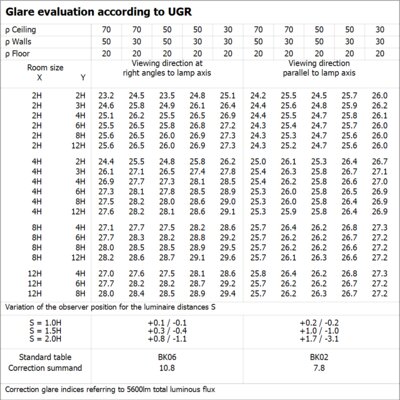

| UGR | 23 |
| Length | 1500.00 mm |
| Height | 39.40 mm |
| Width | 66.80 mm |
| Product weight | 1660.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -25…+40 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| LED module replaceable | Not replaceable |
| With light source | No |
| Lifespan L70/B50 at 25 °C | 65000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 420 mA |
| ECG - Output ripple current | < 20 % |

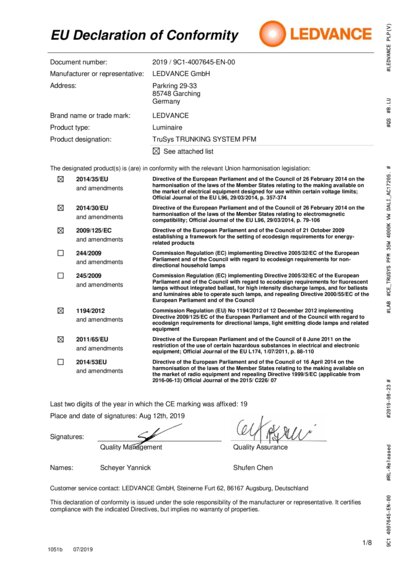

| Standards | CE, CB, ENEC 18, EAC, RoHS |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075393974 | Folding box 1 |
108 mm x 1,534 mm x 102 mm | 1835.00 g | 16.90 dm³ |
| 4058075393981 | Shipping box 4 |
1,547 mm x 218 mm x 231 mm | 8133.00 g | 77.90 dm³ |
