Professional
TruSys® PERFORMANCE WIDE

TruSys PERFORMANCE WIDE

Choose your product version

50 W/4000 K

70 W/4000 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
TruSys® PFM W 50 W/4000 K 50.00 W 100000 90 ° 8000 lm No
TruSys® PFM W 70 W/4000 K 70.00 W 100000 90 ° 11200 lm No


TruSys® PFM W 50 W/4000 K

Product benefits
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 270 mA
Inrush current 30 A
Inrush current time Th50 265 µs
Max. number of luminaires per miniature circuit breaker B16 8
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 13
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 8000 lm
Luminous efficacy 160 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Beam angle 90 °
UGR 21

Dimensions & Weight

Length 1500.00 mm
Height 39.40 mm
Width 66.80 mm
Product weight 1660.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Type of connection Plug-In connection
Type of protection IP20
Protection class IK (shock resistance) IK04
Dimmable No
Mounting type Suspended/Surface
Mounting location Mounting rail
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 65000 h 1)
Lifespan L80/B10 at 25 °C 60000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 620 mA
ECG - Output ripple current < 20 %

Certificates & Standards

Standards CE, CB, ENEC, EAC
Ball shot safe No
Product benefits
  • Homogenous light distribution
  • Easy installation, no tools required for connection
  • Energy saving and cost-effective
  • Flexible application due to a range of different lumen packages and beam angles
  • Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
  • Versions with DALI ECG available
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Beam angle wide: 90°
  • Click into place solution with smart click buttons
  • Luminous efficacy: up to 160 lm/W
  • Fixed luminare taps
  • Lumen package 5600 lm, 8000 lm, 11200 lm
  • Steel-sheet housing
  • Lens material: PMMA
  • Type of protection: IP20
  • Common family design with LEDVANCE
  • Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
  • Mounting rail with fixed integrated 5- and 8-pole cable
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075290853 Folding box
1		 83 mm x 1,571 mm x 88 mm 1835.00 g 11.47 dm³
4058075290860 Shipping box
4		 1,589 mm x 194 mm x 198 mm 8133.00 g 61.04 dm³
User Instruction / Safety Instructions

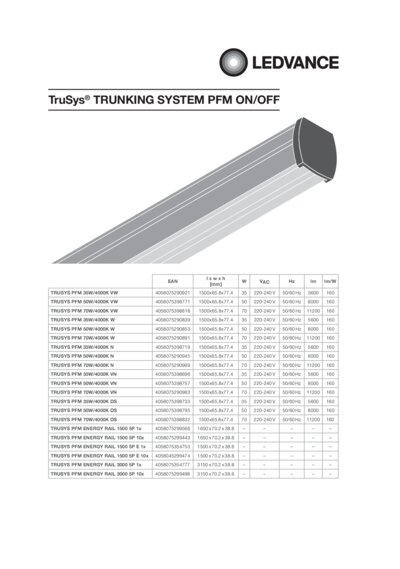

UI_TruSys® TRUNKING SY STEM PFM ON/OFF PDF (2.03 MB)

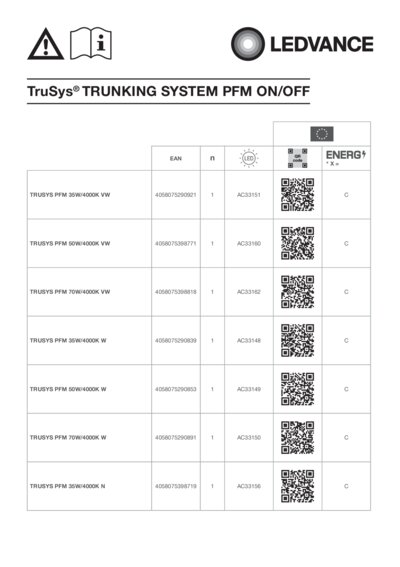

Legal information
LS Insert Trusys PFM PDF (1.66 MB)
Declarations of conformity

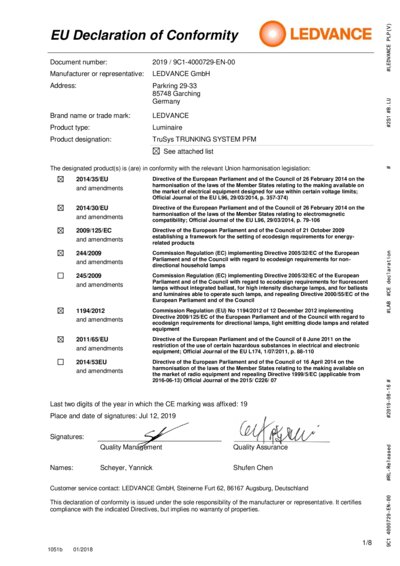

CE TRUSYS PFM 50W 4000 K W AC17196 PDF (302.92 KB)
Product Image, Diagonal, White BG
TRUSYS PFM LUM JPG (937.7 KB)
Product line drawing with letters
TRUSYS PFM SVG (8.21 KB)
Product line drawing with numbers
TRUSYS PFM SVG (16.04 KB)
Prod.line drw, front, no dimensions
TRUSYS PFM SVG (5.48 KB)
IES file (IES)
TRUSYS PFM 50W 4000K W IES (10.15 KB)
LDT file (Eulumdat)
TRUSYS PFM 50W 4000K W LDT (8.22 KB)
ULD file (DIALux)
TRUSYS PFM 50W-4000K W ULD (274.43 KB)
ROLF file (RELUX)
TRUSYS PFM 50W-4000K ROLF (216.73 KB)

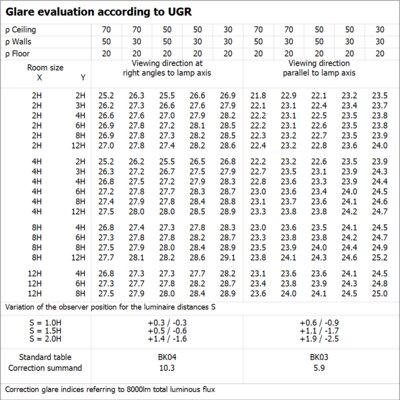

UGR file (UGR table)
TRUSYS PFM 50W 4000K W PNG (62.01 KB)
LDC typ cone
TRUSYS PFM 50W 4000K W SVG (88.95 KB)
LDC typ polar
TRUSYS PFM 50W 4000K W SVG (237.01 KB)
BIM_Revit_3D
TruSys®-Performance ZIP (4.25 MB)
CAD_STEP_3D
TRUSYS PFM INSERT STEP (1.96 MB)
Tender documents
TruSys PERFORMANCE WID E 50 W4000 K-EN TXT (1.39 KB)

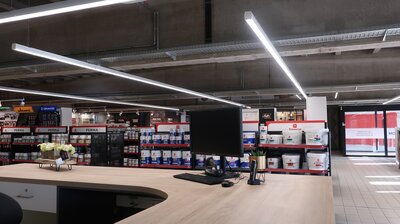

Application Pictures

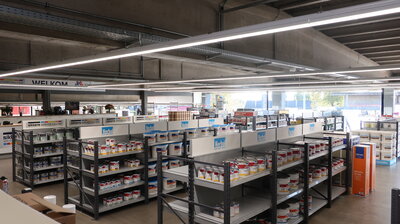

Bocapaints project JPG (7.1 MB)

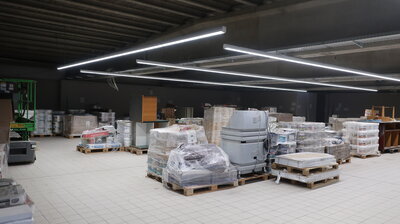

Application Pictures
Bocapaints project JPG (5.96 MB)

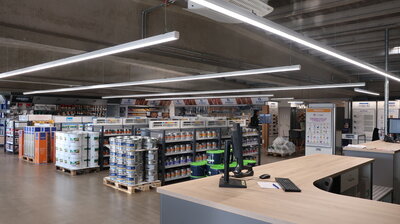

Application Pictures
Bocapaints project JPG (2.77 MB)

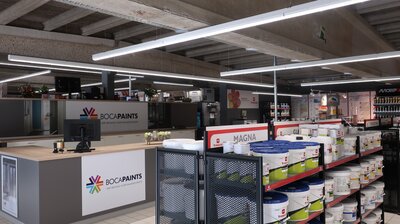

Application Pictures
Bocapaints project JPG (2.43 MB)
Application Pictures
Bocapaints project JPG (6.72 MB)
Video
TRUSYS FLEX Trunking s ystem video MP4 (248.52 MB)
Video
TRUSYS FLEX Trunking s ystem short video EN MP4 (99.09 MB)

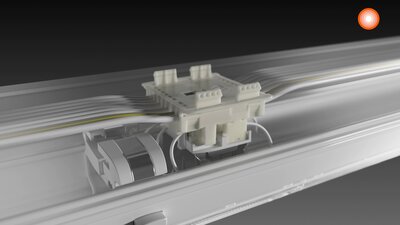

Video
EE TRUSYS FLEX Trunkin g system video estonia n MP4 (252.53 MB)
EAN SEG number STK number
4058075290853 7215014 4283607
