Professional
TruSys® ENERGY RAIL

TruSys ENERGY RAIL

Choose your product version

4500 5X2,5

3000 5X2,5

1500 5X2,5

OVERVIEW

Product description

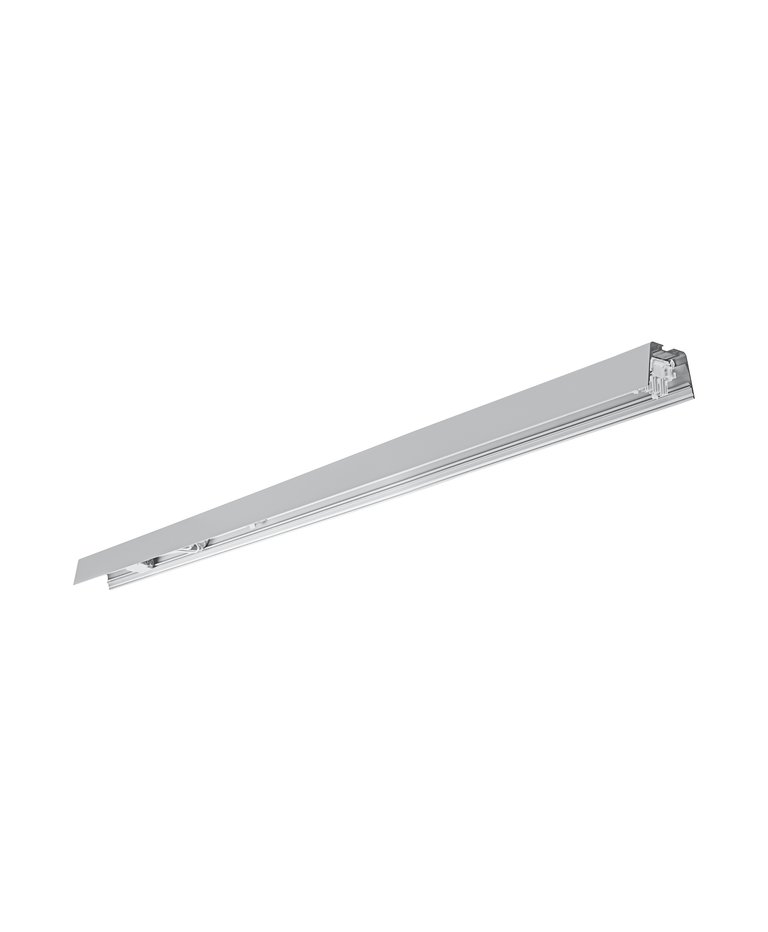

TruSys® ENERGY RAIL 4500 5X2,5
TruSys® ENERGY RAIL 3000 5X2,5
TruSys® ENERGY RAIL 1500 5X2,5


TruSys® ENERGY RAIL 4500 5X2,5

Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm)
  • High-value design
  • Lightweight design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Protection class I

Dimensions & Weight

Length 4605 mm
Height 44 mm
Width 67.00 mm
Product weight 4500.00 g

Materials & Colors

Product color Silver
Body material Aluminum

Application & Mounting

Type of protection IP20
Mounting location Ceiling
With light source Yes

Certificates & Standards

Standards CE
Ball shot safe No
Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm)
  • High-value design
  • Lightweight design
Areas of application
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Through wired with 5 core cable
  • Different lenghts available
  • Electrical connection internal at the first luminaire, no external connection unit required
  • Anodized surface
  • Rigid housing made of aluminum
Equipment / Accessories
  • Various accessories available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075100336 BAG
1		 4,615 mm x 72 mm x 56 mm 5070.00 g 18.61 dm³
4058075100343 Shipping box
2		 4,615 mm x 149 mm x 64 mm 11040.00 g 44.01 dm³
User Instruction / Safety Instructions

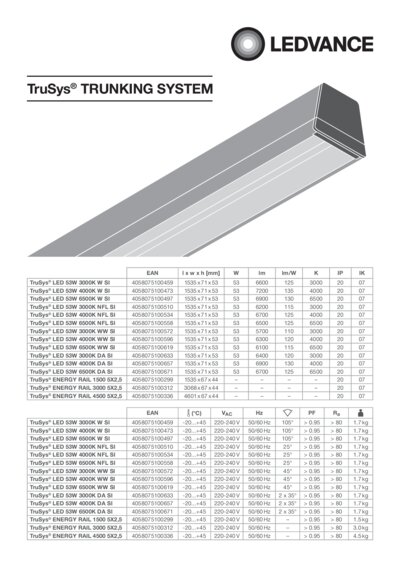

Trusys Trunking System PDF (4.78 MB)
Declarations of conformity

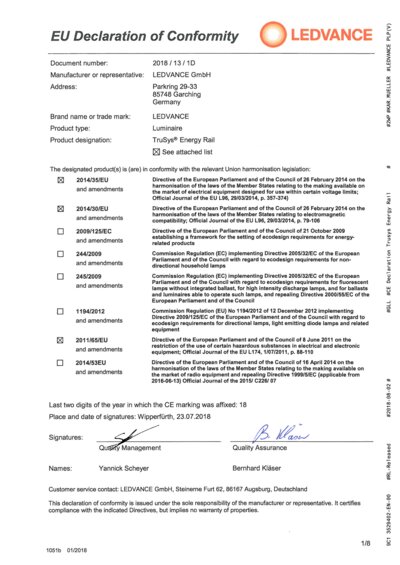

EU Declaration of Conf ormity TruSys Energy RailLEDV PDF (2.24 MB)
Product Image, Diagonal, White BG
TRUSYS ENERGY RAIL 459 0 5X2,5 1T TIF (3.37 MB)
Product line drawing with letters
TRUSYS ENERGY RAIL 459 0 5X2,5 1T SVG (4.36 KB)
Product line drawing with numbers
TRUSYS ENERGY RAIL 459 0 5X2,5 1T SVG (9.72 KB)
Product line drawing - technical
TRUSYS ENERGY RAIL 459 0 5X2,5 1T SVG (1.52 KB)
BIM_Revit_3D
TRUSYS 1500 3000 4500 ZIP (28.07 MB)
Tender documents
TruSys ENERGY RAIL 450 0 5X2,5-EN TXT (957 B)
Application Pictures

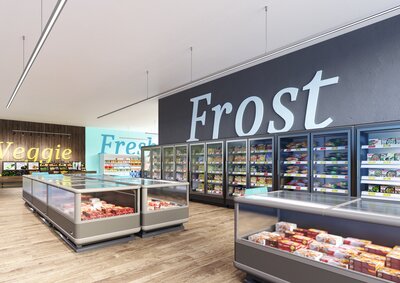

Supermarket Trusys TIF (47.22 MB)
Application Pictures

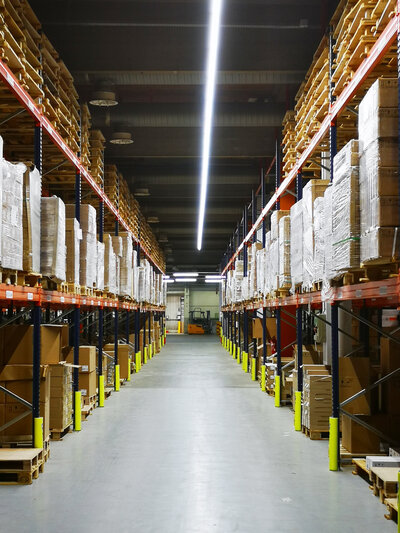

TRUSYS TRUNKING SYSTEM LOGISTIC CENTER MOLSH EIM JPG (6.96 MB)
Application Pictures

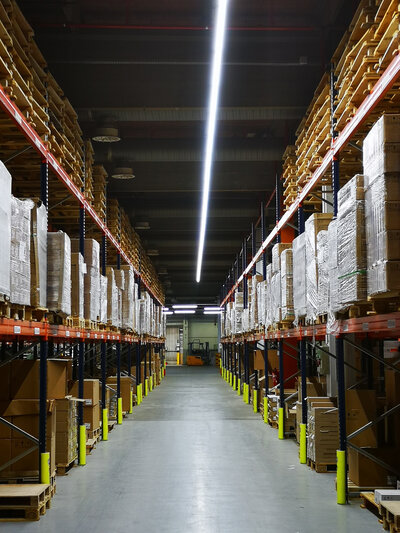

TRUSYS TRUNKING SYSTEM LOGISTIC CENTER MOLSH EIM JPG (6.7 MB)
Video

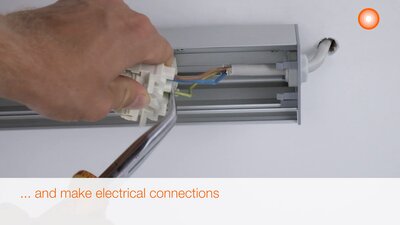

LEDVANCE LUM Installat ion Video EN TruSys MP4 (252.76 MB)
EAN SEG number STK number ELDAS number
4058075100336 7214305 4295692 941900620
