Professional
TruSys® ENERGY RAIL DALI

TruSys ENERGY RAIL DALI

Choose your product version

1500 7X2,5

3000 7X2,5

4500 7X2,5

OVERVIEW

Product description
TruSys® ENERGY RAIL DALI 1500 7X2,5
TruSys® ENERGY RAIL DALI 3000 7X2,5
TruSys® ENERGY RAIL DALI 4500 7X2,5


TruSys® ENERGY RAIL DALI 1500 7X2,5

Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm)
  • High-value design
  • Lightweight design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Protection class I

Dimensions & Weight

Length 1535 mm
Height 44 mm
Width 67.00 mm
Product weight 1500.00 g

Materials & Colors

Product color Silver
Body material Aluminum

Application & Mounting

Type of protection IP20
Mounting location Ceiling
With light source Yes

Certificates & Standards

Standards CE
Ball shot safe No
Product benefits
  • Simple installation
  • High flexibility thanks to three available lengths (1500 mm, 3000 mm, 4500 mm)
  • High-value design
  • Lightweight design
Areas of application
  • Industry halls, high rack warehouse, garages, hardware stores
  • Discounters, supermarkets
Product features
  • Through wired with 7 core cable
  • Different lenghts available
  • Electrical connection internal at the first luminaire, no external connection unit required
  • Anodized surface
  • Rigid housing made of aluminum
Equipment / Accessories
  • Various accessories available
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075103450 BAG
1		 1,545 mm x 72 mm x 56 mm 1690.00 g 6.23 dm³
4058075103467 Shipping box
2		 1,545 mm x 149 mm x 64 mm 4180.00 g 14.73 dm³
User Instruction / Safety Instructions

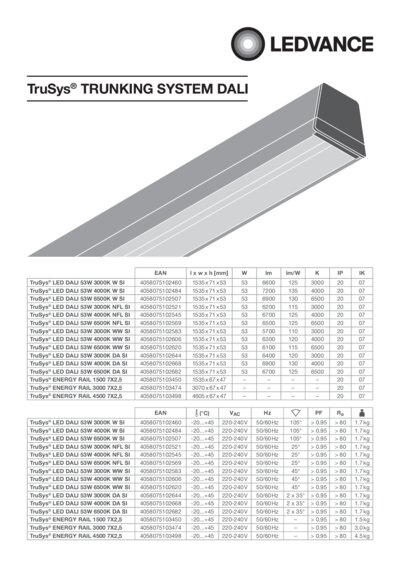

Trusys Trunking System Dali PDF (5.25 MB)
Declarations of conformity
EU Declaration of Conf ormity TruSys Energy RailLEDV PDF (2.24 MB)

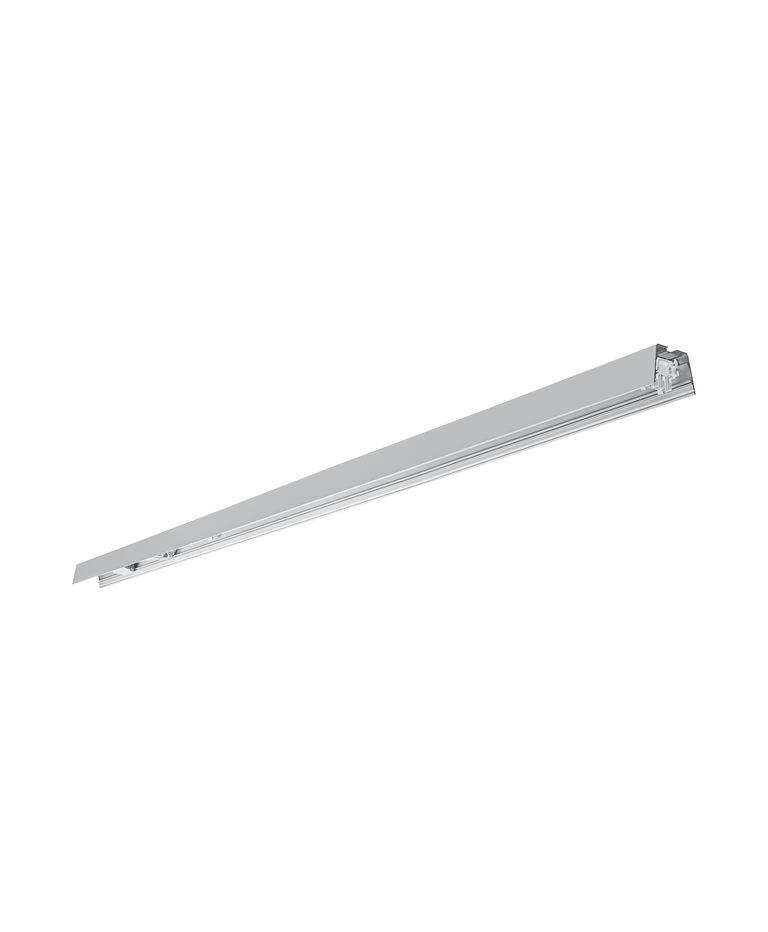

Product Image, Diagonal, White BG
TRUSYS ENERGY RAIL 153 0 5X2,5 1T TIF (53.25 MB)
Product line drawing with letters
TRUSYS ENERGY RAIL 153 0 7X2,5 1T SVG (6.19 KB)
Product line drawing with numbers
TRUSYS ENERGY RAIL 153 0 7X2,5 1T SVG (12 KB)
Product line drawing - technical
TRUSYS ENERGY RAIL 153 0 7X2,5 1T SVG (3.39 KB)
BIM_Revit_3D
TRUSYS 1500 3000 4500 ZIP (28.07 MB)
Tender documents
TruSys ENERGY RAIL DAL I 1500 7X2,5-EN TXT (985 B)
Application Pictures
TRUSYS TRUNKING SYSTEM LOGISTIC CENTER MOLSH EIM JPG (6.96 MB)
Application Pictures
Supermarket Trusys TIF (47.22 MB)
Application Pictures
TRUSYS TRUNKING SYSTEM LOGISTIC CENTER MOLSH EIM JPG (6.7 MB)
Video
LEDVANCE LUM Installat ion Video EN TruSys MP4 (252.76 MB)
EAN SEG number STK number ELDAS number
4058075103450 7214306 4295691 941900590
