Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| TRUSYS UNIV P 50W 840 VW OP PS | 50 W / 40 W / 30 W / 20 W | 50000 | 120 ° | 8150 lm / 6600 lm / 5040 lm / 3300 lm | No |
| TRUSYS UNIV P 73W 840 W CL PS | 73 W / 66 W / 57 W / 49 W / 41 W | 50000 | 90 ° | 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm | No |
| TRUSYS UNIV P 50W 840 W CL PS | 50 W / 40 W / 30 W / 20 W | 50000 | 90 ° | 9000 lm / 7400 lm / 5550 lm / 3700 lm | No |
| TRUSYS UNIV P 73W 840 N CL PS | 73 W / 66 W / 57 W / 49 W / 41 W | 50000 | 60 ° | 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm | No |
| TRUSYS UNIV P 50W 840 N CL PS | 50 W / 40 W / 30 W / 20 W | 50000 | 60 ° | 9000 lm / 7400 lm / 5550 lm / 3700 lm | No |
| TRUSYS UNIV P 73W 840 VN CL PS | 73 W / 66 W / 57 W / 49 W / 41 W | 50000 | 30 ° | 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm | No |
| TRUSYS UNIV P 50W 840 VN CL PS | 50 W / 40 W / 30 W / 20 W | 50000 | 30 ° | 9000 lm / 7400 lm / 5550 lm / 3700 lm | No |
| TRUSYS UNIV P 73W 840 VW OP PS | 73 W / 66 W / 57 W / 49 W / 41 W | 50000 | 120 ° | 11900 lm / 10890 lm / 9575 lm / 8230 lm / 6890 lm | No |
| Nominal wattage | 73 W / 66 W / 57 W / 49 W / 41 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 330…300…260…220…190 mA |
| Inrush current | 0.33 A |
| Inrush current time Th50 | 302 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 8 |
| Max. number of luminaires per miniature circuit breaker C10 | 8 |
| Max. number of luminaires per miniature circuit breaker C16 | 14 |
| Power factor λ | ≥ 0.90 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 12400 lm / 11420 lm / 10030 lm / 8720 lm / 7380 lm |
| Luminous efficacy | 170 lm/W / 173 lm/W / 176 lm/W / 178 lm/W / 180 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 90 ° |
| Length | 1504.00 mm |
| Height | 26.00 mm |
| Width | 68.00 mm |
| Product weight | 1695.00 g |
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Surface/Suspended |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 120000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 54000 h |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 450…400…350…300…250 mA |
| ECG - Output ripple current | < 5 % |
| Type of Emergency Lighting (EL) | EL certified driver (0Hz / DC operation) for central battery operation included |
| Type of emergency operation test | None |
| Wattage in emergency operation mode | 73 W |
| Luminous flux in emergency operation mode | 12400 lm |
| Standards | CE, CB, UKCA, ENEC, TÜV, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00033-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |

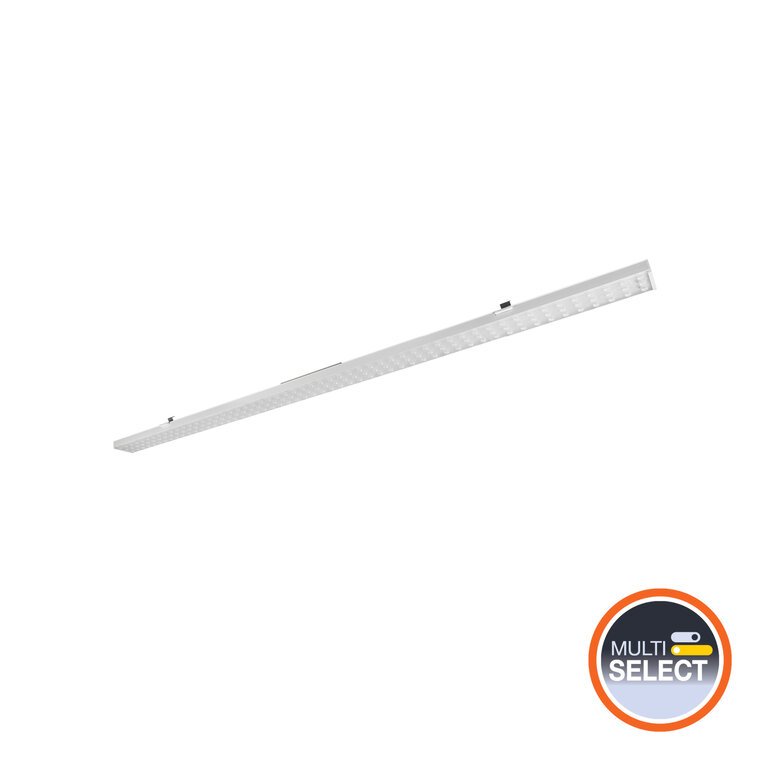

| Added function | MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), N,N-Dimethylformamide (68-12-2) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

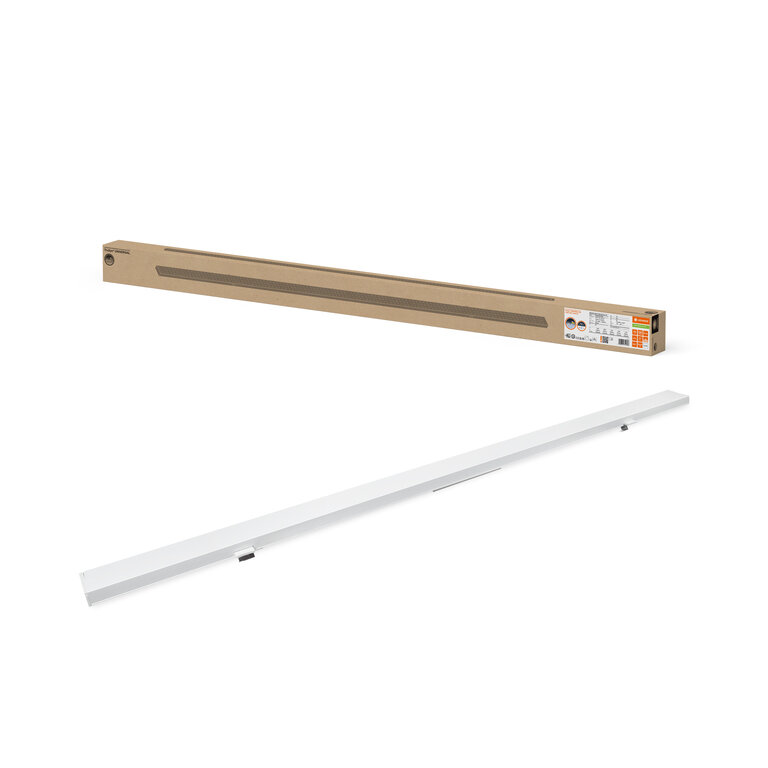

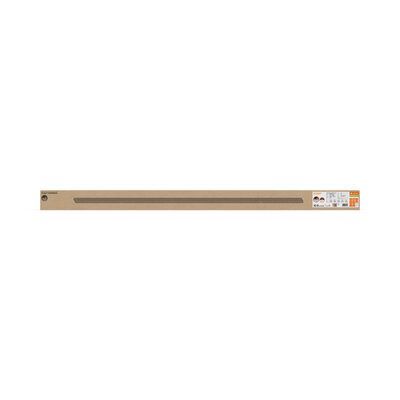

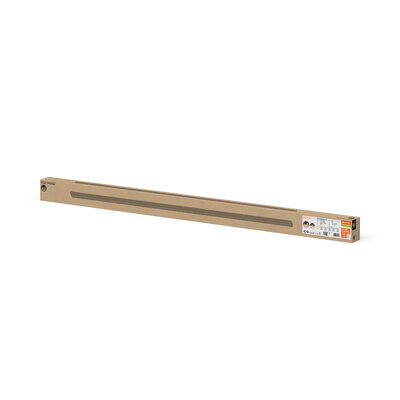

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854311628 | Folding box 1 |
93 mm x 1,540 mm x 69 mm | 1985.00 g | 9.88 dm³ |
| 4099854311635 | Shipping box 4 |
1,560 mm x 295 mm x 110 mm | 9400.00 g | 50.62 dm³ |
| EAN | STK number | ELDAS number | UK Org |
|---|---|---|---|
| 4099854311628 | 4325358 | 941200780 | 437369233 |
