Professional
SURFACE CIRCULAR 250

SURFACE CIRCULAR 250

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
SF CIRCULAR 250 13 W 3000 K IP44 WT 13.00 W 50000 120 ° 920 lm No
SF CIRCULAR 250 13 W 4000 K IP44 WT 13.00 W 50000 120 ° 960 lm No


SF CIRCULAR 250 13 W 3000 K IP44 WT

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 13.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 140 mA
Inrush current 10 A
Inrush current time Th50 150 µs
Max. number of luminaires per miniature circuit breaker B16 41
Max. number of luminaires per miniature circuit breaker C10 33
Max. number of luminaires per miniature circuit breaker C16 53
Power factor λ ≥0.5
Total harmonic distortion < 120 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 920 lm
Luminous efficacy 70 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 250.00 mm
Height 91.00 mm
Product weight 292.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -25…+70 °C
Type of connection Screw terminal, 3-Pole
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Replaceable light source (EPREL) Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 22000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 78 mA

Certificates & Standards

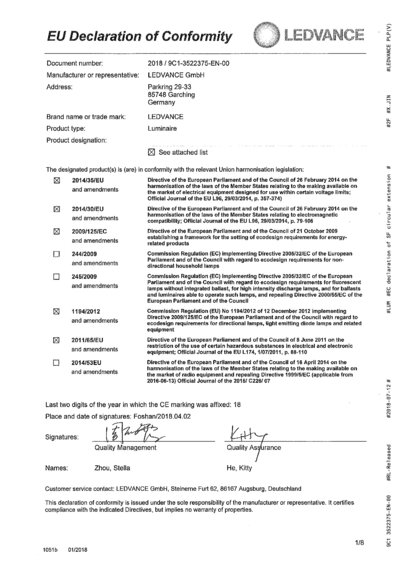

Standards CE, CB, TÜV SÜD, EAC
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optional available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075110120 Folding box
1
280 mm x 282 mm x 98 mm 370.00 g 7.74 dm³
4058075110137 Shipping box
5
525 mm x 305 mm x 315 mm 2448.00 g 50.44 dm³
EAN SEG number STK number EFO number ELDAS number
4058075110120 7504773 4125322 3201930 941000360
