IP65 BULKHEAD

IP65 BULKHEAD

Choose your product version

15W 830 BK OV

15W 830 WT OV

15W 830 BK R

15W 830 WT R

15W 840 WT OV

15W 840 BK OV

15W 840 WT R

15W 840 BK R

15W 865 WT R

15W 865 BK OV

15W 865 WT OV

15W 865 BK R

20W 830 WT OV

20W 830 BK R

20W 830 BK OV

20W 830 WT R

20W 840 BK R

20W 840 WT R

20W 840 WT OV

20W 840 BK OV

20W 865 BK R

20W 865 WT R

20W 865 WT OV

20W 865 BK OV

24W 830 WT R

24W 830 BK R

24W 840 WT R

24W 840 BK R

24W 865 WT R

24W 865 BK R

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
IP65 BULKHEAD 15W 830 BK OV 15.00 W 120 ° 1200 lm No
IP65 BULKHEAD 15W 830 WT OV 15.00 W 120 ° 1200 lm No
IP65 BULKHEAD 15W 830 BK R 15.00 W 120 ° 1200 lm No
IP65 BULKHEAD 15W 830 WT R 15.00 W 120 ° 1200 lm No
IP65 BULKHEAD 15W 840 WT OV 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 840 BK OV 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 840 WT R 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 840 BK R 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 865 WT R 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 865 BK OV 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 865 WT OV 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 15W 865 BK R 15.00 W 120 ° 1350 lm No
IP65 BULKHEAD 20W 830 WT OV 20.00 W 120 ° 1600 lm No
IP65 BULKHEAD 20W 830 BK R 20.00 W 120 ° 1600 lm No
IP65 BULKHEAD 20W 830 BK OV 20.00 W 120 ° 1600 lm No
IP65 BULKHEAD 20W 830 WT R 20.00 W 120 ° 1600 lm No
IP65 BULKHEAD 20W 840 BK R 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 840 WT R 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 840 WT OV 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 840 BK OV 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 865 BK R 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 865 WT R 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 865 WT OV 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 20W 865 BK OV 20.00 W 120 ° 1800 lm No
IP65 BULKHEAD 24W 830 WT R 24.00 W 120 ° 2000 lm No
IP65 BULKHEAD 24W 830 BK R 24.00 W 120 ° 2000 lm No
IP65 BULKHEAD 24W 840 WT R 24.00 W 120 ° 2250 lm No
IP65 BULKHEAD 24W 840 BK R 24.00 W 120 ° 2250 lm No
IP65 BULKHEAD 24W 865 WT R 24.00 W 120 ° 2250 lm No
IP65 BULKHEAD 24W 865 BK R 24.00 W 120 ° 2250 lm No


IP65 BULKHEAD 15W 830 BK OV

Product benefits
  • Stylish and modern design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.90
Protection class II

Photometrical data

Luminous flux 1200 lm
Total luminous flux of contained light sources 1350 lm
Luminous efficacy 80 lm/W
Color temperature 3000 K
Color rendering index Ra > 80
Beam angle 120 °

Dimensions & Weight

Length 200.00 mm
Height 45.00 mm
Width 100.00 mm
Product weight 157.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Plastic
Cover material Polypropylene (PP)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of protection IP65
Dimmable No
Mounting type Surface
Application environment Outdoor
LED module replaceable Not replaceable
Product benefits
  • Stylish and modern design
Areas of application
  • Public areas
  • Gardens
  • Pathway lighting
  • Outdoor applications
  • Corridors, stairways, entrance areas
  • Passages, underpasses
Product features
  • Color temperature: 3,000 K, 4,000 K, 6,500 K
  • High luminous efficacy: 90 lm/W
  • Available in 15W, 20W, 24W
  • Type of protection: IP65
  • Impact resistance: IK06

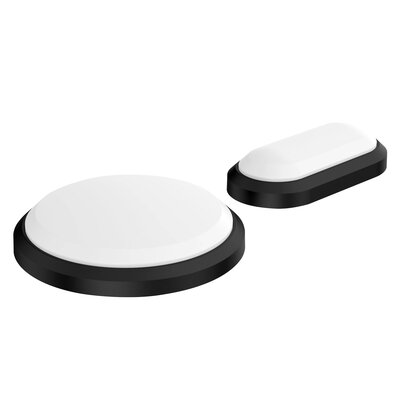

  • Available in round and oval form
  • Color: black or white
  • Polypropylene housing
  • Lifetime: up to 25,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854098932 Folding box
1		 100 mm x 48 mm x 205 mm 211.00 g 0.98 dm³
4099854098949 Shipping box
20		 510 mm x 220 mm x 225 mm 4850.00 g 25.25 dm³

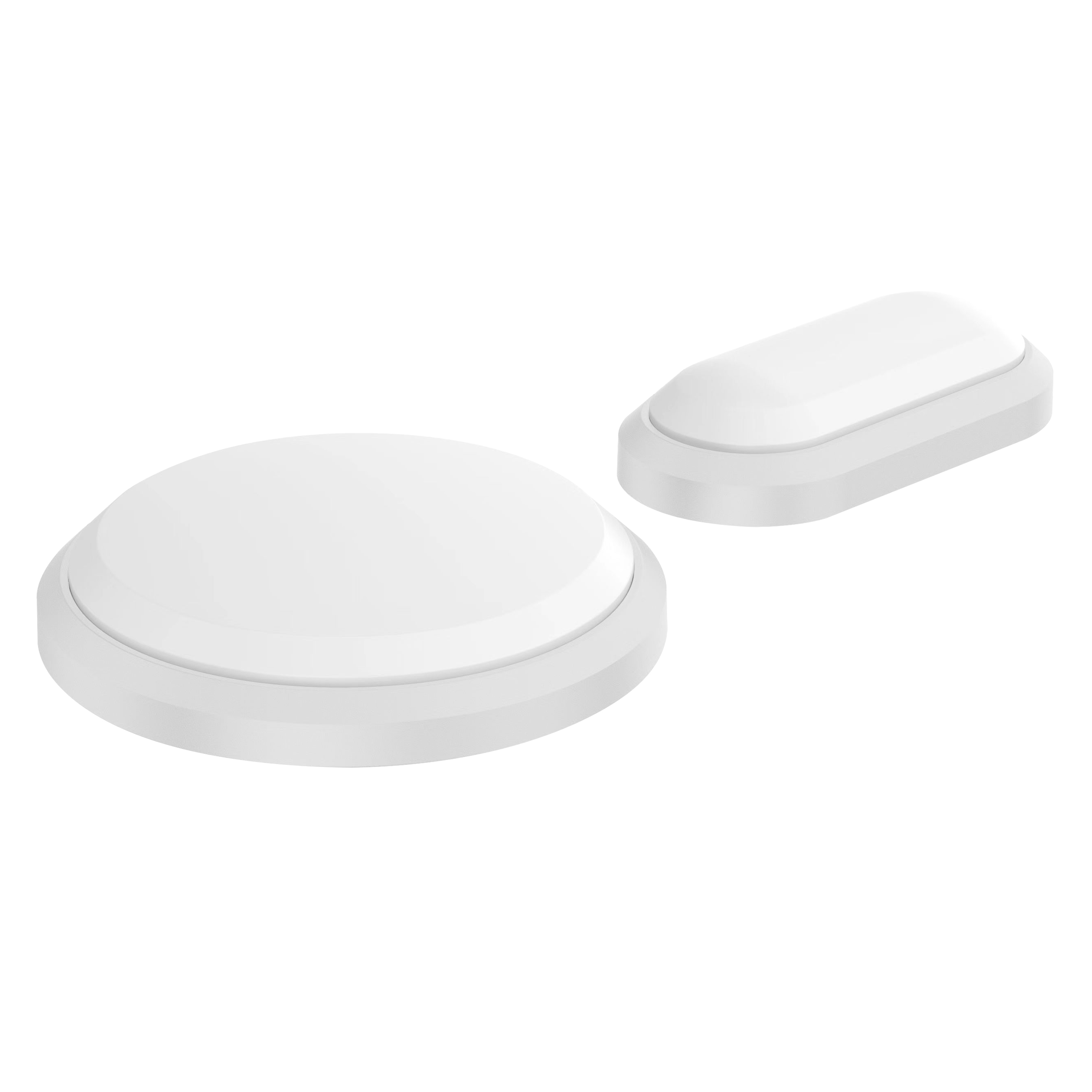

Product Image, Diagonal, White BG
LDECO BH JPG (1.37 MB)
Product Image, Upright, White BG
LDECO BH JPG (1.17 MB)
Product line drawing with numbers
LDECO BH SVG (6.88 KB)
Beauty Shot
LDECO BH JPG (992.31 KB)
EAN AU model number
4099854098932 LDVBHO15W830BLK
