Product description

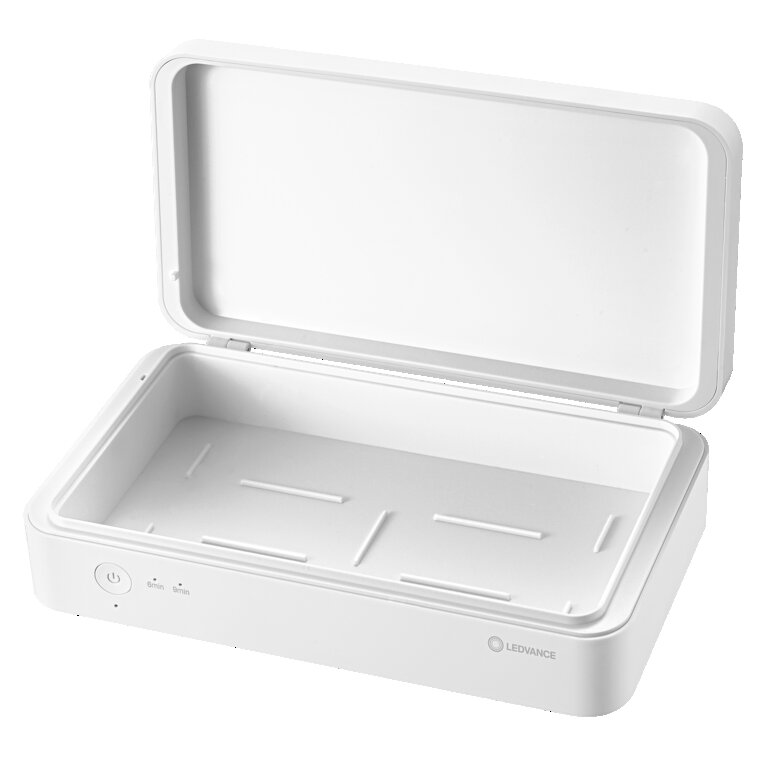

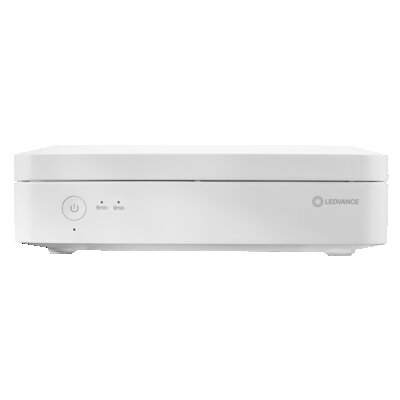

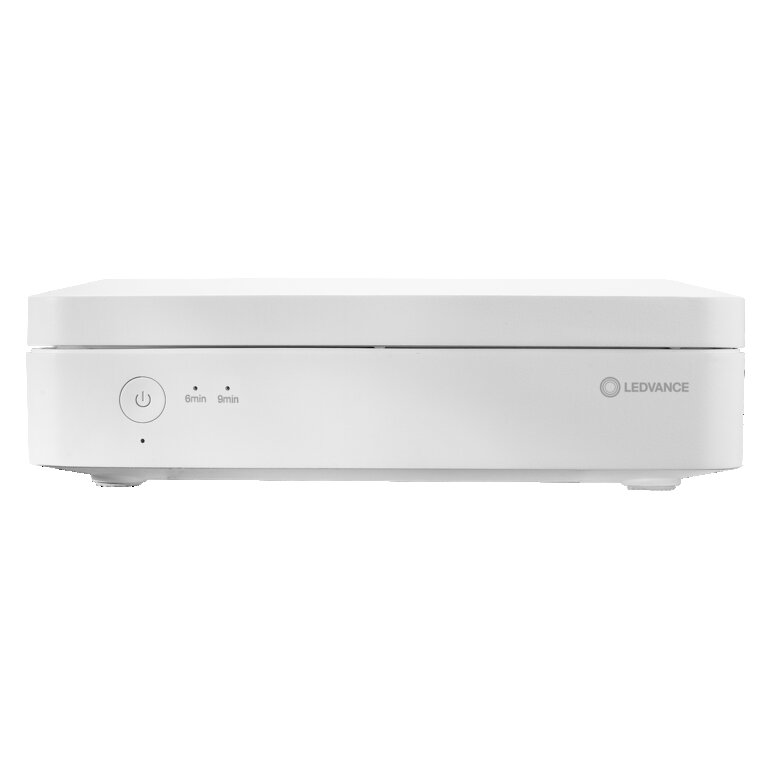

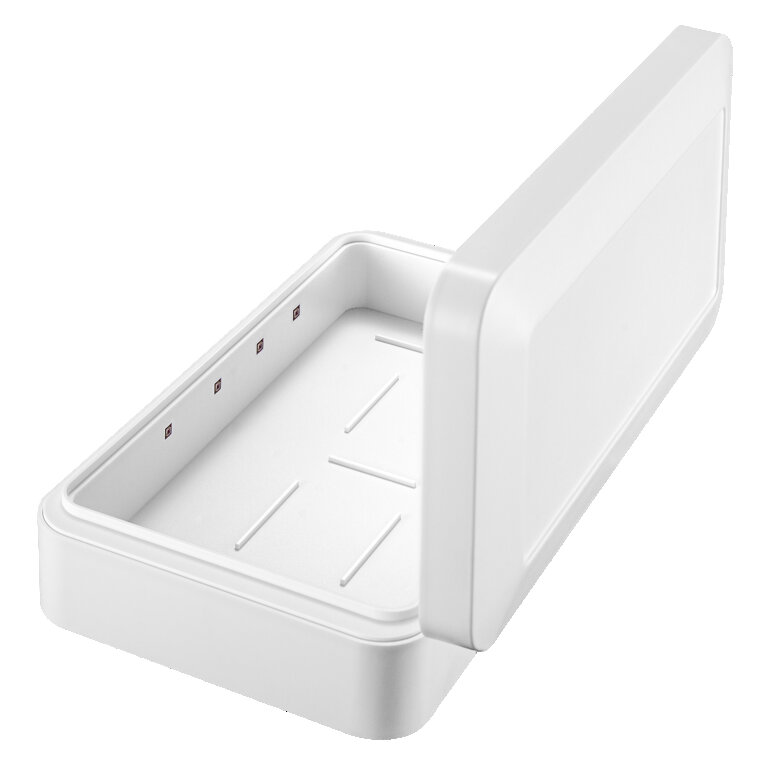

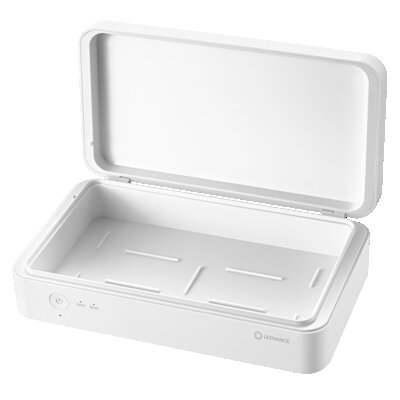

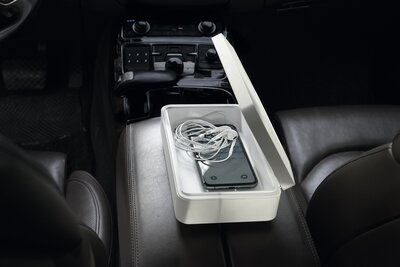

UVC LED DISINFECTION BOX BATTERY UVC LED

UVC LED DISINFECTION BOX BATTERY UVC LED

Product benefits

Reliable, chemical free disinfection by LED UV-C technology
Strong USB rechargeable battery enables mobile use

View all details

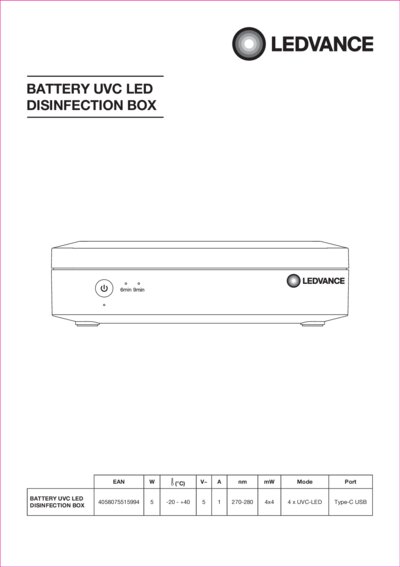

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	5.00 W
Nominal voltage	5 V
Nominal current	1000.000 mA
Power factor λ	> 0.90
Protection class	III
Operating mode	Battery

Photometrical data

Beam angle

120 °

Dimensions & Weight

Length	219.00 mm
Height	63.00 mm
Width	126.00 mm
Product weight	450.00 g
Cable length	1000 mm

Materials & Colors

Product color	White
Housing color	White
Body material	Acrylonitrile butadiene styrene (ABS)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-10…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	USB
Type of protection	IP20
Dimmable	No
Mounting type	Standing
Mounting location	All surfaces
Application environment	Indoor

Lifespan

Lifespan L70/B50 at 25 °C	1000 h
Number of switching cycles	30000

BATTERY

Type of Battery	Lithium ion
Battery size [GMS]	Others
Nominal voltage of battery	3.7 V
Battery charging time	1 h

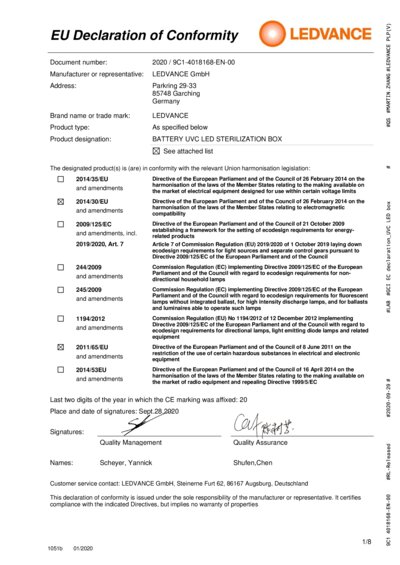

Certificates & Standards

Replaceable light source (EPREL)

Not replaceable

Additional product data

BEG eligible

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Reliable, chemical free disinfection by LED UV-C technology
Strong USB rechargeable battery enables mobile use

Areas of application

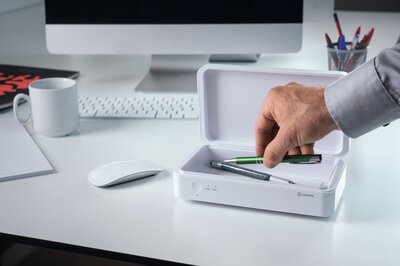

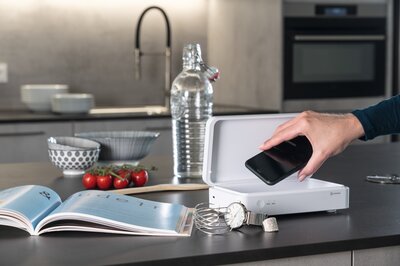

Indoor applications

Product features

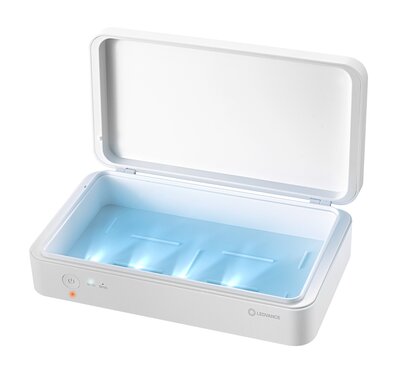

Two disinfection modes – for smooth or rough surfaces
Skin and eye safety guaranteed by auto shut down mechanism when opening the box
Robust, non-slippery and washable housing

Safety advice

Please avoid: Maximal ambient temperature: +35°C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

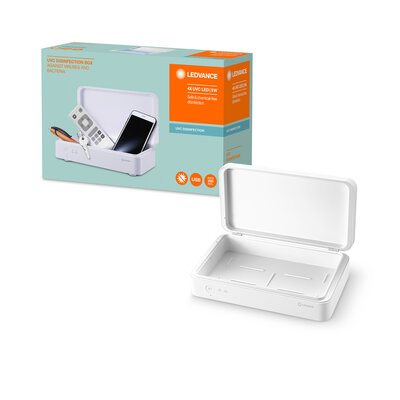

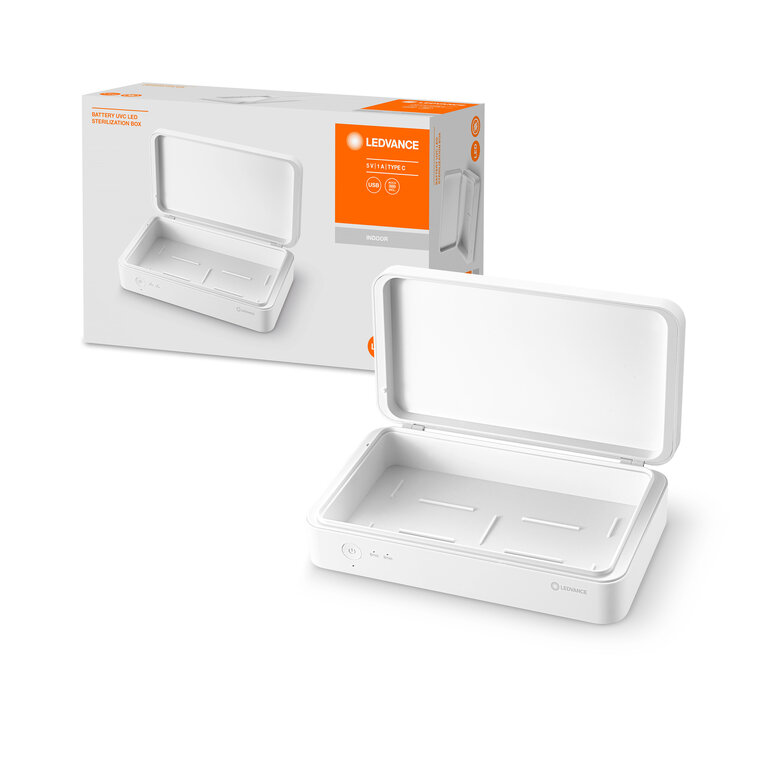

4058075515994	Folding box 1	78 mm x 238 mm x 155 mm	553.00 g	2.88 dm³
4058075516007	Shipping box 6	327 mm x 247 mm x 260 mm	3654.00 g	21.00 dm³

Country-specific information

EAN	SEG number	EFO number	ELDAS number
4058075515994	7507223	5800355	941901990
