Product description

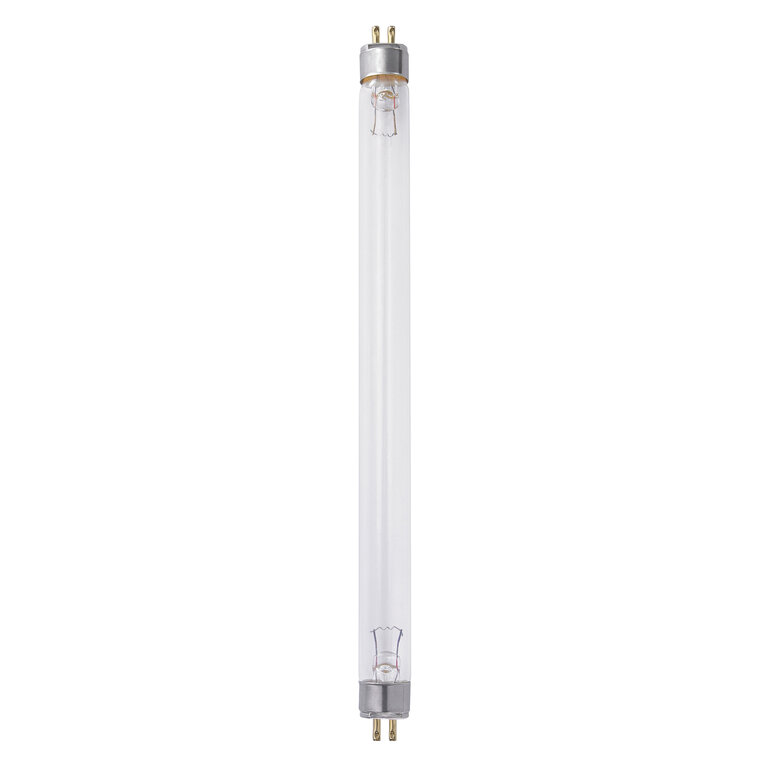

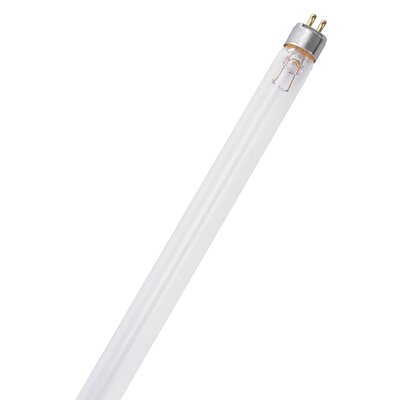

UVC T5 4W G5
UVC T5 6W G5
UVC T5 8W G5
UVC T5 11W G5
UVC T5 16W G5

UVC T5 4W G5

Product benefits

Effective and environment-friendly disinfection without chemicals
Ozone-free
Low mercury content
Long lifetime due to special coating (up to 10,000 h)

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	4 W
Nominal voltage	29 V
Nominal current	170 mA
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz

Photometrical data

Radiated power 200…280 nm (UVC)

0.9 W

Light technical data

Starting time

30.0 s

Dimensions & Weight

Overall length	150.00 mm
Length	150.00 mm
Length with base excl. base pins/connection	136,00 mm
Outer bulb [PICOS]	T16
Diameter	16.00 mm
Tube diameter	16,0 mm
Product weight	14.4 g

Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Lifespan

Nominal lamp life time

7000 h

Additional product data

Base (standard designation)	G5
Mercury content	3.0 mg

Capabilities

Dimmable	No
Burning position	Any

Certificates & Standards

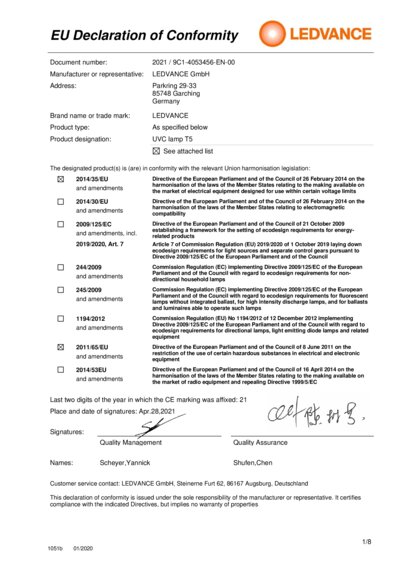

Standards	CE
Photobiological safety group acc. to EN62778	RG3

Country-specific categorizations

Order reference

UVC T5 L 4W G5

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Effective and environment-friendly disinfection without chemicals
Ozone-free
Low mercury content
Long lifetime due to special coating (up to 10,000 h)

Areas of application

Efficient disinfecting of air, water and surfaces

Product features

High UV-C radiance at 254 nm

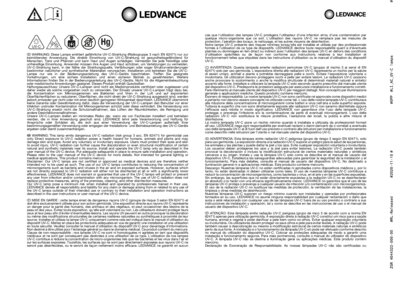

Safety advice

WARNING: This lamp emits dangerous UV-C radiation (risk group 3 acc. EN 62471) for germicidal use only. Direct exposure to UV-C radiation poses a health hazard for humans, animals and plants and may damage skin and eyes. Avoid any voluntary or involuntary exposure. Users must protect their eyes and skin to avoid injury. UV-C radiation can further cause the discoloration or even structural modiﬁcation of certain natural and synthetic materials near its source. Install and operate the UV-C lamp only as described in the user manual of the UV-C device. Put adequate safeguards in place to ensure safe installation and operation. Please refer to the user manual of the UV-C device for more details. Not intended for general lighting or medical applications. This product contains mercury. Disclaimer: Our UV-C lamps are not certiﬁed or approved as medical devices and are therefore neither intended nor to be used as such. The use of our UV-C lamps contributes to reducing the concentration of microorganisms such as bacteria and viruses in the air and on exposed surfaces. However, surfaces which are not directly exposed to UV-C radiation will either not be disinfected at all or with a signiﬁcantly lower effectiveness. LEDVANCE does not warrant or guarantee that use of the UV-C lamps will protect or prevent any user from infection and/or contamination with any microorganism. The use of UV-C radiation does not replace protective measures, airing of the premises, cleaning, and other disinfection measures. Our UV-C lamp pose a minimum risk when installed and operated by professionals trained in their use. LEDVANCE denies all responsibility and liability for any claim or damage arising from or related to any use of the UV-C lamps outside of their intended use or contrary to their installation and operation instructions as described in the user instructions or user manual of the UV-C device.
