Choose your product version
| Product description |
|---|

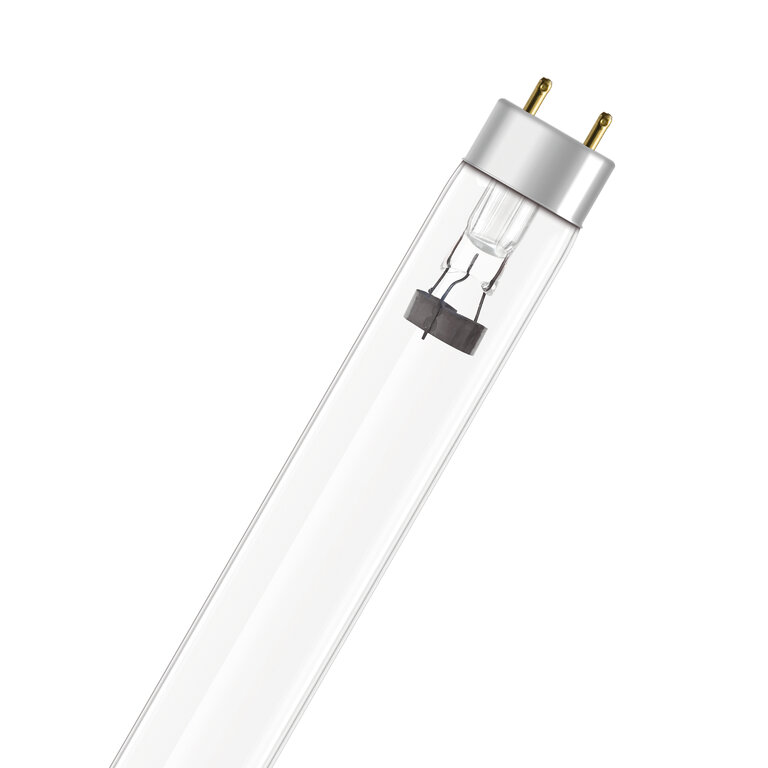

| UVC T8 15 W G13 |
| UVC T8 25 W G13 |
| UVC T8 30 W G13 |
| UVC T8 36 W G13 |
| UVC T8 55 W G13 |
| UVC T8 75 W G13 |
| Nominal wattage | 15 W |
| Nominal voltage | 55 V |
| Nominal current | 310 mA |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Radiated power 200…280 nm (UVC) | 5.1 W |
| Starting time | 30.0 s |
| Overall length | 451.60 mm |
| Length | 451.60 mm |
| Length with base excl. base pins/connection | 436.20 mm |
| Outer bulb [PICOS] | T26 |
| Diameter | 25,5 mm |
| Tube diameter | 25,5 mm |
| Product weight | 70.00 g |
| Ambient temperature range | +10…+50 °C |
| Nominal lamp life time | 10800 h |
| Base (standard designation) | G13 |
| Mercury content | 3.0 mg |
| Dimmable | No |
| Burning position | Any |
| Energy consumption | 15.00 kWh/1000h |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG3 |
| Order reference | UVC T8 15W G13 |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075502604 | Sleeve 1 |
453 mm x 28 mm x 27 mm | 79.00 g | 0.34 dm³ |
| 4058075502611 | Shipping box 25 |
473 mm x 151 mm x 149 mm | 1906.00 g | 10.64 dm³ |
| EAN | STK number |
|---|---|
| 4058075502604 | 4933200 |
