HALOLINE® PRO

HALOLINE PRO

Choose your product version

48 W 230 V R7S

80 W 240 V R7S

120 W 230 V R7S

120 W 240 V R7S

160 W 240 V R7S

230 W 240 V R7S

400 W 240 V R7S

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HALOLINE PRO 48 W 230 V R7S R7s 48 W 230 V 2000 h 700 lm 60 W Yes
HALOLINE PRO 80 W 240 V R7S R7s 80 W 240 V 2000 h 1385 lm Yes
HALOLINE PRO 120 W 230 V R7S R7s 120 W 230 V 2000 h 2245 lm Yes
HALOLINE PRO 120 W 240 V R7S R7s 120 W 240 V 2000 h 2245 lm Yes
HALOLINE PRO 160 W 240 V R7S R7s 160 W 240 V 2000 h 3100 lm 200 W Yes
HALOLINE PRO 230 W 240 V R7S R7s 230 W 240 V 2000 h 5000 lm 300 W Yes
HALOLINE PRO 400 W 240 V R7S R7s 400 W 240 V 2000 h 8750 lm 500 W Yes


HALOLINE PRO 48 W 230 V R7S

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
  • Contains no mercury
View all details

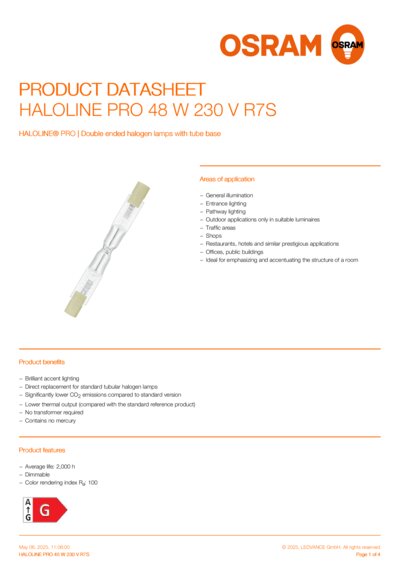

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 48 W
Construction wattage 48.00 W
Nominal voltage 230 V
Claimed equiv. conventional lamp power 60 W

Photometrical data

Luminous flux 700 lm
Luminous efficacy 14 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
UV protection No

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 74.90 mm
Diameter 12.00 mm
Product weight 5.5 g

Additional product data

Base (standard designation) R7s
Mercury-free Yes
Design / version Tube
Product remark Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required, Technical and light values are subject to be changed

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 48.00 kWh/1000h

Country-specific categorizations

ILCOS HDG-48-230-R7s-74,9
Order reference 64684 ECO

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 74.90 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0.444
Chromaticity coordinate y 0.406
Beam angle correspondence SPHERE_360
EPREL ID 714446,1635406
Model number AC35327,AC54063

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
  • Contains no mercury
Areas of application
  • General illumination
  • Entrance lighting
  • Pathway lighting
  • Outdoor applications only in suitable luminaires
  • Traffic areas
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Ideal for emphasizing and accentuating the structure of a room
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321977595 Folding box
1		 87 mm x 18 mm x 21 mm 9.10 g 0.03 dm³
4008321977601 Shipping box
20		 92 mm x 77 mm x 113 mm 223.00 g 0.80 dm³
4099854179280 Shipping box
720		 347 mm x 323 mm x 385 mm 8487.00 g 43.15 dm³
4052899401068 Shipping box
720
Declarations of conformity
Traditional lamp PDF (101.76 KB)
Product Image, Diagonal, White BG
339675_HALOLINE 48W/80 W TIF (31.61 MB)
Product Image, Upright, White BG
339674_HALOLINE 48W/80 W TIF (31.61 MB)
Product line drawing with letters
339687_HALOLINE 48W / 80W SVG (12.2 KB)
Prod.line drw, front, no dimensions
339686_HALOLINE 48W / 80W SVG (8.92 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FC1 U3 HALOLINE 64684 48W 230V R7s JPG (1.03 MB)
Packaging image, frontal
FC1 U3 HALOLINE 64684 48W 230V R7s JPG (828.11 KB)
Packaging image, spacial
FC1 U3 HALOLINE 64684 48W 230V R7s JPG (966.64 KB)
Energy label
EL-4008321977595-AC353 27 PDF (21.75 KB)
Energy label
EL-4008321977595-AC540 63 PDF (21.87 KB)
Logos and Pictos
G left SVG (2.41 KB)
Logos and Pictos
G left BW SVG (1.07 KB)
Logos and Pictos
G right SVG (2.4 KB)
Logos and Pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349635_HAL_ohne_UVS PNG (104.62 KB)
EAN SEG number STK number ELDAS number
4008321977595 8327712 4730115 940306173
