HALOLINE® PRO

HALOLINE PRO

Choose your product version

48 W 230 V R7S

48 W 240 V R7S

80 W 240 V R7S

80 W 230 V R7S

120 W 240 V R7S

120 W 230 V R7S

120 W 230 V R7S

120 W 240 V R7S

400 W 240 V R7S

400 W 230 V R7S

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HALOLINE PRO 48 W 230 V R7S R7s 48 W 230 V 2000 h 700 lm 60 W Yes
HALOLINE PRO 48 W 240 V R7S R7s 48 W 240 V 2000 h 750 lm 60 W Yes
HALOLINE PRO 80 W 240 V R7S R7s 80 W 240 V 2000 h 1385 lm Yes
HALOLINE PRO 80 W 230 V R7S R7s 80 W 230 V 2000 h 1385 lm Yes
HALOLINE PRO 120 W 240 V R7S R7s 120 W 240 V 2000 h 2245 lm Yes
HALOLINE PRO 120 W 230 V R7S R7s 120 W 230 V 2000 h 2245 lm Yes
HALOLINE PRO 120 W 230 V R7S R7s 120 W 230 V 2000 h 2245 lm Yes
HALOLINE PRO 120 W 240 V R7S R7s 120 W 240 V 2000 h 2245 lm Yes
HALOLINE PRO 400 W 240 V R7S R7s 400 W 240 V 2000 h 8750 lm 500 W Yes
HALOLINE PRO 400 W 230 V R7S R7s 400 W 230 V 2000 h 8750 lm 500 W Yes


HALOLINE PRO 120 W 230 V R7S

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
  • Contains no mercury
View all details

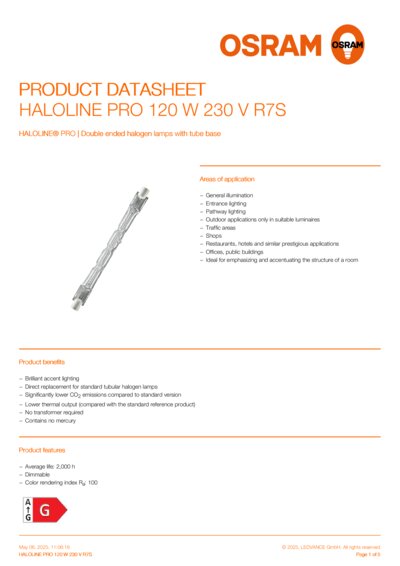

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 120 W
Construction wattage 120.00 W
Nominal voltage 230 V
Nominal current 0.52 A

Photometrical data

Luminous flux 2245 lm
Luminous efficacy 18 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 100
Light color 1030
UV protection No

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 118.00 mm
Diameter 12.00 mm
Product weight 7.2 g

Lifespan

Lifespan L70/B50 at 25 °C 2000 h

Additional product data

Base (standard designation) R7s
Mercury-free Yes
Design / version Tube
Product remark Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required, Technical and light values are subject to be changed

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 120.00 kWh/1000h

Country-specific categorizations

ILCOS HDG-120-230-R7s-114,2
Order reference 64696 ECO

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power 0 W
Networked standby power for CLS not applicable
Claim of equivalent power No
Length 118.00 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0,437
Chromaticity coordinate y 0,404
Beam angle correspondence SPHERE_360
Displacement factor 1
EPREL ID 714434,1554002
Model number AC35303,AC51810
Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
  • Contains no mercury
Areas of application
  • General illumination
  • Entrance lighting
  • Pathway lighting
  • Outdoor applications only in suitable luminaires
  • Traffic areas
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Ideal for emphasizing and accentuating the structure of a room
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321977670 Folding box
1		 20 mm x 21 mm x 136 mm 15.00 g 0.06 dm³
4008321977687 Shipping box
20		 142 mm x 111 mm x 90 mm 278.00 g 1.42 dm³
4058075308695 Shipping box
15		 93 mm x 71 mm x 128 mm 328.00 g 0.85 dm³
4099854147708 Shipping box
720		 440 mm x 347 mm x 385 mm 10342.00 g 58.78 dm³
4058075308701 Shipping box
60		 195 mm x 148 mm x 133 mm 1459.00 g 3.84 dm³
4052899401280 Shipping box
720
Declarations of conformity
Traditional lamp PDF (276.75 KB)
Product Image, Diagonal, White BG
324591_HALOLINE FOR MA INS VOLTAGE TIF (4.41 MB)
Product line drawing with letters
620_HALOLINE SVG (7.18 KB)
Prod.line drw, front, no dimensions
325064_HALOLINE FOR PO WER SUPPLY VOLTAGE SVG (4.5 KB)

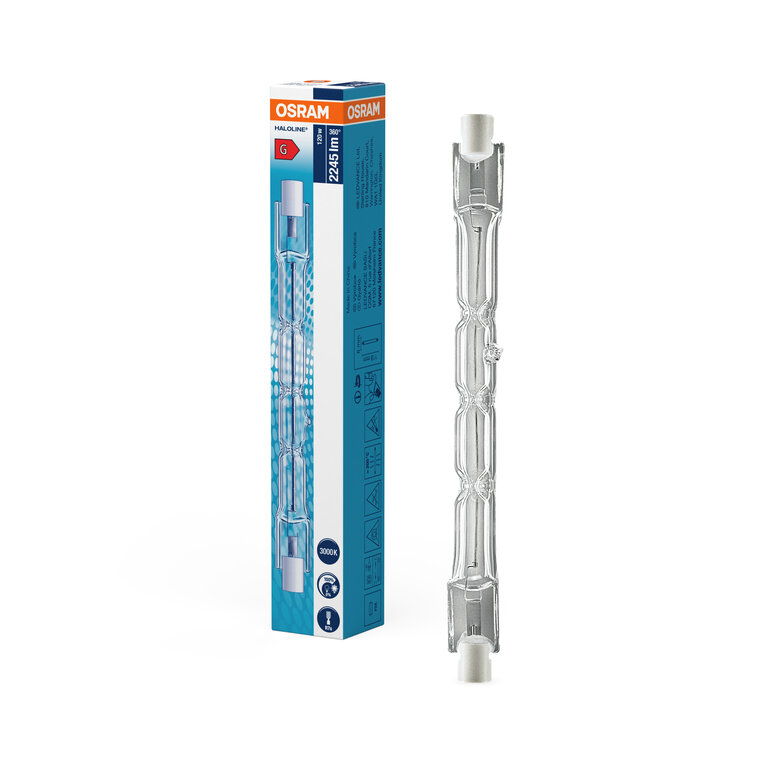

Combo Shot = Product Beauty Shot + Packaging Image
U3 HALOLINE 64696 118W 230V R7s JPG (1.05 MB)

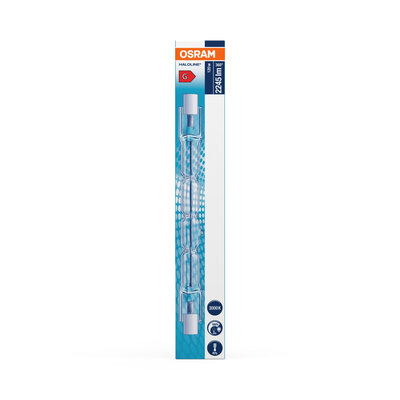

Packaging image, frontal
U3 HALOLINE 64696 118W 230V R7s JPG (776.67 KB)

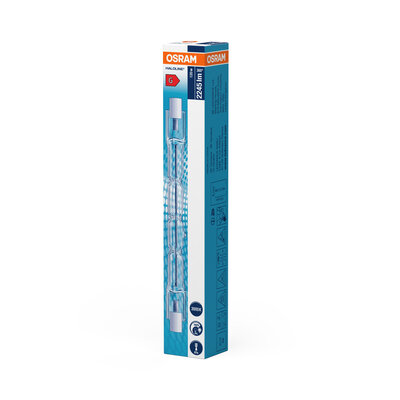

Packaging image, spacial
U3 HALOLINE 64696 118W 230V R7s JPG (884.43 KB)
Energy label
EL-4008321977670-AC353 03 PDF (21.46 KB)
Energy label
EL-4008321977670-AC518 10 PDF (21.31 KB)
Logos and Pictos
G left SVG (2.41 KB)
Logos and Pictos
G left BW SVG (1.07 KB)
Logos and Pictos
G right SVG (2.4 KB)
Logos and Pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349635_HAL_ohne_UVS PNG (104.62 KB)
EAN SEG number STK number ELDAS number
4008321977670 8327716 4730116 940306176
