HALOPIN® Standard

HALOPIN Standard

Choose your product version

25 W 230 V G9

25 W 240 V G9

25 W 230 V G9 FR

40 W 230 V G9

40 W 240 V G9

40 W 240 V G9

60 W 230 V G9

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Dimmable
HALOPIN 25 W 230 V G9	G9	25 W	230 V	1000 h	230 lm	Yes
HALOPIN 25 W 240 V G9	G9	25 W	240 V	1000 h	230 lm	Yes
HALOPIN 25 W 230 V G9 FR	G9	25 W	230 V	2000 h	230 lm	Yes
HALOPIN 40 W 230 V G9	G9	40 W	230 V	1000 h	420 lm	Yes
HALOPIN 40 W 240 V G9	G9	40 W	240 V	1000 h	420 lm	Yes
HALOPIN 40 W 240 V G9	G9	40 W	240 V	2000 h	490 lm	Yes
HALOPIN 60 W 230 V G9	G9	60 W	230 V	2000 h	820 lm	Yes

HALOPIN 25 W 230 V G9

Product benefits

Brilliant accent light
Incredibly small dimensions for revolutionary new luminaire designs
Robust filament design thanks to innovative, unique bulb pinch technology
Approved for use in open luminaires (to IEC 60598-1)
Simple handling thanks to G9 plug-in base/holder system
No transformer required
UV filter
Complies with IEC 60432-3 thanks to integrated fuse function
The lamp shuts down reliably
Contains no mercury

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	25 W
Construction wattage	25.00 W
Nominal voltage	230 V

Photometrical data

Luminous flux	230 lm
Luminous efficacy	9 lm/W
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	100
Light color	1027

Light technical data

Starting time

0 s

Dimensions & Weight

Overall length	43.00 mm
Diameter	14.00 mm
Product weight	3.00 g

Additional product data

Base (standard designation)	G9
Mercury-free	Yes
Design / version	Tube

Capabilities

Dimmable	Yes
Burning position	Any

Country-specific categorizations

Order reference

66825 25W 230V

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	G9
Length	43.00 mm
Height	14.00 mm
Width	14.00 mm

Product description

Product benefits

Brilliant accent light
Incredibly small dimensions for revolutionary new luminaire designs
Robust filament design thanks to innovative, unique bulb pinch technology
Approved for use in open luminaires (to IEC 60598-1)
Simple handling thanks to G9 plug-in base/holder system
No transformer required
UV filter
Complies with IEC 60432-3 thanks to integrated fuse function
The lamp shuts down reliably
Contains no mercury

Areas of application

General illumination
Workplace lighting
Lighting for reading
Dining table lighting
Mirror lighting
Accent lighting
Mood lighting

Product features

Average life: 2,000 h
Dimmable
Color rendering index R_a: 100
Design: two lengths 43 mm (short), 51 mm (long)
Base: G9
Color temperature: 2,700 K

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4008321329844	Folding box 1	25 mm x 23 mm x 70 mm	6.00 g	0.04 dm³
4008321329851	Bundle 10	115 mm x 50 mm x 70 mm	60.00 g	0.40 dm³
4008321329868	Shipping box 200	272 mm x 238 mm x 155 mm	1453.00 g	10.03 dm³

Product images and graphics

Product Image, Diagonal, White BG

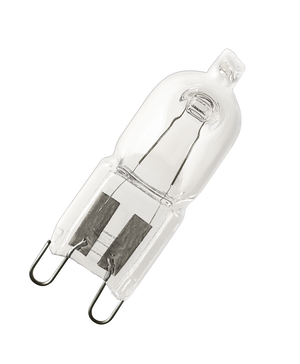

324594_HALOPIN COMPACT CLEAR TIF (5.44 MB)

Prod.line drw, front, no dimensions
40665_HALOPIN SVG (5.17 KB)
