HALOPIN® Standard

HALOPIN Standard

Choose your product version

25 W 230 V G9

25 W 240 V G9

25 W 230 V G9 FR

40 W 230 V G9

40 W 240 V G9

40 W 240 V G9

60 W 230 V G9

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Dimmable
HALOPIN 25 W 230 V G9	G9	25 W	230 V	1000 h	230 lm	Yes
HALOPIN 25 W 240 V G9	G9	25 W	240 V	1000 h	230 lm	Yes
HALOPIN 25 W 230 V G9 FR	G9	25 W	230 V	2000 h	230 lm	Yes
HALOPIN 40 W 230 V G9	G9	40 W	230 V	1000 h	420 lm	Yes
HALOPIN 40 W 240 V G9	G9	40 W	240 V	1000 h	420 lm	Yes
HALOPIN 40 W 240 V G9	G9	40 W	240 V	2000 h	490 lm	Yes
HALOPIN 60 W 230 V G9	G9	60 W	230 V	2000 h	820 lm	Yes

HALOPIN 25 W 230 V G9 FR

Product benefits

Brilliant accent light
Incredibly small dimensions for revolutionary new luminaire designs
Robust filament design thanks to innovative, unique bulb pinch technology
Approved for use in open luminaires (to IEC 60598-1)
Simple handling thanks to G9 plug-in base/holder system
No transformer required
UV filter
Complies with IEC 60432-3 thanks to integrated fuse function
The lamp shuts down reliably
Contains no mercury

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	25 W
Construction wattage	25.00 W
Nominal voltage	230 V
Power factor λ	1.00

Photometrical data

Luminous flux	230 lm
Luminous efficacy	9 lm/W
Lumen main.fact.at end of nom.life time	0.80
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	100
Light color	1027

Light technical data

Warm-up time (60 %)	0.00 s
Starting time	0.0 s

Dimensions & Weight

Overall length	42.50 mm
Light center length (LCL)	22,0 mm ¹⁾
Diameter	14.00 mm
Maximum diameter	14 mm
Product weight	3.4 g

¹⁾ Without cable

Lifespan

Number of switching cycles

1000000

Additional product data

Base (standard designation)	G9
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Tube
Product remark	Banned from 1.9.2009 as per EU phase-out plan

Capabilities

Dimmable	Yes
Burning position	Any

Country-specific categorizations

ILCOS	HSGST/F/UB-25-230-G9-22
Order reference	66725 AM 25W 23

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	G9
Length	43.00 mm
Height	14.00 mm
Width	14.00 mm

Product description

Product benefits

Brilliant accent light
Incredibly small dimensions for revolutionary new luminaire designs
Robust filament design thanks to innovative, unique bulb pinch technology
Approved for use in open luminaires (to IEC 60598-1)
Simple handling thanks to G9 plug-in base/holder system
No transformer required
UV filter
Complies with IEC 60432-3 thanks to integrated fuse function
The lamp shuts down reliably
Contains no mercury

Areas of application

General illumination
Workplace lighting
Lighting for reading
Dining table lighting
Mirror lighting
Accent lighting
Mood lighting

Product features

Average life: 2,000 h
Dimmable
Color rendering index R_a: 100
Design: two lengths 43 mm (short), 51 mm (long)
Base: G9
Color temperature: 2,700 K

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4008321525857	Folding box 1	25 mm x 23 mm x 70 mm	5.40 g	0.04 dm³
4008321525864	Shipping box 20	144 mm x 55 mm x 118 mm	135.00 g	0.93 dm³

Product images and graphics

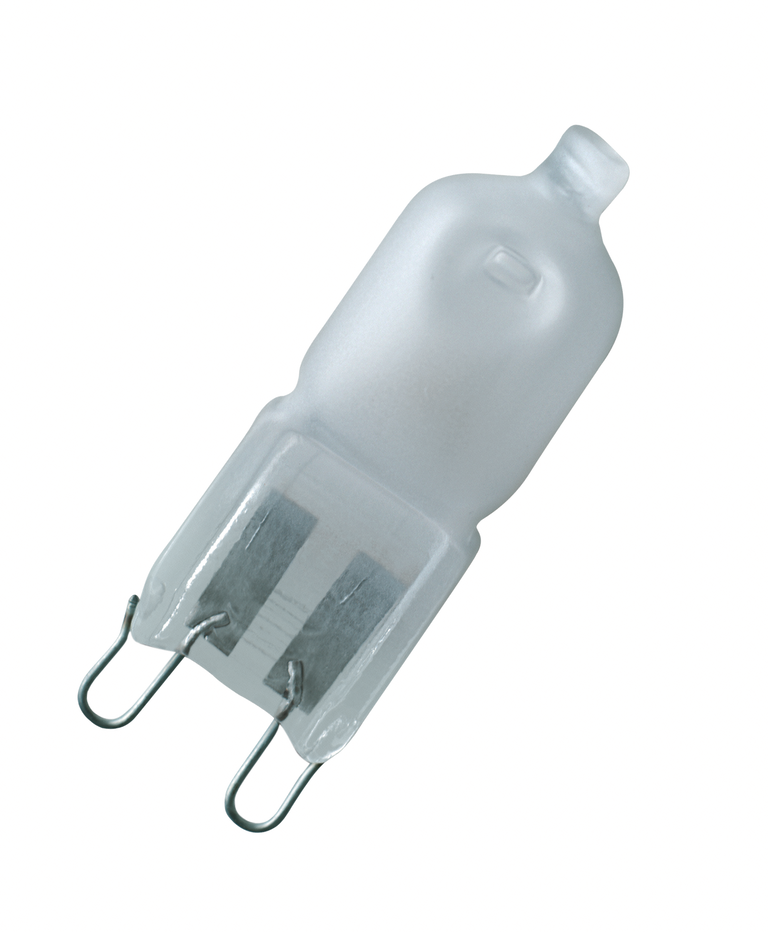

Product Image, Diagonal, White BG
324593_HALOPIN COMPACT FROSTED TIF (22.96 MB)

Product line drawing with letters
584_HALOPIN FROSTED SVG (6.76 KB)

Product line drawing with letters
329808_HALOPIN FR G9 SVG (8.71 KB)

Prod.line drw, front, no dimensions
329807_HALOPIN FR G9 SVG (5.57 KB)
