Professional
HALOGEN CLASSIC A

HALOGEN CLASSIC A

Choose your product version

46 W 240 V B22D

46 W 240 V B22D

46 W 240 V E27

46 W 240 V E27

57 W 240 V B22d

57 W 240 V B22D

57 W 240 V E27

57 W 240 V E27

77 W 240 V B22D

77 W 240 V E27

77 W 240 V E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm Yes
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 57 W 240 V B22d B22d 57 W 240 V 2000 h 915 lm
HAL CL A 57 W 240 V B22D B22d 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 77 W 240 V B22D B22d 77 W 240 V 2000 h 1320 lm 100 W Yes
HAL SST CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm
HAL CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm 100 W Yes


HAL CL A 46 W 240 V B22D

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 46 W
Construction wattage 46.00 W
Nominal voltage 240 V
Claimed equiv. conventional lamp power 60 W
Power factor λ 1.00

Photometrical data

Luminous flux 700 lm
Luminous efficacy 15 lm/W
Lumen main.fact.at end of nom.life time 0.80
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Warm-up time (60 %) 0.00 s
Starting time 0.0 s

Dimensions & Weight

Overall length 96.00 mm
Light center length (LCL) 73,0 mm
Diameter 55.00 mm
Maximum diameter 56 mm
Product weight 31.00 g

Lifespan

Number of switching cycles 50000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Bulb

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class D
Energy consumption 46.00 kWh/1000h

Country-specific categorizations

ILCOS HSGSA/C/UB-46-240-B22D-73
Order reference 64543 A ECO SST

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 93.00 mm
Height 55.00 mm
Width 55.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
Areas of application
  • General illumination
  • Mood lighting
  • Entrance lighting
  • Restaurants, hotels and similar prestigious applications
Product features
  • 100 % dimmable
  • Perfect color rendering (Ra: 100)
  • Average life: 2,000 h
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321919083 Folding box
1		 97 mm x 56 mm x 56 mm 40.00 g 0.30 dm³
4008321276827 Shipping box
20		 286 mm x 105 mm x 234 mm 910.00 g 7.03 dm³

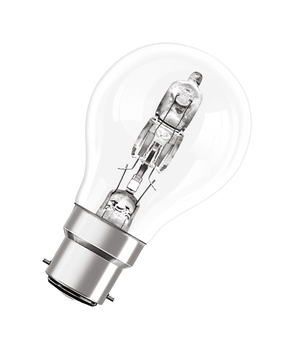

Product Image, Diagonal, White BG
324221_HALOGEN CLASSIC A 42W 240V B22d TIF (8.59 MB)
Product line drawing with letters
329835_HALOGEN CLASSIC A B22d SVG (12.6 KB)
Packaging image, frontal
CLASSIC A 64543 46W 24 0V B22d MiF Front TIF (3.39 MB)
Packaging image, spacial
CLASSIC A 64543 46W 24 0V B22d MiF Side TIF (7.36 MB)
Spectral power distribution
349634_HAL_HV_AK SVG (32.09 KB)
EAN SEG number AU model number
4008321919083 8327138 OSR64543AES46WBC
