Professional
HALOGEN CLASSIC A

HALOGEN CLASSIC A

Choose your product version

46 W 240 V B22D

46 W 240 V B22D

46 W 240 V E27

46 W 240 V E27

57 W 240 V B22d

57 W 240 V B22D

57 W 240 V E27

57 W 240 V E27

77 W 240 V B22D

77 W 240 V E27

77 W 240 V E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm
HAL CL A 46 W 240 V B22D B22d 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm 60 W Yes
HAL CL A 46 W 240 V E27 E27 46 W 240 V 2000 h 700 lm
HAL CL A 57 W 240 V B22d B22d 57 W 240 V 2000 h 915 lm
HAL CL A 57 W 240 V B22D B22d 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm 75 W Yes
HAL CL A 57 W 240 V E27 E27 57 W 240 V 2000 h 915 lm
HAL CL A 77 W 240 V B22D B22d 77 W 240 V 2000 h 1320 lm 100 W Yes
HAL CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm 100 W Yes
HAL SST CL A 77 W 240 V E27 E27 77 W 240 V 2000 h 1320 lm


HAL CL A 46 W 240 V E27

Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 46 W
Construction wattage 46.00 W
Nominal voltage 240 V

Photometrical data

Luminous flux 700 lm
Luminous efficacy 15 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 97.00 mm
Light center length (LCL) 73,0 mm
Diameter 55.00 mm
Product weight 25.2 g

Additional product data

Base (standard designation) E27
Mercury-free Yes
Design / version Bulb

Capabilities

Burning position Any

Country-specific categorizations

ILCOS HSGSA/F/UB-46-240-E27-73
Order reference 64543 A FR ECO SST

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 94.00 mm
Height 55.00 mm
Width 55.00 mm
Product benefits
  • Simple direct replacement for conventional incandescent lamps
  • The same pleasant quality of light as that of an incandescent lamp
  • Instant 100 % light, no warm-up time
  • Contains no mercury
  • UV filter
Areas of application
  • General illumination
  • Mood lighting
  • Entrance lighting
  • Restaurants, hotels and similar prestigious applications
Product features
  • 100 % dimmable
  • Perfect color rendering (Ra: 100)
  • Average life: 2,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321229380 Folding box
1		 97 mm x 56 mm x 56 mm 34.00 g 0.30 dm³
4008321229397 Shipping box
20		 286 mm x 105 mm x 234 mm 790.00 g 7.03 dm³

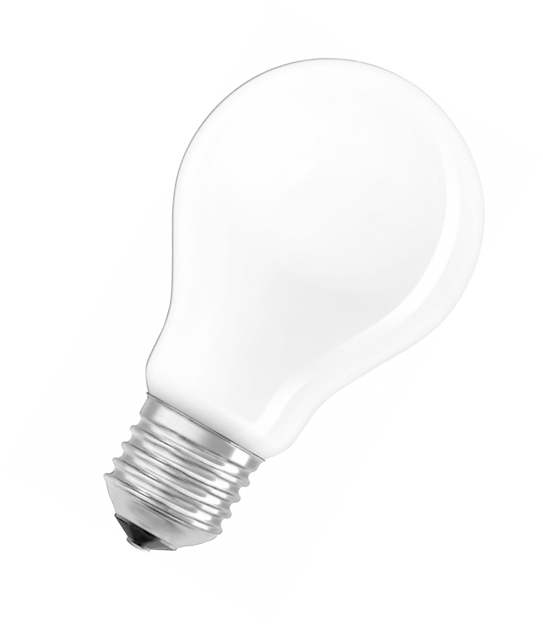

Product Image, Diagonal, White BG
323685_HALOGEN ENERGY SAVER - HALOLUX CLASSI C A FROSTED TIF (350.14 KB)
Product line drawing with letters
329837_HALOGEN CLASSIC A FR B22d SVG (7.77 KB)
EAN AU model number
4008321229380 OSR64543AESFRE2746W
