Professional
LED VALUE CLASSIC A

LED VALUE CLASSIC A

Choose your product version

4.9 W/2700 K B22d

4.9 W/2700 K E27

4.9 W/6500 K B22d

4.9 W/6500 K E27

7 W/3000 K E27 GEN2

7 W/4000 K E27 GEN2

7 W/6500 K E27 GEN2

8.5 W/2700 K B22d GEN4

8.5 W/2700 K E27 GEN4

8.5 W/4000 K E27 GEN4

8.5 W/6500 K B22d GEN4

8.5 W/6500 K E27 GEN4

8.5 W/3000 K E27 GEN2

8.5 W/4000 K E27 GEN2

8.5 W/6500 K E27 GEN2

9 W/4000 K E27 GEN2

9 W/6500 K E27 GEN2

10 W/2700 K E27 GEN4

10 W/4000 K E27 GEN4

10 W/6500 K E27 GEN4

12 W/3000 K E27 GEN2

12 W/4000 K E27 GEN2

12 W/6500 K E27 GEN2

12 W/3000 K E27 GEN2

12 W/4000 K E27 GEN2

12 W/6500 K E27 GEN2

12 W/4000 K E27

13 W/2700 K E27 GEN4

13 W/4000 K E27 GEN4

13 W/6500 K E27 GEN4

14 W/4000 K E27

15 W/3000 K E27 GEN2

15 W/4000 K E27 GEN2

15 W/6500 K E27 GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS A 4.9 W/2700 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 4.9 W/2700 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 4.9 W/6500 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 4.9 W/6500 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS A 7 W/3000 K E27 GEN2 E27 7 W 100…240 V 25000 h 600 lm 50 W 200 ° No
LED VALUE CLAS A 7 W/4000 K E27 GEN2 E27 7 W 100…240 V 25000 h 600 lm 50 W 200 ° No
LED VALUE CLAS A 7 W/6500 K E27 GEN2 E27 7 W 100…240 V 25000 h 600 lm 50 W 200 ° No
LED VALUE CLAS A 8.5 W/2700 K B22d GEN4 B22d 8.5 W 220…240 V 15000 h 806 lm 60 W 180 ° No
LED VALUE CLAS A 8.5 W/2700 K E27 GEN4 E27 8.5 W 220…240 V 15000 h 806 lm 60 W 180 ° No
LED VALUE CLAS A 8.5 W/4000 K E27 GEN4 E27 8.5 W 220…240 V 15000 h 806 lm 60 W 180 ° No
LED VALUE CLAS A 8.5 W/6500 K B22d GEN4 B22d 8.5 W 220…240 V 15000 h 806 lm 60 W 180 ° No
LED VALUE CLAS A 8.5 W/6500 K E27 GEN4 E27 8.5 W 220…240 V 15000 h 806 lm 60 W 180 ° No
LED VALUE CLAS A 8.5 W/3000 K E27 GEN2 E27 8.5 W 100…240 V 25000 h 1018 lm 75 W 200 ° No
LED VALUE CLAS A 8.5 W/4000 K E27 GEN2 E27 8.5 W 100…240 V 25000 h 1018 lm 75 W 200 ° No
LED VALUE CLAS A 8.5 W/6500 K E27 GEN2 E27 8.5 W 100…240 V 25000 h 1018 lm 75 W 200 ° No
LED VALUE CLAS A 9 W/4000 K E27 GEN2 E27 9 W 100…240 V 25000 h 806 lm 60 W 200 ° No
LED VALUE CLAS A 9 W/6500 K E27 GEN2 E27 9 W 100…240 V 25000 h 806 lm 60 W 200 ° No
LED VALUE CLAS A 10 W/2700 K E27 GEN4 E27 10 W 220…240 V 15000 h 1055 lm 75 W 180 ° No
LED VALUE CLAS A 10 W/4000 K E27 GEN4 E27 10 W 220…240 V 15000 h 1055 lm 75 W 180 ° No
LED VALUE CLAS A 10 W/6500 K E27 GEN4 E27 10 W 220…240 V 15000 h 1055 lm 75 W 180 ° No
LED VALUE CLAS A 12 W/3000 K E27 GEN2 E27 12 W 100…240 V 25000 h 1055 lm 75 W 200 ° No
LED VALUE CLAS A 12 W/4000 K E27 GEN2 E27 12 W 100…240 V 25000 h 1055 lm 75 W 200 ° No
LED VALUE CLAS A 12 W/6500 K E27 GEN2 E27 12 W 100…240 V 25000 h 1055 lm 75 W 200 ° No
LED VALUE CLAS A 12 W/3000 K E27 GEN2 E27 12 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 12 W/4000 K E27 GEN2 E27 12 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 12 W/6500 K E27 GEN2 E27 12 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 12 W/4000 K E27 E27 12 W 100…240 V 15000 h 1560 lm 100 W 220 ° No
LED VALUE CLAS A 13 W/2700 K E27 GEN4 E27 13 W 220…240 V 15000 h 1521 lm 100 W 180 ° No
LED VALUE CLAS A 13 W/4000 K E27 GEN4 E27 13 W 220…240 V 15000 h 1521 lm 100 W 180 ° No
LED VALUE CLAS A 13 W/6500 K E27 GEN4 E27 13 W 220…240 V 15000 h 1521 lm 100 W 180 ° No
LED VALUE CLAS A 14 W/4000 K E27 E27 14 W 100…240 V 15000 h 1820 lm 125 W 180 ° No
LED VALUE CLAS A 15 W/3000 K E27 GEN2 E27 15 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 15 W/4000 K E27 GEN2 E27 15 W 100…240 V 25000 h 1521 lm 100 W 200 ° No
LED VALUE CLAS A 15 W/6500 K E27 GEN2 E27 15 W 100…240 V 25000 h 1521 lm 100 W 200 ° No


LED VALUE CLAS A 12 W/3000 K E27 GEN2

Product benefits
  • No “Blue Light” Hazard (according to IEC 62471)
  • Photobiological safety according to IEC 62471, risk group RG0
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 100 W
Nominal current 99 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.70

Photometrical data

Luminous flux 1521 lm
Nominal useful luminous flux 90° 1521 lm
Luminous efficacy 126 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 120.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 34.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LVCLAH 12W/8301

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 120.00 mm
Height 60.00 mm
Width 60.00 mm
Product benefits
  • No “Blue Light” Hazard (according to IEC 62471)
  • Photobiological safety according to IEC 62471, risk group RG0
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075656154 Folding box
1		 61 mm x 61 mm x 125 mm 58.00 g 0.47 dm³
4058075656161 Shipping box
10		 315 mm x 132 mm x 139 mm 708.00 g 5.78 dm³
4099854021152 Shipping box
10		 315 mm x 132 mm x 136 mm 600.00 g 5.65 dm³

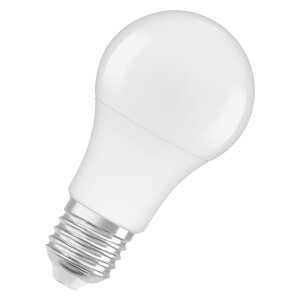

Product Image, Diagonal with OSRAM LOGO, White BG
LED VALUE CLAS A100_A7 5 E27 FR E27 JPG (1.21 MB)
Product Image, Upright with Osram LOGO, White BG
LED VALUE CLAS A100_A7 5 E27 FR E27 JPG (1.09 MB)
Product line drawing with letters
SMART+ CLA E27 SVG (9.69 KB)
